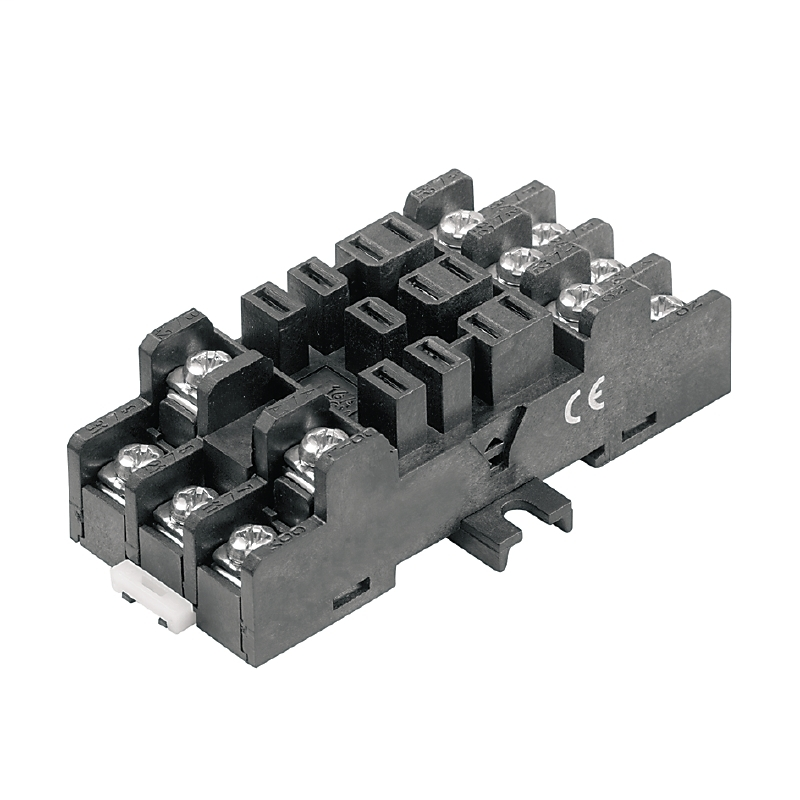

Weidmuller 8697680000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Weidmuller 8697680000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- CE
- ROHS
- Conform
Classifications
- eClass 5.1
- 27-37-16-03
- eClass 6.2
- 27-37-16-03
- eClass 7.1
- 27-37-16-03
- eClass 8.1
- 27-37-16-03
- eClass 9.0
- 27-37-16-03
- eClass 9.1
- 27-37-16-03
- ETIM 3.0
- EC001456
- ETIM 4.0
- EC001456
- ETIM 5.0
- EC001456
- ETIM 6.0
- EC001456
- UNSPSC
- 30-21-19-17
Connection Data
- Blade size
- Gr. PH2
- Clamping range, rated connection
- 2.5 mm²
- Clamping range, rated connection, max.
- 2.5 mm²
- Clamping range, rated connection, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 2.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
- Tightening torque, max.
- 1.2 Nm
- Tightening torque, min.
- 0.8 Nm
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection method
- Screw connection
- Wire cross-section, finely stranded, two clampable wires, max.
- 2.5 mm²
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Contact Data
- Contact type
- 3 CO contact
Dimensions And Weights
- Depth
- 26.5 mm
- Depth (inches)
- 1.043 inch
- Height
- 85 mm
- Height (inches)
- 3.346 inch
- Net weight
- 68.83 g
- Width
- 35.5 mm
- Width (inches)
- 1.398 inch
General Data
- Mounting rail
- TS 35
General Ordering Data
- GTIN (EAN)
- 4032248369515
- Order No.
- 8697680000
- Qty.
- 25 pc(s).
- Type
- SPW 3CO
- Version
- RIDERSERIES RPW, Relay base, No. of contacts: 3 CO contact, Continuous current: 16 A, Screw connection
Input
- Rated current AC
- 16 A
Insulation Coordination
- Art der Isolation benachbarte Kontakte
- Basisisolierung
- Art der Isolation Eingang - Ausgang
- Basisisolierung
- Creepage and clearance distance input – output
- ≥ 4 mm
- Dielectric strength input – output
- 2.5 KV
- / 1 min.
- Dielectric strength of neighbouring contacts
- 2.5 KV
- / 1 min.
- Dielectric strength of open contact
- 1.5 kV
- / 1 min.
- Insulating material group
- IIIa
- Pollution severity
- 2
- Protection degree
- IP10
- Rated voltage
- 250 V
- Surge voltage category
- III
Output
- Continuous current
- 16 A
- Max. switching voltage, AC
- 250 V
- Rated switching voltage
- 250 V AC
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature
- -40 °C...40 °C
- Storage temperature
- -40 °C...40 °C
