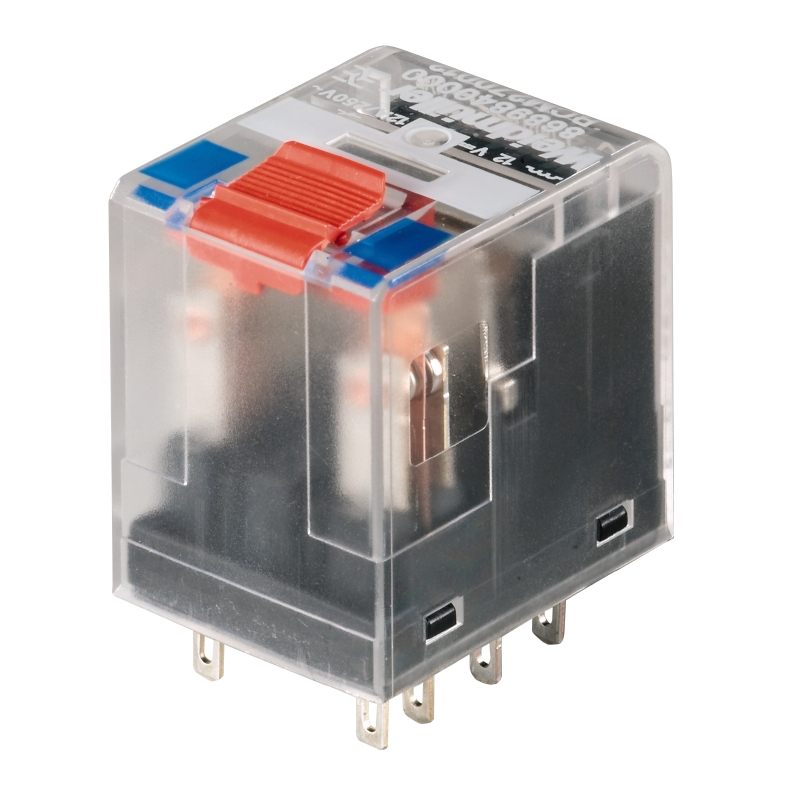

Weidmuller 8689870000

Approvals

• Approvals
  • CE, CSA, cURus, EAC, VDE
• ROHS
  • Conform
• UL File Number Search
  • E224238

Classifications

• eClass 10.0
  • 27-37-16-01
• eClass 9.0
  • 27-37-16-01
• eClass 9.1
  • 27-37-16-01
• ETIM 6.0
  • EC001437
• ETIM 7.0
  • EC001437
• UNSPSC
  • 30-21-19-17

Connection Data

• Wire connection method
  • Plug-in connection

Contact Data

• Contact type
  • 2 CO contact with test button (AgNi 90/10)
• Mechanical service life
  • AC coil 20 x 106 switching cycles, DC coil 30 x 106 switching cycles

Dimensions And Weights

• Depth
  • 29 mm
• Depth (inches)
  • 1.142 inch
• Height
  • 28 mm
• Height (inches)
  • 1.102 inch
• Net weight
  • 29.6 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Further Details Of Approvals / Standards

• Certificate No. (CSA)
  • 249409-2426937
• Certificate No. (cURus)
  • E224238
• Standards
  • IEC 61810-1, UL508

General Data

• Colour
  • Transparent
• Mechanical switch position indicator
  • Yes
• Test button
  • yes (lockable)
• UL 94 flammability rating
  • V-2

Input

• Coil resistance
  • 777 Ω ± 10 %
• Power rating
  • 750 mW
• Pull-in/drop-out voltage, typ.
  • 18 V / 2.4 V DC
• Rated control voltage
  • 24 V DC
• Rated current DC
  • 31.3 mA
• Status indicator
  • red LED

Insulation Coordination

• Creepage and clearance distance input – output
  • ≥ 4 mm
• Dielectric strength, Input/Output
  • 2.5 kVeff / 1 Min.
• Dielectric strength of neighbouring contacts
  • 2.5 kVeff / 1 Min.
• Dielectric strength of open contact
  • 1.2 kVeff /1 min.
• Impulse withstand voltage
  • 5 kV (1.2/50 µs)
• Insulating material group
  • IIIa
• Pollution severity
  • 2
• Protection degree
  • IP20
• Rated voltage
  • 250 V
• Surge voltage category
  • III

Output

• AC switching capacity (resistive), max.
  • 3000 VA
• Continuous current
  • 12 A
• DC switching capacity (resistive), max.
  • 288 W @ 24 V
• Inrush current
  • 24 A / 20 ms
• Max. switching frequency at rated load
  • 0.1 Hz
• Max. switching voltage, AC
  • 400 V
• Min. switching power
  • 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
• Rated switching voltage
  • 240 V AC
• Switch-off delay
  • ≤ 10 ms
• Switch-on delay
  • ≤ 15 ms

Rated Data Ul

• Certificate No. (cURus)
  • E224238

Temperatures

• Humidity
  • 40 °C / 93 % rel. humidity, no condensation
• Operating temperature
  • -40 °C...70 °C
• Operating temperature, max.
  • 70 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
