Weidmuller 8689750000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

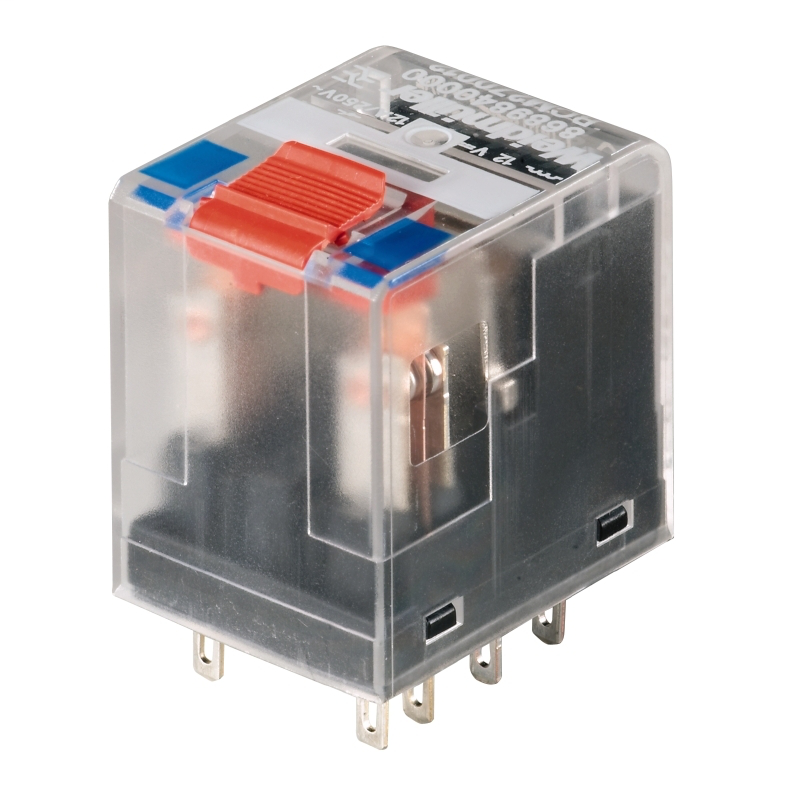

RIDERSERIES RCM, Relay, Number of contacts: 2 CO contact with test button AgNi 90/10, Rated control voltage: 12 V AC, Continuous current: 12 A, Plug-in connectionRCM270R12
Weidmuller 8689750000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CSA, cURus, EAC, VDE
- ROHS
- Conform
- UL File Number Search
- E224238
Classifications
- eClass 10.0
- 27-37-16-01
- eClass 9.0
- 27-37-16-01
- eClass 9.1
- 27-37-16-01
- ETIM 6.0
- EC001437
- ETIM 7.0
- EC001437
- UNSPSC
- 30-21-19-17
Connection Data
- Wire connection method
- Plug-in connection
Contact Data
- Contact type
- 2 CO contact with test button (AgNi 90/10)
- Mechanical service life
- AC coil 20 x 106 switching cycles, DC coil 30 x 106 switching cycles
Dimensions And Weights
- Depth
- 29 mm
- Depth (inches)
- 1.142 inch
- Height
- 28 mm
- Height (inches)
- 1.102 inch
- Net weight
- 29.7 g
- Width
- 22.5 mm
- Width (inches)
- 0.886 inch
Further Details Of Approvals / Standards
- Certificate No. (CSA)
- 249409-2426937
- Certificate No. (cURus)
- E224238
- Standards
- IEC 61810-1, UL508
General Data
- Colour
- Transparent
- Mechanical switch position indicator
- Yes
- Test button
- yes (lockable)
- UL 94 flammability rating
- V-2
Input
- Coil resistance
- 192 Ω ± 10 %
- Power rating
- 1.0 VA
- Pull-in/drop-out voltage, typ.
- 9.6 V / 3.6 V AC
- Rated control voltage
- 12 V AC
- Rated current AC
- 83.3 mA
- Status indicator
- red LED
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 4 mm
- Dielectric strength, Input/Output
- 2.5 kVeff / 1 Min.
- Dielectric strength of neighbouring contacts
- 2.5 kVeff / 1 Min.
- Dielectric strength of open contact
- 1.2 kVeff /1 min.
- Impulse withstand voltage
- 5 kV (1.2/50 µs)
- Insulating material group
- IIIa
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 250 V
- Surge voltage category
- III
Output
- AC switching capacity (resistive), max.
- 3000 VA
- Continuous current
- 12 A
- DC switching capacity (resistive), max.
- 288 W @ 24 V
- Inrush current
- 24 A / 20 ms
- Max. switching frequency at rated load
- 0.1 Hz
- Max. switching voltage, AC
- 400 V
- Min. switching power
- 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
- Rated switching voltage
- 240 V AC
- Switch-off delay
- ≤ 10 ms
- Switch-on delay
- ≤ 15 ms
Rated Data Ul
- Certificate No. (cURus)
- E224238
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
