Weidmuller 8671050000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

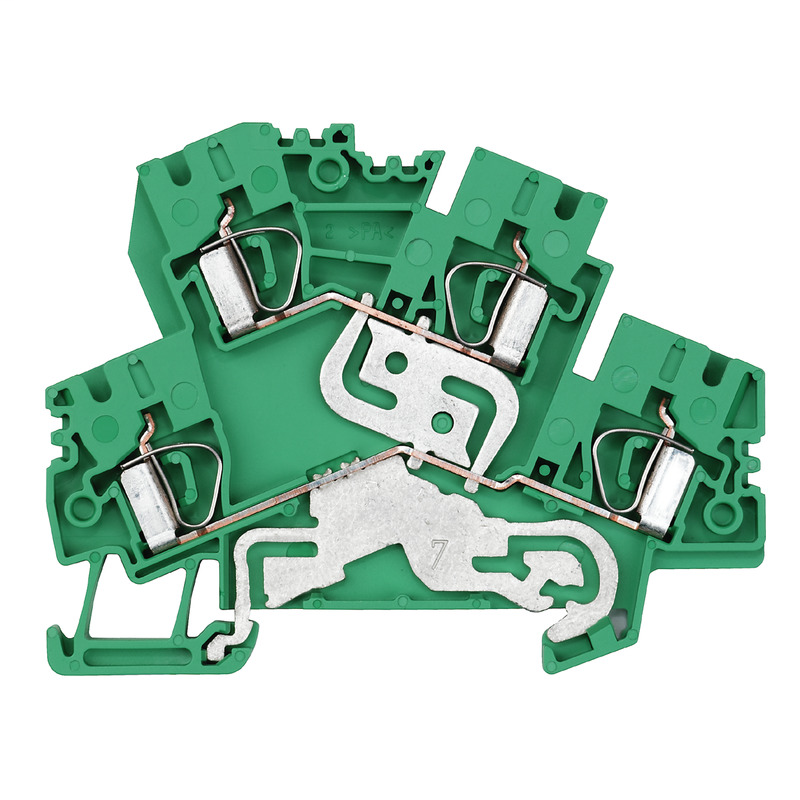

Z-series, PE terminal, Rated cross-section: 4 mm², Tension-clamp connection, greenZDK 4-2 PE
Weidmuller 8671050000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Open sides
- right
Approvals
- Approvals
- CE, CSA, EAC, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-01
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Connection direction
- Inclined / angled
- Gauge to IEC 60947-1
- A3
- Number of connections
- 4
- Stripping length
- 10 mm
- Type of connection
- Tension-clamp connection
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Csa Rating Data
- Certificate No. (CSA)
- 200039-1236167
- Wire cross section max. (CSA)
- 10 AWG
- Wire cross section min. (CSA)
- 26 AWG
Dimensions And Weights
- Depth including DIN rail
- 61 mm
- Height
- 77.6 mm
- Height (inches)
- 3.055 inch
- Net weight
- 24.62 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Material Data
- Colour
- dark beige
- Material
- Wemid
Rating Data
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated current
- 32 A
- Rated impulse withstand voltage
- 8 kV
- Rated impulse withstand voltage to adjacent terminal
- 8 kV
- Rated voltage
- 800 V
- Rated voltage to adjoining terminal
- 800 V
- Standards
- IEC 60947-7-2
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- Yes
- Number of levels
- 2
- PE connection
- Yes
- Version
- Tension-clamp connection, With PE connection, One end without connector
Temperatures
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 10 AWG
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring max. (UR)
- 10 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
