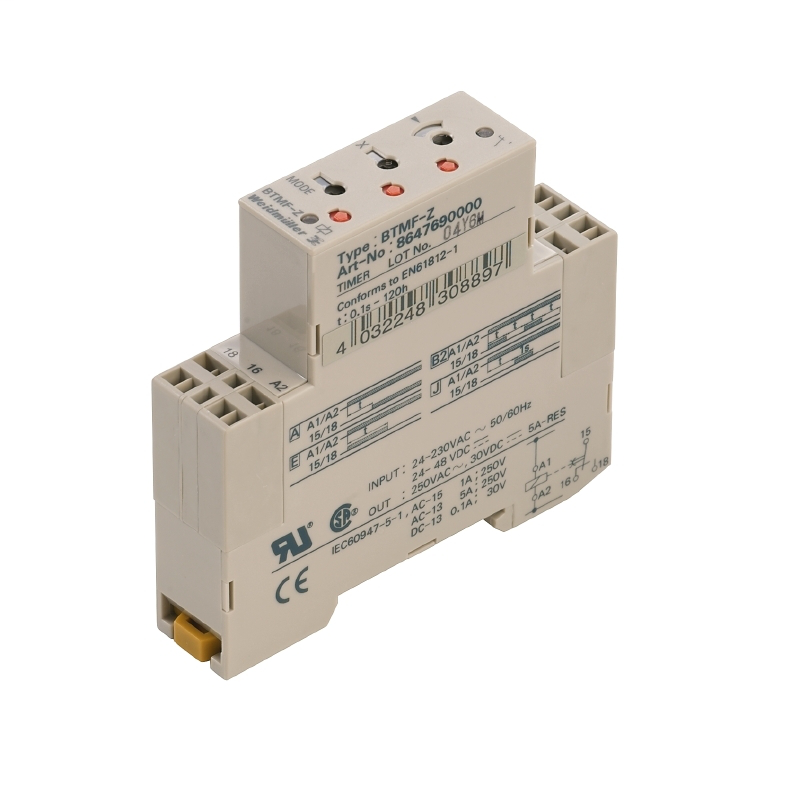

Weidmuller 8647690000

Approvals

• Approvals
  • CE, CSA, EAC, UR
• ROHS
  • Conform
• UL File Number Search
  • E223474

Classifications

• eClass 10.0
  • 27-37-16-05
• eClass 9.0
  • 27-37-16-05
• eClass 9.1
  • 27-37-16-05
• ETIM 6.0
  • EC001439
• ETIM 7.0
  • EC001439
• UNSPSC
  • 30-21-19-17

Connection Data

• Blade size
  • 0.4 x 2.5 mm
• Clamping range, max.
  • 1.5 mm²
• Clamping range, min.
  • 0.2 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 0.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.2 mm²
• Stripping length, rated connection
  • 7 mm
• Wire connection cross section AWG, max.
  • AWG 16
• Wire connection cross section AWG, min.
  • AWG 24
• Wire connection cross section, finely stranded, max.
  • 1.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.2 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.2 mm²
• Wire connection method
  • Tension-clamp connection
• Wire cross-section, solid, max.
  • 1.5 mm²
• Wire cross-section, solid, min.
  • 0.2 mm²

Contact Data

• Contact resistance
  • 100 MΩ min., at 500 V DC
• Contact type
  • 1 CO contact (AgNi 90/10)
• Electrical service life, DC coil
  • 105 switching cycles (5A at 250 Vac, ohm load at 1800/h)
• Mechanical service life
  • 107swtiching cycles (no load, 1800/h)

Dimensions And Weights

• Depth
  • 74 mm
• Depth (inches)
  • 2.913 inch
• Height
  • 80 mm
• Height (inches)
  • 3.15 inch
• Net weight
  • 71.9 g
• Width
  • 17.5 mm
• Width (inches)
  • 0.689 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

Further Details Of Approvals / Standards

• Certificate No. (CSA)
  • 219713
• Certificate No. (UR)
  • E223474
• Standards
  • UL508

General Data

• Colour
  • beige
• Mechanical switch position indicator
  • No
• Rail
  • TS 35
• Test button
  • No
• UL 94 flammability rating
  • V-2

Input

• Max. reset time after voltage interruption
  • 100 ms
• Min. pulse duration
  • 50 ms
• Power rating
  • ≤ 0.4 VA, 1.6 W
• Pull-in/drop-out voltage, typ.
  • 20.4 V / 2.4 V AC 20.4 V / 2.4 V DC
• Rated control voltage
  • 24...48 V DC + 10 % / - 15 % / 24...230 V AC + 10 % / - 15 %
• Repeat accuracy
  • ± 1 %
• Setting tolerance
  • 10 %
• Status indicator
  • LED green: supply voltage, LED orange: relay output on
• Time ranges
  • 0.1 s - 1.2 s, 1 s - 12 s, 0.1 min - 1.2 min, 1 min - 12 min, 0.1 h - 1.2 h, 1 h - 12 h, 10 h - 120 h

Insulation Coordination

• Dielectric strength, Input/Output
  • 2 kVeff / 1 min
• Protection degree
  • IP20

Output

• AC switching capacity (resistive), max.
  • 2500 VA
• Continuous current
  • 5 A
• DC switching capacity (resistive), max.
  • 120 W @ 24 V
• Max. switching voltage, AC
  • 250 V
• Rated switching voltage
  • 250 V AC

Rated Data Ul

• Certificate No. (UR)
  • E223474

Temperatures

• Humidity
  • 35...85 % rel. humidity, no condensation
• Operating temperature
  • -10 °C...55 °C
• Operating temperature, max.
  • 55 °C
• Operating temperature, min.
  • -10 °C
• Storage temperature
  • -25 °C...65 °C
• Storage temperature, max.
  • 65 °C
• Storage temperature, min.
  • -25 °C
