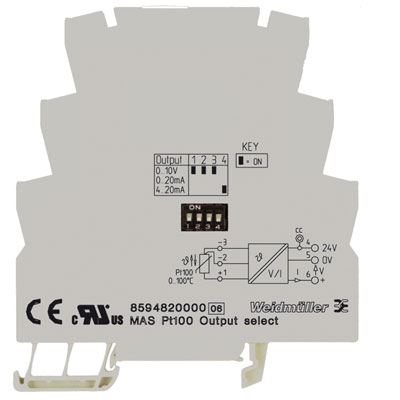

Weidmuller 8594850000

Approvals

• Approvals
  • EAC
  • CE
  • CULUS
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• EClass 5.1
  • 27-20-02-06
• EClass 6.2
  • 27-20-02-06
• EClass 7.1
  • 27-20-02-06
• EClass 8.1
  • 27-20-02-06
• EClass 9.0
  • 27-20-02-06
• EClass 9.1
  • 27-21-01-29
• ETIM 6.0
  • EC002919
• UNSPSC
  • 30-21-18-01

Connection Data

• Clamping range, rated connection
  • 1.5 mm²
• Clamping range, rated connection, max.
  • 2.5 mm²
• Clamping range, rated connection, min.
  • 0.5 mm²
• Type of connection
  • Tension clamp connection

Dimensions And Weights

• Depth
  • 97.8 mm
• Depth (inches)
  • 3.85 inch
• Length
  • 92 mm
• Length (inches)
  • 3.622 inch
• Net weight
  • 41 g
• Width
  • 6.1 mm
• Width (inches)
  • 0.24 inch

General Data

• Accuracy
  • < 0.5 % of measuring range
• Configuration
  • DIP switch
• Current-carrying capacity of cross-connect.
  • ≤ 20 A
• Galvanic isolation
  • 2-way isolator
• Input/Output
  • PT100/ 0(4)...20 mA, 0...10 V, 0...5 V
• Linearity
  • Yes
• Mounting rail
  • TS 35
• Power consumption
  • ca. 0.6 W
• Step response time
  • < 0.7 s
• Supply voltage
  • 24 V DC ± 10 %
• Temperature coefficient
  • ≤ 250 ppm/K of final value
• Type of connection
  • Tension clamp connection

General Ordering Data

• GTIN (EAN)
  • 4032248252480
• Order No.
  • 8594850000
• Qty.
  • 1 pc(s).
• Type
  • MAZ PT100 0...100C

Input

• Number of inputs
  • 1
• Sensor
  • PT100/2-/3-wire (in compliance with IEC 751)
• Sensor supply
  • 0.8 mA
• Temperature input range
  • 0...100 °C

Insulation Coordination

• Clearance & creepage distances
  • ≥ 1.5 mm
• EMC standards
  • EN 55011, EN 61000-6 /-2, EN 61326
• Galvanic isolation
  • 2-way isolator
• Impulse withstand voltage
  • 1.5 kV
• Insulation voltage
  • 500 V
  • / 1 s
• Insulation voltage input or output/rail
  • 500 V
• Insulation voltage input or output/supply
  • 500 V
• Pollution severity
  • 2
• Rated voltage
  • 100 V
• Standards
  • DIN EN 50178, DIN EN 61000-4-2
• Surge voltage category
  • III

Output

• Load impedance current
  • ≤ 400 Ω @ 24 V
• Load impedance voltage
  • ≥ 10 kΩ
• Number of outputs
  • 1
• Output current
  • 0 to 20 mA, 4 to 20 mA
• Output voltage, note
  • 0...10V / 0...5V

Product Information

• Descriptive text accessories
  • markers – refer to Accessories
  • Cross-connectors for power supplies and

Temperatures

• Operating temperature
  • 0 °C to 55 °C
• Storage temperature
  • -20 °C...85 °C
