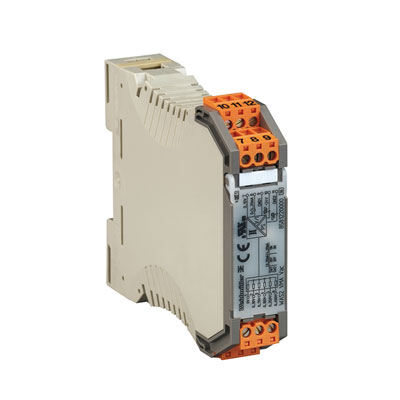

Weidmuller 8581220000

Approvals

• Approvals
  • CE, CULUS, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-20
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653
• UNSPSC
  • 30-21-18-01

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Type of connection
  • Screw connection

Dimensions And Weights

• Depth
  • 112.4 mm
• Depth (inches)
  • 4.425 inch
• Length
  • 92.4 mm
• Length (inches)
  • 3.638 inch
• Net weight
  • 149.8 g
• Weight
  • 200 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • 1,3 % (40...60 Hz) typ. 1 %; 2 % (70...400 Hz) typ. 1,5 %
• Configuration
  • DIP switch
• Current-carrying capacity of cross-connect.
  • ≤ 2 A
• Current consumption
  • 40...30...24 mA @ IOUT =20 mA
• Galvanic isolation
  • 3-way isolator
• Input/Output
  • configurable
• Rail
  • TS 35
• Step response time
  • < 300 ms
• Temperature coefficient
  • ≤ 250 ppm/K
• Voltage supply
  • 24 V DC ± 25 %

Input

• Input frequency
  • 40...400 Hz sinus
• Input measurement range
  • 0…30 V AC, 0…70 V AC, 0…130 V AC, 0…250 V AC, 0…450 V AC
• Input resistance, voltage
  • 30 kΩ / 70 kΩ / 130 kΩ / 250 kΩ / 450 kΩ
• Number of inputs
  • 1

Insulation Coordination

• Clearance & creepage distances
  • Supply/output: 3 mm; Input/Output, Supply/output: 5.5 mm
• EMC standards
  • EN 61000-2-6, EN 61000-6, EN 61326
• Galvanic isolation
  • 3-way isolator
• Impulse withstand voltage
  • Supply⁄output: 4 kV; input/output, input/output: 6 kV
• Insulation voltage
  • 4 kVeff / 5 s
• Insulation voltage input or output/supply
  • Input / power: 4 kVeff/ 5 s; output / power supply: 2 kVeff / 5 s
• Pollution severity
  • 2
• Rated voltage
  • supply/output: 300 V; input/output, supply/output: 600 V
• Surge voltage category
  • III

Output

• load impedance current
  • ≤ 600 Ω
• load impedance voltage
  • ≥ 1 kΩ
• Number of outputs
  • 1
• Offset current
  • max. 40 µA
• Offset voltage
  • max. 0.02 V
• Output current
  • 0(4)...20 mA
• Output voltage, note
  • 0...10 V
• Status indicator
  • Green LED

Probability Of Failure

• MTTF
  • 371 Years

Product Information

• Product information
  • This product will soon be replaced by a new product.Please do not use with new systems. Please contact our technical support.

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Operating temperature
  • 0 °C...50 °C
• Operating temperature, max.
  • 50 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature
  • -20 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -20 °C

Tender Specification Sheets

• Long specification
  • Monitoring component for AC voltages up to 450 V with standard signal output and electrical isolationVoltage monitoring component in 22.5 mm width for recording 50/ 60 Hz AC voltages 0...30 V / 0...70 V / 0...130 V / 0...250 V / 0...450 V. Standardised analogue current/voltage signals are available on the output side. The component has 4 kV of complete 3-way isolation and is supplied externally with 24 VDC. Add-on housing for TS35 rail mounting Dimensions: L/W/H 92.4/ 22.5/ 112.4 mm Screw connection / Nominal cross-section 2.5 mm2Protection degree: IP 20   Input                         0...30 V / 0...70 V / 0...130 V / 0...250 V / 0...450 V AC                                       40...400 Hz sinus Voltage of measuring circuit max 475 V AC Output                                             0(4)...20 mA / 0...10 V Load resistance            < 600 Ohm Strom >1 kOhm / voltageTransmission error           < 1,3 % v. E.  Temperature coefficient 250 ppm / K Step response time        < 300 msAuxiliary power                                     24 VDC +/- 25 % Ambient temperature range 0 °C...+50 °C Secure isolation                   EN 50178, 3-way isolation up to 4 kVTest voltage                               4 kV / 5 s Input / Output / supplyRated voltage                                          300 V AC/DC at overvoltage category III and pollution degree 2 Approvals cULus Type                                                             WAS2 VMA V ac
• Short specification
  • Monitoring component for AC  voltages up to 450 V with standard signal output and electrical isolationVoltage monitoring component in 22.5 mm width for recording 50/ 60 Hz AC voltages 0...30 V / 0...70 V / 0...130 V / 0...250 V / 0...450 V.  Standardised analogue current/voltage signals are available on the output side. The component has 4 kV of complete 3-way isolation and is supplied externally with 24 VDC.
