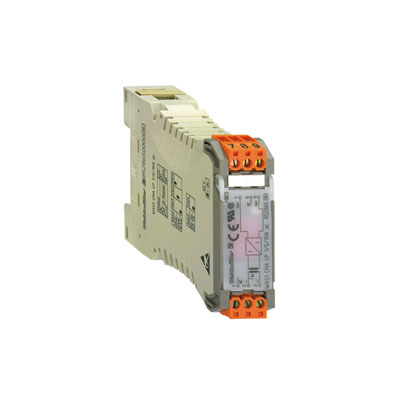

Weidmuller 8528660000

Approvals

• Approvals
  • CE, CULUS, EAC
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-20
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653
• UNSPSC
  • 30-21-18-01

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Type of connection
  • Tension-clamp connection

Dimensions And Weights

• Depth
  • 112.4 mm
• Depth (inches)
  • 4.425 inch
• Length
  • 72 mm
• Length (inches)
  • 2.835 inch
• Net weight
  • 72.9 g
• Weight
  • 150 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • 0.5 % FSR
• Configuration
  • DIP switch
• Galvanic isolation
  • 2-way isolator
• Input/Output
  • 1 /5/ 10 A AC / 4...20 mA (current loop)
• Rail
  • TS 35
• Step response time
  • typ. 700 ms
• Temperature coefficient
  • ≤ 200 ppm/K
• Voltage supply
  • 13...30 V DC, via output current loop

Input

• Input current
  • 0...1 A AC/ 0...5 A AC/ 0...10 A AC
• Input frequency
  • 50...60Hz
• Number of inputs
  • 1

Insulation Coordination

• Clearance & creepage distances
  • ≥ 5.5 mm
• EMC standards
  • EN 55011, EN 61000-6
• Galvanic isolation
  • 2-way isolator
• Impulse withstand voltage
  • 6 kV
• Insulation voltage
  • 4 kVeff / 5 s
• Pollution severity
  • 2
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Output

• load impedance current
  • ≤ 600 Ω
• Number of outputs
  • 1
• Offset current
  • max. 100 µA
• Output current
  • 4...20 mA (current loop)
• Output signal limit
  • Approx. 24 mA
• Status indicator
  • LED ON: OK; LED flashing: signal out of range;LED OFF: Error

Probability Of Failure

• MTTF
  • 564 Years

Product Information

• Product information
  • This product will soon be replaced by a new product.Please do not use with new systems. Please contact our technical support.

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Operating temperature
  • 0 °C...50 °C
• Operating temperature, max.
  • 50 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature
  • -20 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -20 °C

Tender Specification Sheets

• Long specification
  • Monitoring component for AC currents up to 10A with 4...20 mA loop feedand electrical isolationCurrent monitoring component in 22.5 mm width for recording 50/ 60 Hz AC currents0...1 A / 0...5 A / 0...10 A. Input range can be selected using DIP switches.Power is fed to the component via the 4...20 mA current loop on the output side.The input and output circuits have 6 kV of electrical isolation.Add-on housing for TS35 rail mountingDimensions: L/W/H 72/ 22.5/ 92.4 mmTension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20   Input                         0...1 A / 0...5 A / 0...10 A AC switchable                                      50 / 60 HzVoltage of measuring circuit 250 V ACOutput                                             4...20 mA current loopLoad resistance            < 600 Ohm Strom>1 kOhm / voltageTransmission error           < 0,5% v. E. Temperature coefficient 200 ppm / KStep response time typ. 700 msAuxiliary power                                     via output-side current loopAmbient temperature range 0 °C...+50 °C Secure isolation                   EN 50178, 2-way isolation up to 6 kVTest voltage                               4 kV input against outputRated voltage                                           300 V AC/DC at overvoltage category III and pollution degree 2Approvals cULusType                                                             WAZ1 CMA LP 1/5/10A ac
• Short specification
  • Monitoring component for AC currents up to 10A with 4...20 mA loop feed and electrical isolationCurrent monitoring component in 22.5 mm width for recording 50/ 60 Hz AC currents0...1 A / 0...5 A / 0...10 A. Input range can be selected using DIP switches.Power is fed to the component via the 4...20 mA current loop on the output side.The input and output circuits have 6 kV of electrical isolation.
