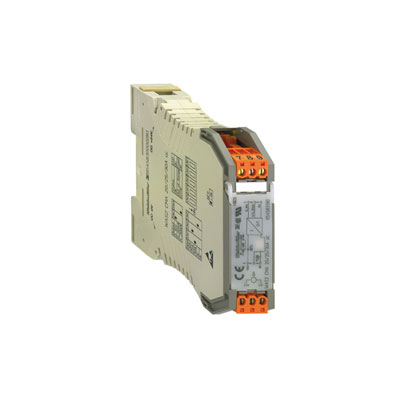

Weidmuller 8526610000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
WAVESERIES, Current monitoring, 0...5 A AC/DC / 0...10 A AC/DC, 1, 1, Screw connection
Weidmuller 8526610000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS
- EAC
- CE
- ROHS
- Conform
- UL File Number Search
- E141197
Classifications
- EClass 6.2
- 27-21-09-02
- EClass 7.1
- 27-37-18-02
- EClass 8.1
- 27-37-18-02
- EClass 9.0
- 27-37-18-02
- EClass 9.1
- 27-21-01-20
- ETIM 4.0
- EC002048
- ETIM 5.0
- EC002048
- ETIM 6.0
- EC002653
Connection Data
- Clamping range, rated connection
- 2.5 mm²
- Clamping range, rated connection, max.
- 2.5 mm²
- Clamping range, rated connection, min.
- 0.5 mm²
- Type of connection
- Screw connection
Dimensions And Weights
- Depth
- 112.4 mm
- Depth (inches)
- 4.425 inch
- Length
- 92.4 mm
- Length (inches)
- 3.638 inch
- Net weight
- 106.7 g
- Width
- 22.5 mm
- Width (inches)
- 0.886 inch
General Ordering Data
- Alternative product
- 1510470000
- Available until
- 2017-06-30
- Delivery status
- This article will no longer be available in the future.
- GTIN (EAN)
- 4032248154333
- Order No.
- 8526610000
- Qty.
- 1 pc(s).
- Type
- WAS2 CMA 5/10A uc
Input
- Input current
- 0...5 A AC/DC / 0...10 A AC/DC
- Input frequency
- 0…2 kHz (True RMS)
- Number of inputs
- 1
Output
- Load impedance current
- ≤ 600 Ω
- Load impedance voltage
- ≥ 1 kΩ
- Number of outputs
- 1
- Offset current
- max. 150 µA
- Offset voltage
- max. 0.08 V
- Output current
- 0(4) to 20 mA
- Output signal limit
- Approx. 13 V or 24 mA
- Output voltage, note
- 0...10 V
- Status indicator
- LED ON: OK; FLASHING: signal out of range;
- LED OFF: Error
Probability Of Failure
- MTTF
- 334 Years
Product Information
- Descriptive text accessories
- Cross-connectors for power supplies and markers – refer to Accessories
Temperatures
- Operating temperature
- 0 °C to 50 °C
- Storage temperature
- -20 °C...70 °C
