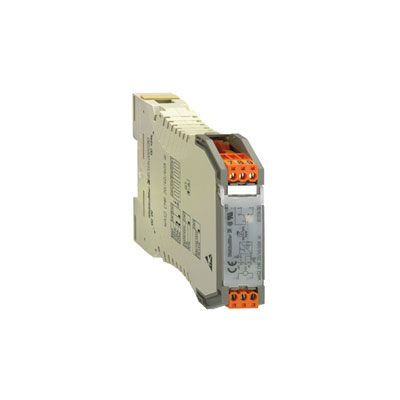

Weidmuller 8516570000

Approvals

• Approvals
  • CE, CULUS
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-20
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653
• UNSPSC
  • 30-21-18-01

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Type of connection
  • Tension-clamp connection

Dimensions And Weights

• Depth
  • 112.4 mm
• Depth (inches)
  • 4.425 inch
• Length
  • 92.4 mm
• Length (inches)
  • 3.638 inch
• Net weight
  • 153 g
• Weight
  • 153 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Configuration
  • DIP switch, Potentiometer
• Current-carrying capacity of cross-connect.
  • ≤ 2 A
• Current consumption
  • 8.3 mA (relay not triggered)/ 24 mA (relay triggered)
• Galvanic isolation
  • 3-way isolator
• Input/Output
  • 1/ 5/ 10 A AC / relay
• Power consumption
  • ≤ 0.8 W
• Rail
  • TS 35
• Step response time
  • typ. 700 ms
• Temperature coefficient
  • ≤ 800 ppm/K
• Voltage supply
  • 24 V DC ± 10 %

Input

• Input current
  • 0...1 A AC/ 0...5 A AC/ 0...10 A AC
• Input frequency
  • 50...60Hz
• Number of inputs
  • 1

Insulation Coordination

• Clearance & creepage distances
  • ≥ 3 mm
• EMC standards
  • EN 55011, EN 61000-6
• Galvanic isolation
  • 3-way isolator
• Impulse withstand voltage
  • 4 kV
• Insulation voltage
  • 4 kVeff / 5 s
• Pollution severity
  • 2
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Output

• Contact assembly
  • 1 CO contact
• Number of outputs
  • 1
• Status indicator
  • Green LED
• Switching thresholds
  • Adjustable 10...100% with front potentiometer

Output (Digital)

• Continuous current
  • 3 A
• Hysteresis
  • 5 % or 10 % of threshold value
• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 60 V

Probability Of Failure

• MTTF
  • 787 Years

Product Information

• Product information
  • This product will soon be replaced by a new product.Please do not use with new systems. Please contact our technical support.

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Operating temperature
  • 0 °C...50 °C
• Operating temperature, max.
  • 50 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature
  • -20 °C...70 °C
• Storage temperature, max.
  • 70 °C
• Storage temperature, min.
  • -20 °C

Tender Specification Sheets

• Long specification
  • Limit-value monitoring component   for AC currents up to 10A with relay outputand electrical isolationlimit-value monitoring component in 22.5 mm width for recording 50/ 60 Hz ACcurrents 0...1 A / 0...5 A / 0...10 A. A relay contact (CO)with a switching capacity of 750 VA is available on the output side.Input range can be selected using DIP switches. Switching threshold is adjustable between 10...90 % using the potentiometer on the front side. The 24 VDC power is supplied over the input circuit.The input and outputs are designed with 4 kV of electrical isolation.Add-on housing for TS35 rail mountingDimensions: L/W/H 92.4/ 22.5/ 112.4 mmTension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20   Input                         0...1 A / 0...5 A / 0...10 A AC switchable                                      50 / 60 Hz // transformer basedVoltage of measuring circuit 250 V ACOutput                                             Relay / COSwitching current 3 ASwitching voltage 6... 250 V AC / 6...60 V DCSwitching threshold 10...90 % via potentiometerHysteresis                     5 % or 10 %  . Temperature coefficient   < 800 ppm KStep response time typ. 700 msAuxiliary power                                     24 VDC +/- 10 % via output circuitAmbient temperature range 0 °C...+50 °C Secure isolation                   EN 50178, 2-way isolation up to 4 kVTest voltage                               4 kVeff / 5s input against outputRated voltage                                          300 V AC/DC at overvoltage category III and pollution degree 2Approvals cULusType                                                             WAZ2 CMR 1/5/10A ac
• Short specification
  • Limit-value monitoring component  for AC currents up to 10A with relay output and electrical isolationlimit-value monitoring component in 22.5 mm width for recording 50/ 60 Hz AC currents 0...1 A / 0...5 A / 0...10 A.  A relay contact (CO) with a switching capacity of 750 VA is available on the output side. Input range can be selected using DIP switches. Switching threshold adjustable between 10...90 % using the front-side potentiometer. The 24 VDC power is supplied over the input circuit. The input and output have 4 kV of electrical isolation.
