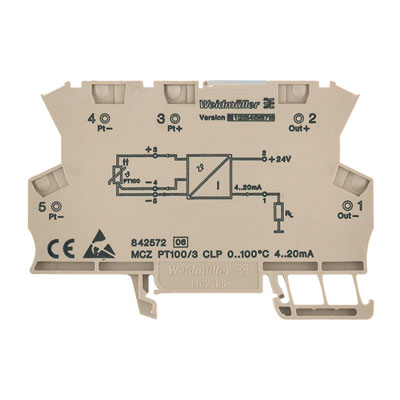

Weidmuller 8483680000

Approvals

• Approvals
  • CE, CSA, EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-29
• eClass 9.0
  • 27-21-01-29
• eClass 9.1
  • 27-21-01-29
• ETIM 6.0
  • EC002919
• ETIM 7.0
  • EC002919
• UNSPSC
  • 30-21-18-01

Connection Data

• Clamping range, max.
  • 1.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.5 mm²
• Type of connection
  • Tension-clamp connection
• Wire connection cross section AWG, max.
  • AWG 16
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 1.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.5 mm²
• Wire cross-section, finely stranded, max. (AWG)
  • AWG 16
• Wire cross-section, finely stranded, min. (AWG)
  • AWG 26
• Wire cross-section, solid, max.
  • 1.5 mm²
• Wire cross-section, solid, min.
  • 0.5 mm²

Dimensions And Weights

• Depth
  • 63.2 mm
• Depth (inches)
  • 2.488 inch
• Length
  • 91 mm
• Length (inches)
  • 3.583 inch
• Net weight
  • 30 g
• Width
  • 6 mm
• Width (inches)
  • 0.236 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • Typ.: 0.2 %, máx. 0.5 % v. FSR
• Configuration
  • none
• Galvanic isolation
  • between input/output
• Input/Output
  • PT100/ 4...20 mA (current loop)
• Linearity
  • Yes
• Rail
  • TS 35
• Step response time
  • 10 ms
• Temperature coefficient
  • max. ± 250 ppm/K
• Voltage supply
  • Output loop powered, max. 30 V/ min. 9 V + (20 mA x RL)

Input

• Number of inputs
  • 1
• Sensor
  • PT100/2-/3-wire (in compliance with IEC 751)
• Sensor supply
  • 0.8 mA / 9…30 V DC
• Temperature input range
  • 0...120 °C

Insulation Coordination

• EMC standards
  • EN 61000-6
• Galvanic isolation
  • between input/output
• Pollution severity
  • 2
• Rated voltage
  • 50 V
• Surge voltage category
  • I

Output

• load impedance current
  • ≤ 600 Ω
• Number of outputs
  • 1
• Output current
  • 4...20 mA (current loop) at 9...30V DC

Probability Of Failure

• MTTF
  • 1,060 Years

Temperatures

• Operating temperature
  • -25 °C...50 °C
• Operating temperature, max.
  • 50 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -25 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -25 °C

Tender Specification Sheets

• Long specification
  • PT100 temperature measuring transformer, output-loop powered,3-wire connection technologyRTD measuring transformer in 6 mm width, 4...20 mA output-loop poweredwithout electrical isolation, for transmitting PT100 2-/3-wire signals.Input temperature range 0...+120 °C.Add-on housing for TS35 rail mountingDimensions: L/W/H 91/ 6/ 63.2 mmTension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20 Input PT100, 2-/3-wireOutput 4...20 mALoad resistance Transmission error Auxiliary power via 4...20 mA current loopAmbient temperature range 0°C...+50 °C< 0,2 % v. E.Isolation no electrical isolationApprovals cURus, CSATypeMCZ PT100/3 CLP 0...120C
• Short specification
  • PT100 temperature measuring transformer, output-loop powered,3-wire connection technologyRTD measuring transformer in 6 mm width, 4...20 mA output-loop poweredwithout electrical isolation, for transmitting PT100 2-/3-wire signals.Input temperature range 0...+120 °C.
