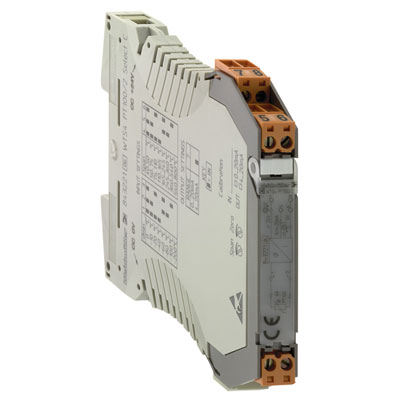

Weidmuller 8432250000

Approvals

• Approvals
  • CE, CSA, CULUS
• ROHS
  • Conform
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-21-01-29
• eClass 9.0
  • 27-21-01-29
• eClass 9.1
  • 27-21-01-29
• ETIM 6.0
  • EC002919
• ETIM 7.0
  • EC002919
• UNSPSC
  • 30-21-18-01

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Stripping length, rated connection
  • 7 mm
• Type of connection
  • Tension-clamp connection

Dimensions And Weights

• Depth
  • 112.4 mm
• Depth (inches)
  • 4.425 inch
• Length
  • 92.4 mm
• Length (inches)
  • 3.638 inch
• Net weight
  • 127 g
• Width
  • 12.5 mm
• Width (inches)
  • 0.492 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • 100K ≤ MB < 600K: 0,.1 %; MB ≥ 600K: 0.2 %; of the MB
• Configuration
  • DIP switch, Potentiometer, and PT100-Simulator
• Current-carrying capacity of cross-connect.
  • ≤ 2 A
• Current consumption
  • < 38 mA @ IOUT = 20 mA
• Galvanic isolation
  • Without isolation
• Input/Output
  • PT100/ 0...10 V
• Linearity
  • Yes
• Rail
  • TS 35
• Temperature coefficient
  • Measuring range ≥ 200 K: ≤ 200 ppm/K (typ. 80 ppm/K)100 K < = measuring range < 200 K: < 225 ppm/K (typ. 90 ppm/K)
• Voltage supply
  • 24 V DC ± 20 %

Input

• Number of inputs
  • 1
• Sensor
  • PT100 / 2-/3-/4-wire
• Sensor supply
  • 1.45 mA
• Temperature input range
  • Adjustable from -200...+800°C

Insulation Coordination

• EMC standards
  • EN 55011, EN 61000-6
• Galvanic isolation
  • Without isolation

Output

• load impedance voltage
  • ≥ 1 kΩ
• Number of outputs
  • 1
• Output voltage, note
  • 0...10 V

Product Information

• Product information
  • This product will soon be replaced by a new product.Please do not use with new systems. Please contact our technical support.

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Operating temperature
  • 0 °C...55 °C
• Operating temperature, max.
  • 55 °C
• Operating temperature, min.
  • 0 °C
• Storage temperature
  • -20 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -20 °C

Tender Specification Sheets

• Long specification
  • PT100 temperature measuring transformer, configured with DIP switches, 4-wire connection technologyRTD measurement isolating transformer in 12.5 mm width with external power supply,for transmitting PT100 4-wire signals.Input temperature range -200...+800 °C.Analogue DC signals 0...10 V are available on the output side.Zero/span compensation with potentiometer.  Add-on housing for TS35 rail mountingDimensions: L/W/H 92.4/ 12.5/ 112.4 mmTension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20  Input                          PT100, 4-wireOutput                                              0...10 VLoad resistance > 1 kOhm Transmission error             < 0,5 % v. E.                                         typ. 200 ppm / °CAuxiliary power                                     24 VDC +/- 20 %Ambient temperature range 0°C...+55 °CIsolation                                no electrical isolationApprovals cULus, CSAType                                                             WTZ4 PT100/4 C 0-10V
• Short specification
  • PT100 temperature measuring transformer, configured with DIP switches, 4-wire connection technologyRTD measurement isolating transformer in 12.5 mm width with external power supply,for transmitting PT100 4-wire signals.Input temperature range -200...+800 °C.Analogue DC signals 0...10 V are available on the output side.Zero/span compensation with potentiometer.
