Weidmuller 8013140000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

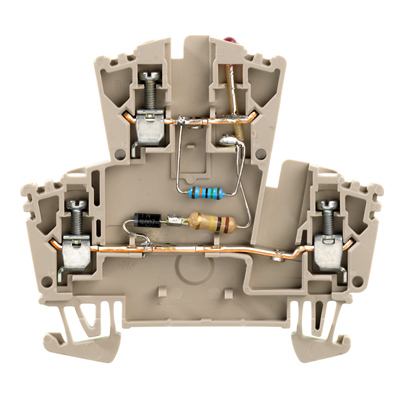

W-Series, Feed-through terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Screw connectionWDK 2.5 LD/RT 1D 2R 230
Weidmuller 8013140000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.
- 1.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
- Wire cross-section, finely stranded, two clampable wires, max.
- 1.5 mm²
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-27
- eClass 9.0
- 27-14-11-27
- eClass 9.1
- 27-14-11-47
- ETIM 6.0
- EC000903
- ETIM 7.0
- EC000903
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.13 mm²
- Connection direction
- on side
- Number of connections
- 3
- Stripping length
- 10 mm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Dimensions
- TS 35 offset
- 35.5 mm
Dimensions And Weights
- Depth
- 62.5 mm
- Depth (inches)
- 2.461 inch
- Height
- 69 mm
- Height (inches)
- 2.717 inch
- Net weight
- 11.71 g
- Width
- 5.1 mm
- Width (inches)
- 0.201 inch
Display Element
- Current
- 5 mA
- Indicator element
- red
- Operating voltage for display, max.
- 230 V
- Operating voltage for display, min.
- 230 V
- Type of voltage for indicator
- AC
Material Data
- Colour
- dark beige
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Power loss in accordance with IEC 60947-7-x
- 0.77 W
- Rated cross-section
- 2.5 mm²
- Rated voltage
- 24 V
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- Yes
- N-function
- No
- Number of clamping points per level
- 2
- Number of levels
- 2
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- Screw connection, with LED
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
