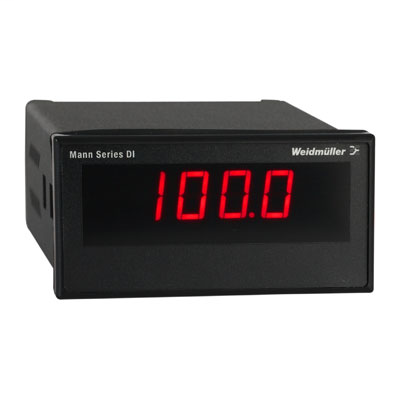

Weidmuller 7940010185
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Signal converter/insulator, 4...20 mADI350 4-20mA/0-100.0
Weidmuller 7940010185 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, CULUS, CULUSEX, EAC
- ROHS
- Conform
- UL File Number Search
- E256486
Classifications
- eClass 10.0
- 27-14-31-10
- eClass 9.0
- 27-14-31-10
- eClass 9.1
- 27-21-03-01
- ETIM 6.0
- EC000677
- ETIM 7.0
- EC000677
- UNSPSC
- 30-21-18-01
Connection Data
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping range, rated connection
- 1.5 mm²
- Type of connection
- Screw connection
Dimensions And Weights
- Height
- 48.8 mm
- Height (inches)
- 1.921 inch
- Length
- 137 mm
- Length (inches)
- 5.394 inch
- Net weight
- 338 g
- Weight
- 338 g
- Width
- 96.6 mm
- Width (inches)
- 3.803 inch
Display
- Display range
- -1999…1999
- Display value
- Percentage or real value display
- Format
- 1-line / decimal point: 1.000, 100.0, 10.00
- Type
- 3.5 digits, red LED, 14.2 mm
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Functions
- Step response time
- 200 ms (10...90 %)
- Temperature coefficient
- ≤ 0.02 % / °C
General Data
- Humidity
- 0...90 % (no condensation)
- Input/Output
- Voltage/current input
- Linearity
- < 0.1 % typ.
- Long-term drift
- 0.1 % / 10.000 h
- Power consumption
- 6 W @ 24 V DC
- Step response time
- 200 ms (10...90 %)
- Temperature coefficient
- ≤ 0.02 % / °C
- Type of connection
- Screw connection
- Voltage supply
- 24 V DC (12...35 V DC)
- Weight
- 338 g
Input
- Input resistance
- 22 Ω
- Input signal
- 4...20 mA
- Offset
- ± 1200 digital steps
- Supply voltage (loop-powered mode)
- 24 V DC (up to 25 mA)
- Type
- Analogue current signals
Insulation Coordination
- EMC standards
- DIN EN 61326
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
Loop Powered Mode
- Supply voltage (loop-powered mode)
- 24 V DC (up to 25 mA)
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E256486
Settings
- Offset
- ± 1200 digital steps
- Range of adjustment
- 20 - 2100 digital steps
Temperatures
- Humidity
- 0...90 % (no condensation)
- Operating temperature
- 0 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- 0 °C
- Storage temperature
- -25 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -25 °C
