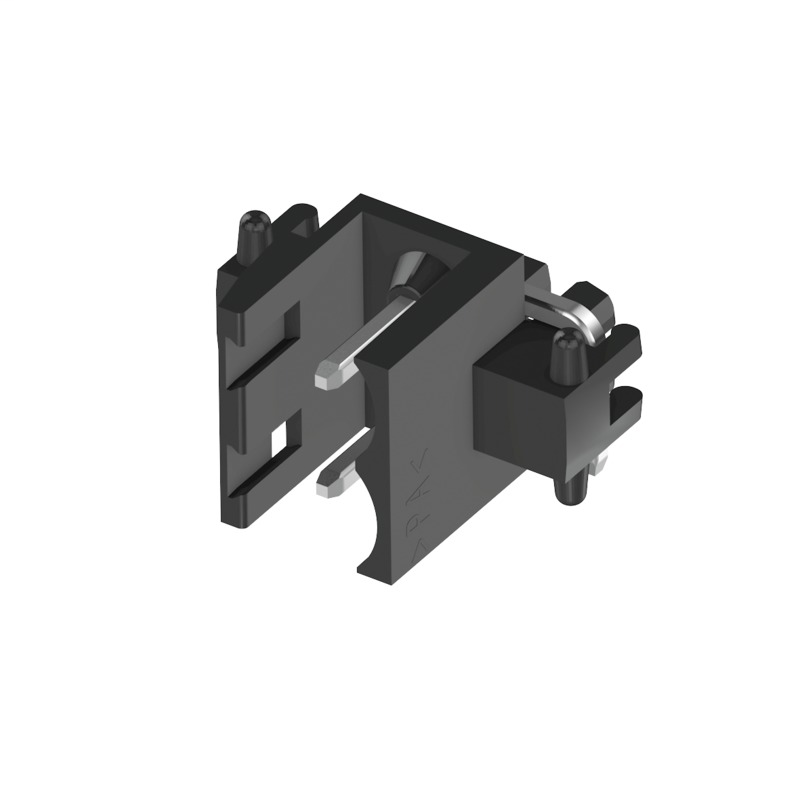

Weidmuller 7921760000

Approvals

• Approvals
  • cURus, EAC
• ROHS
  • Conform
• UL File Number Search
  • E60693

Classifications

• eClass 10.0
  • 27-44-04-02
• eClass 9.0
  • 27-44-04-02
• eClass 9.1
  • 27-44-04-02
• ETIM 6.0
  • EC002637
• ETIM 7.0
  • EC002637

Dimensions And Weights

• Net weight
  • 1.06 g

Material Data

• Coating
  • 4-6 μm SN
• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• Insulating material
  • PA
• Insulation strength
  • ≥ 108 Ω
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 100 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -25 °C

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Packing

• Packaging
  • Box
• VPE height
  • 125 mm
• VPE length
  • 35 mm
• VPE width
  • 90 mm

Rated Data Acc. To Csa

• Rated current (Use group B / CSA)
  • 12.5 A
• Rated current (Use group D / CSA)
  • 10 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group D / CSA)
  • 300 V

Rated Data Acc. To Iec

• Rated current, min. number of poles (Tu=20°C)
  • 16 A
• Rated current, min. number of poles (Tu=40°C)
  • 13 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 4 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 400 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 250 V
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Certificate No. (cURus)
  • E60693
• Institute (cURus)
  • cURus
• Rated current (Use group B / UL 1059)
  • 12.5 A
• Rated current (Use group D / UL 1059)
  • 10 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group D / UL 1059)
  • 300 V
• Reference to approval values
  • Specifications are maximum values, details - see approval certificate.

System Specifications

• Can be coded
  • Yes
• L1 in inches
  • 0.2 inch
• L1 in mm
  • 5.08 mm
• Mounting onto the PCB
  • THT solder connection
• Number of poles
  • 2
• Number of rows
  • 1
• Number of solder pins per pole
  • 1
• Outgoing elbow
  • 180°
• Outside diameter of solder pad
  • 1.7 mm
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.2 inch
• Pitch in mm (P)
  • 5.08 mm
• Plugging cycles
  • 25
• Product family
  • OMNIMATE Signal - series BL/SL 5.08
• Solder eyelet hole diameter (D)
  • 1.3 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • d = 1.2 mm
• Solder pin dimensions = d tolerance
  • 0 / -0,03 mm
• Solder pin length (l)
  • 2.4 mm
• Solder pin length tolerance
  • +0.1 / -0.3 mm
• Tolerance of solder pin position
  • ± 0.1 mm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Type of connection
  • Board connection
