Description

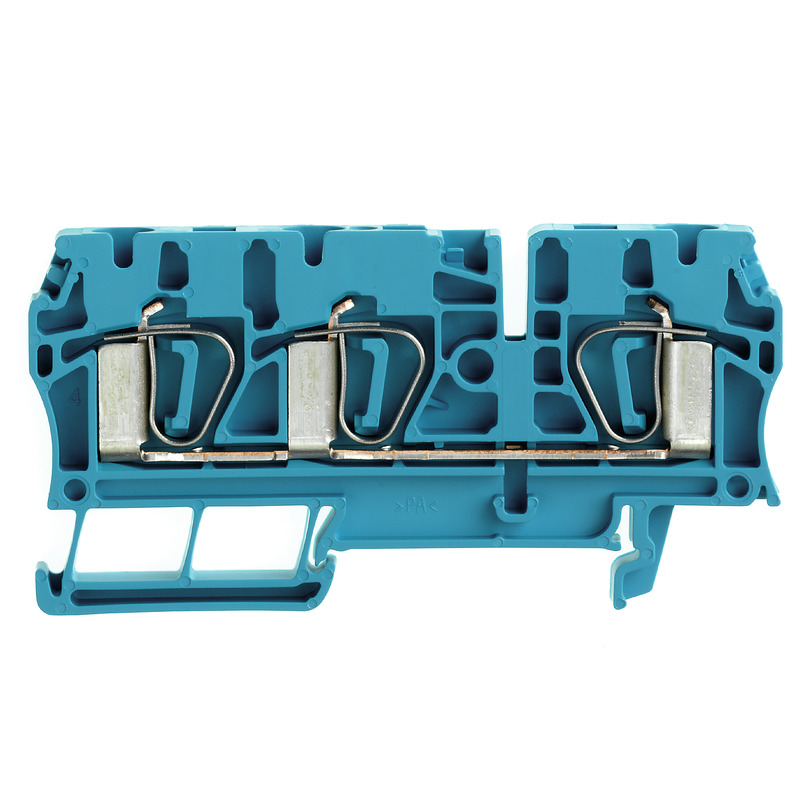

Feed-through terminal, Tension-clamp connection, 4 mm², 800 V, 32 A, blueZDU 4/3AN BL
Weidmuller 7904190000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- Yes
- Number of similar terminals
- 1
- Open sides
- right
- Type of mounting
- Snap-on
Approvals
- Approvals
- CE, CSA, CURUSEX, DEMKOATEX, EAC, EXIKONF, IECEXULD, KEMAATEX, KEMAKEUR, LLOYDSREG, RINA, UR
- ROHS
- Conform
- UL File Number Search
- E60693
Classifications
- eClass 10.0
- 27-14-11-20
- eClass 9.0
- 27-14-11-20
- eClass 9.1
- 27-14-11-20
- ETIM 6.0
- EC000897
- ETIM 7.0
- EC000897
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, max.
- 6 mm²
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 6 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Connection direction
- top
- Gauge to IEC 60947-1
- A4
- Number of connections
- 3
- Stripping length
- 12 mm
- Twin wire-end ferrules, max.
- 1.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Type of connection
- Tension-clamp connection
- Wire connection cross section AWG, max.
- AWG 10
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 6 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 6 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Csa Rating Data
- Certificate No. (CSA)
- 200039-1152892
- Current size B (CSA)
- 35 A
- Current size C (CSA)
- 35 A
- Current size D (CSA)
- 5 A
- Voltage size B (CSA)
- 600 V
- Voltage size C (CSA)
- 600 V
- Voltage size D (CSA)
- 600 V
- Wire cross section max. (CSA)
- 10 AWG
- Wire cross section min. (CSA)
- 26 AWG
Dimensions And Weights
- Depth
- 43 mm
- Depth (inches)
- 1.693 inch
- Depth including DIN rail
- 43.5 mm
- Height
- 83.5 mm
- Height (inches)
- 3.287 inch
- Net weight
- 17.11 g
- Width
- 6.1 mm
- Width (inches)
- 0.24 inch
Material Data
- Colour
- blue
- Material
- Wemid
- UL 94 flammability rating
- V-0
Rating Data
- Current at maximum wires
- 41 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 1.02 W
- Rated cross-section
- 4 mm²
- Rated current
- 32 A
- Rated impulse withstand voltage
- 8 kV
- Rated voltage
- 800 V
- Standards
- IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 1 mΩ
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- KEMA00ATEX2107U
- Certificate No. (IECEX)
- IECEXULD15.0008U
- Current (ATEX)
- 28 A
- Current (IECEX)
- 30 A
- Ex 2014/34/EU label
- II 2 G D
- Marking EN 60079-7
- Ex eb II C Gb
- Max. voltage (ATEX)
- 550 V
- Max. voltage (IECEX)
- 550 V
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Wire cross section max. (ATEX)
- 4 mm²
- Wire cross section max. (IECEX)
- 6 mm²
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- Yes
- Levels cross-connected internally
- No
- Number of clamping points per level
- 3
- Number of levels
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- Rail
- TS 35
- Version
- Tension-clamp connection, for plug-in cross-connector, One end without connector
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Operating temperature range
- For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring max. (UR)
- 10 AWG
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring max. (UR)
- 10 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
- Current size C (UR)
- 33 A
- Voltage size C (UR)
- 600 V
