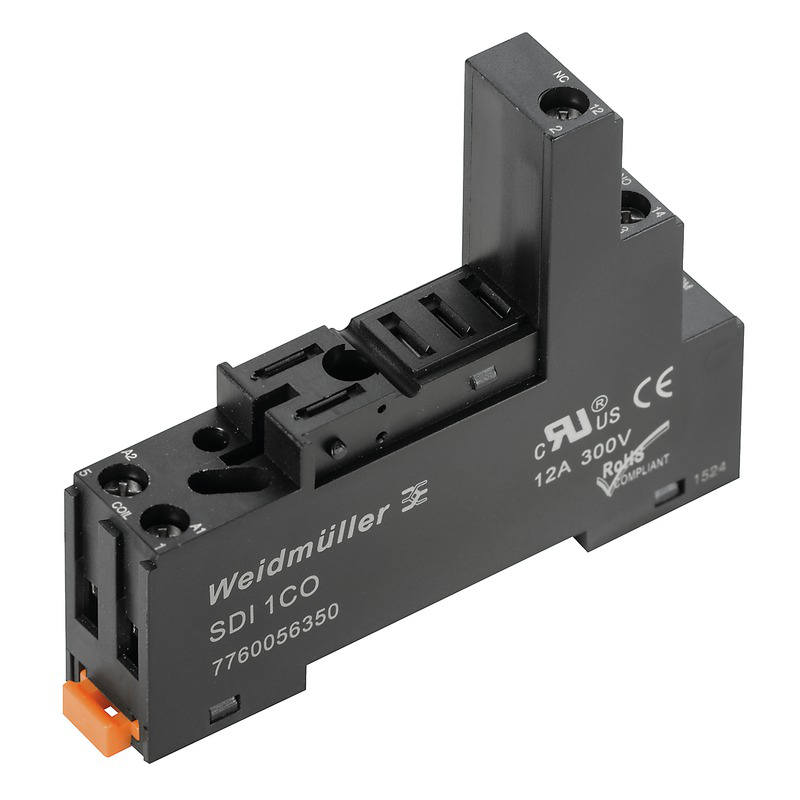

Weidmuller 7760056350
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
D-SERIES DRI, Relay bases, Number of contacts: 1 CO contact, Continuous current: 12 A, Screw connectionSDI 1CO
Weidmuller 7760056350 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E355547
Classifications
- eClass 10.0
- 27-37-16-03
- eClass 9.0
- 27-37-16-03
- eClass 9.1
- 27-37-16-03
- ETIM 6.0
- EC001456
- ETIM 7.0
- EC001456
Connection Data
- Blade size
- size PH1
- Clamping range, max.
- 4 mm²
- Clamping range, min.
- 0.25 mm²
- Clamping range, rated connection
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 4 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.25 mm²
- Gauge to IEC 60947-1
- A3
- Stripping length, rated connection
- 8 mm
- Tightening torque, max.
- 0.8 Nm
- Tightening torque, min.
- 0.5 Nm
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded, min.
- 0.25 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.25 mm²
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 4 mm²
- Wire cross-section, solid, min.
- 0.25 mm²
Contact Data
- Contact type
- 1 CO contact
Dimensions And Weights
- Depth
- 61 mm
- Depth (inches)
- 2.402 inch
- Height
- 80.2 mm
- Height (inches)
- 3.157 inch
- Net weight
- 35.6 g
- Width
- 15.8 mm
- Width (inches)
- 0.622 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Further Details Of Approvals / Standards
- Certificate No. (cURus)
- E355547
- Standards
- EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508
General Data
- Colour
- black
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 3 mm
- Dielectric strength, Input/Output
- 4 kVeff / 1 Min.
- Impulse withstand voltage
- 4.8 kV (1.2/50 µs)
- Insulating material group
- IIIb
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 250 V
- Surge voltage category
- III
Output
- Continuous current
- 12 A
- Max. switching voltage, AC
- 250 V
- Rated switching voltage
- 250 V AC
Rated Data Ul
- Certificate No. (cURus)
- E355547
Temperatures
- Humidity
- 35...85 % rel. humidity, no condensation
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
