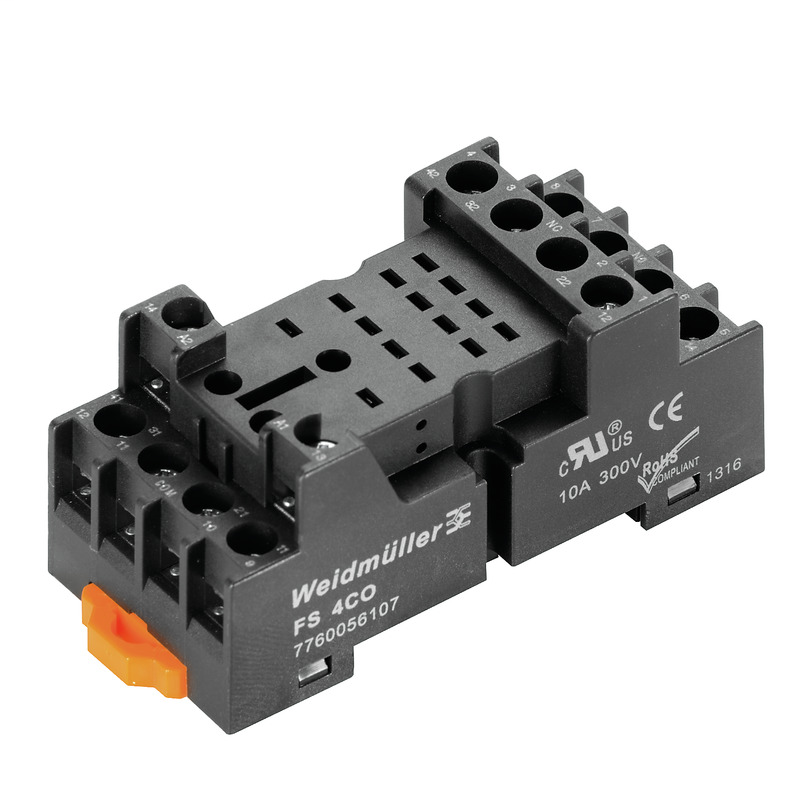

Weidmuller 7760056107
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
D-SERIES DRM, Relay bases, Number of contacts: 4, CO contact, Continuous current: 10 A, Screw connectionFS 4CO
Weidmuller 7760056107 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus
- ROHS
- Conform
- UL File Number Search
- E312083
Classifications
- eClass 10.0
- 27-37-16-03
- eClass 9.0
- 27-37-16-03
- eClass 9.1
- 27-37-16-03
- ETIM 6.0
- EC001456
- ETIM 7.0
- EC001456
Connection Data
- Blade size
- size PH1
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
- Stripping length, rated connection
- 7 mm
- Tightening torque, max.
- 0.8 Nm
- Tightening torque, min.
- 0.5 Nm
- Wire connection
- M3 forked cable lug (insulated)
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire cross-section, solid, min.
- 0.5 mm²
Contact Data
- Contact type
- 4 CO contact
Dimensions And Weights
- Depth
- 28.9 mm
- Depth (inches)
- 1.138 inch
- Height
- 70 mm
- Height (inches)
- 2.756 inch
- Net weight
- 48.1 g
- Width
- 30.6 mm
- Width (inches)
- 1.205 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Further Details Of Approvals / Standards
- Certificate No. (cURus)
- E312083
- Standards
- EN 60664-1:2007, EN 61000-6-2:2005, EN 61000-6-4:2007 + A1:2011, UL 508
General Data
- Colour
- black
- Rail
- TS 35
- UL 94 flammability rating
- V-0
- Version
- flat design
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 4 mm
- Dielectric strength, Input/Output
- 2 kVeff / 1 min
- Dielectric strength of neighbouring contacts
- 2 kVeff / 1 min
- Impulse withstand voltage
- 4 kV (1.2/50 µs)
- Pollution severity
- 2
- Protection degree
- IP10
- Surge voltage category
- II
Output
- Continuous current
- 10 A
- Max. switching voltage, AC
- 300 V
- Rated switching voltage
- 250 V AC
Product Information
- Product information
- The protection module (RC filter) RIM 3 110/230VAC LED with order no. 7760056045 is not compatible with this socket.For this socket, a cross connection is not available.
Rated Data Ul
- Certificate No. (cURus)
- E312083
Temperatures
- Operating temperature
- -40 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -40 °C
