Weidmuller 7760054306
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

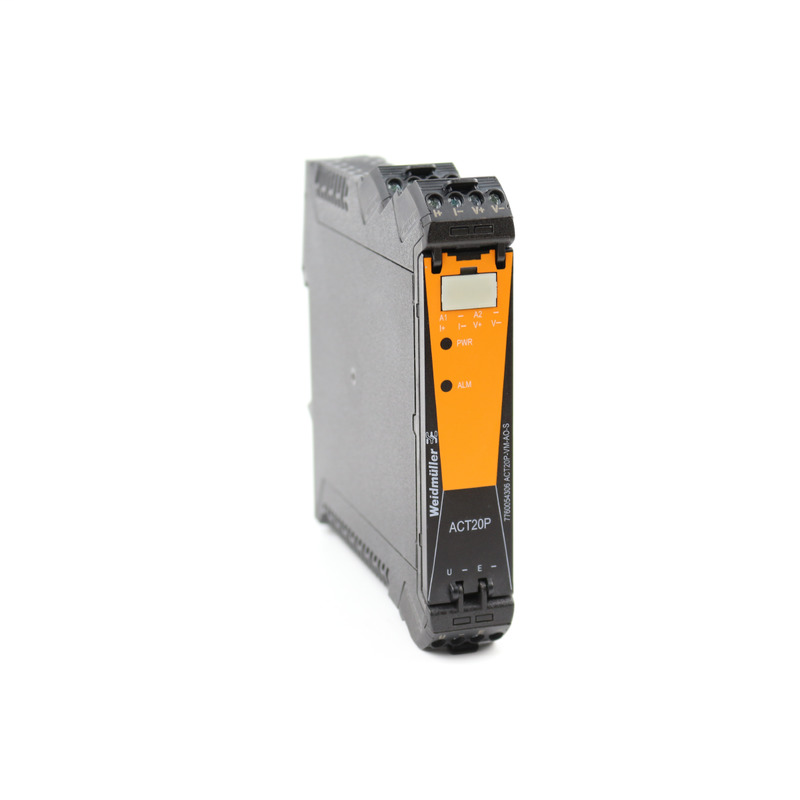

Signal converter/insulator, Input: AC/DC voltage, Output: 4 - 20 mAACT20P-VM-AO-S
Weidmuller 7760054306 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-21-01-20
- eClass 9.0
- 27-21-01-20
- eClass 9.1
- 27-21-01-20
- ETIM 6.0
- EC002653
- ETIM 7.0
- EC002653
Connection Data
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.5 mm²
- Clamping range, rated connection
- 1.5 mm²
- Tightening torque, max.
- 0.6 Nm
- Tightening torque, min.
- 0.4 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section AWG, min.
- AWG 26
Dimensions And Weights
- Depth
- 114.3 mm
- Depth (inches)
- 4.5 inch
- Height
- 119.2 mm
- Height (inches)
- 4.693 inch
- Net weight
- 110 g
- Width
- 22.5 mm
- Width (inches)
- 0.886 inch
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
General Data
- Accuracy
- 0.5 % FSR
- Configuration
- With FDT/DTM software
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Power consumption
- ≤ 100 mA @ 24 VDC, ≤ 120mA @ 24V AC
- Rail
- TS 35
- Step response time
- < 300 ms
- Temperature coefficient
- ≤ 200 ppm/K
- Voltage supply
- 24…240 VUC (±10%)
Input
- Input resistance
- 1 MΩ±5%
- Input signal
- UDC, UACEffective value (sinusoidal only) 40-60 Hz
- Input voltage
- 0…30 V DC, 0…60 V DC, 0…150 V DC, 0…300 V DC, 0…440 V DC, 0…660 V DC, 0…60 V AC, 0…144 V AC, 0…300 V AC, 0…440 V AC
- Number of inputs
- 1
Insulation Coordination
- EMC standards
- IEC 61000-6 /-2, IEC 61000-6-4, IEC 61326-1
- Galvanic isolation
- 3-way isolator, between input ⁄ output ⁄ supply
- Impulse withstand voltage
- 4 kV (1.2 / 50 μs) input - output/ supply, 6 kV (input - output), 1.2/50 µs
- Insulation voltage input or output/supply
- 2.2 kVAC, 1 min, 50 Hz
- Pollution severity
- 2
- Rated voltage
- 300 VAC (supply-output), 500 VAC (supply-input; input-output)
- Surge voltage category
- III
Output
- load impedance current
- ≤ 500 Ω
- load impedance voltage
- ≥ 10 kΩ
- Number of outputs
- 1
- Output current
- 0(4)...20 mA
- Output voltage, note
- 0...10 V
Product Information
- Product information
- The analogue voltage converter ACT20P-VM-AO-S measures DC or AC voltages. The analogue input signal is linearly converted into an analogue output signal (current or voltage) and galvanically isolated. Features Configuration and monitoring are performed via FDT/DTM-Software „WI-Manager“. Signal and alarm triggering upon exceeding limit values or reverse polarity DC input voltage Front LED indicates operation status 3-way galvanic isolation between input, output and power supply.
