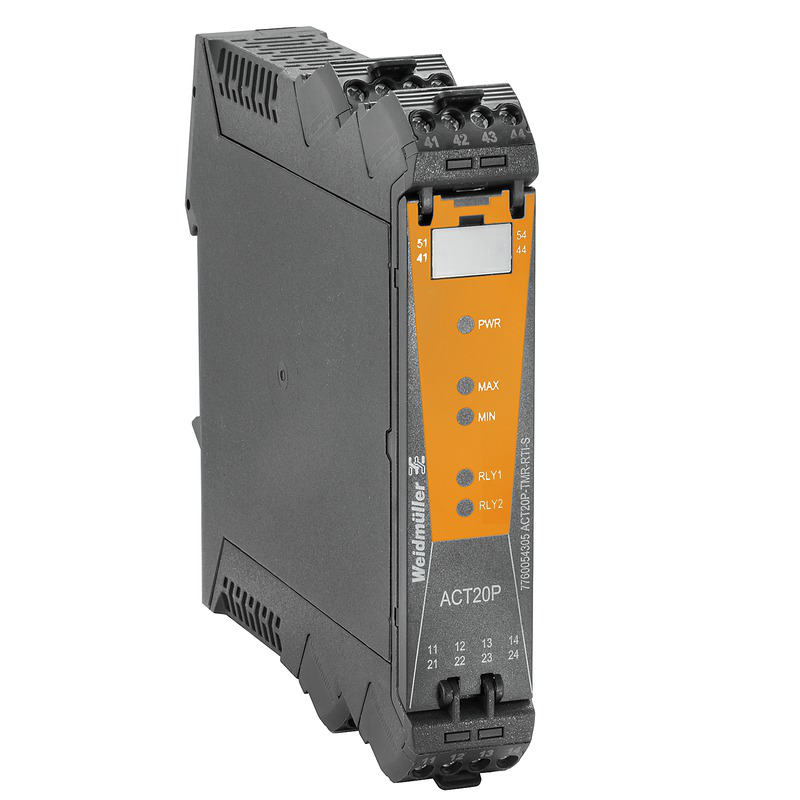

Weidmuller 7760054305

Approvals

• Approvals
  • CE, EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-29
• eClass 9.0
  • 27-21-01-29
• eClass 9.1
  • 27-21-01-29
• ETIM 6.0
  • EC002919
• ETIM 7.0
  • EC002919

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 114.3 mm
• Depth (inches)
  • 4.5 inch
• Height
  • 119.2 mm
• Height (inches)
  • 4.693 inch
• Net weight
  • 110 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • 0.2% FSR, ≤ 2 °C (PT100), ≤ 8 Ω (PTC)
• Configuration
  • With FDT/DTM software
• Galvanic isolation
  • 3-way isolator, between input ⁄ output ⁄ supply
• Power consumption
  • ≤ 100 mA @ 24 VDC, ≤ 120mA @ 24V AC
• Rail
  • TS 35
• Step response time
  • ≤ 500 ms
• Temperature coefficient
  • ≤ 100 ppm/K
• Voltage supply
  • 20…264 VUC

Input

• Number of inputs
  • 1
• Sensor
  • PT100 / 2-/3-/4-wire, PTC: 0…4 kΩ
• Temperature input range
  • Configurable, PT100: -200°C…850 °C

Insulation Coordination

• EMC standards
  • IEC 61326-1
• Galvanic isolation
  • 3-way isolator, between input ⁄ output ⁄ supply
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)
• Insulation voltage
  • 2 kV (Input /Output), 1 min, 50 Hz
• Pollution severity
  • 2
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Output (Digital)

• Alarm function
  • Alarm range: -200…850 °C, Top and bottom limit values, window range, Hysteresis: 2 °C (adjustable), Alarm delay: 0...10 s
• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 30 V
• Number of digital outputs
  • 2
• Rated switching current
  • 5 A
• Type
  • 2 x 1 - or 1 x 2 changeover contact relay

Product Information

• Product information
  • The ACT20P-TMR-RTI-S device records temperature sensor signals (Pt100, PTC). It has two independent relay outputs which emit an alarm when levels exceed or fall below pre-set temperature limits. Features Configuration and monitoring are performed via FDT/DTM-Software „WI-Manager“. Operational status and relay status indicated by front panel LEDs. 4-way galvanic isolation between input, output and power supply.

Temperatures

• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Operating temperature
  • -25 °C...65 °C
• Operating temperature, max.
  • 65 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
