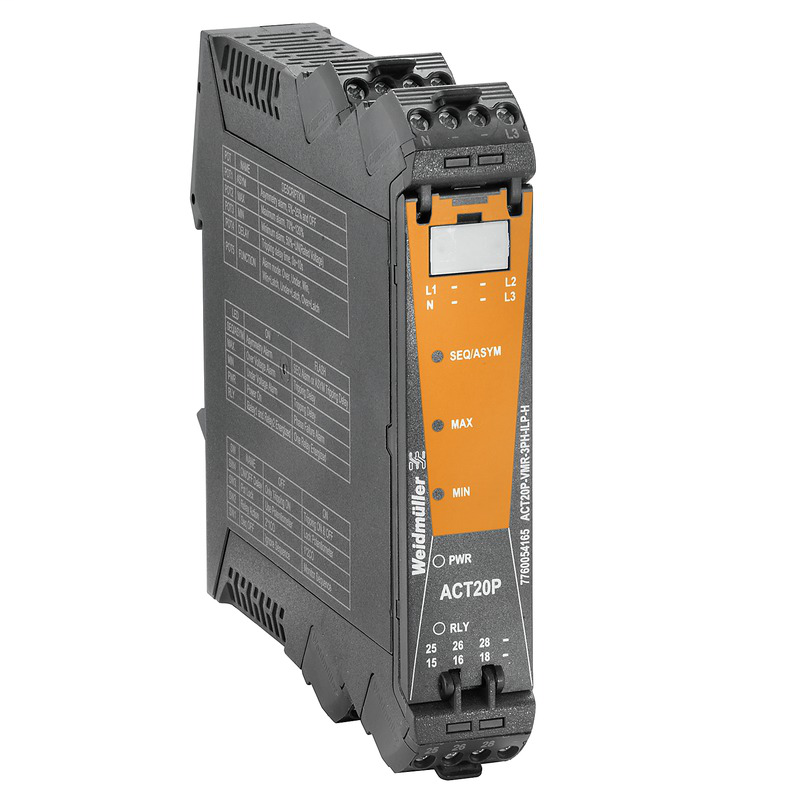

Weidmuller 7760054165

Approvals

• Approvals
  • EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-22
• eClass 9.0
  • 27-21-01-22
• eClass 9.1
  • 27-21-01-22
• ETIM 6.0
  • EC002654
• ETIM 7.0
  • EC002654

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 114.3 mm
• Depth (inches)
  • 4.5 inch
• Height
  • 117 mm
• Height (inches)
  • 4.606 inch
• Net weight
  • 233 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • 3 % *Urated voltage
• Configuration
  • DIP switch and potentiometer
• Galvanic isolation
  • 2-way isolator, between input/output
• Measurement calibration
  • max: 70…120% *Urated voltage, min: 50…100% *Urated voltage
• Power consumption
  • ≤ 3VA
• Rail
  • TS 35
• Repeat accuracy
  • 2 % *Urated voltage
• Step response time
  • ≤ 100 ms
• Temperature coefficient
  • 350 ppm/K
• Unbalanced
  • Hysteresis: 5%, Phase imbalance in range of adjustment: 5...25%, OFF
• Voltage supply
  • supplied from voltage measurement inputs

Input

• Input frequency
  • 40…60 Hz
• Input measurement range
  • 200…480 VAC
• Input resistance, voltage
  • ≥1,8MΩ
• Input voltage
  • 180…500 VAC
• Number of inputs
  • 1
• Type
  • 3-phase, AC voltage

Insulation Coordination

• EMC standards
  • EN 61326-1
• Galvanic isolation
  • 2-way isolator, between input/output
• Impulse withstand voltage
  • 6 kV (input - output), 4 kV (output 1- output 2), 1.2/50 µs
• Insulation voltage
  • 2.5 kV (input / output)
• Pollution severity
  • 2
• Rated voltage
  • 600 VAC (input - output), 300 VAC (output 1 - output 2)
• Surge voltage category
  • III

Output (Digital)

• Alarm function
  • Top and bottom limit values, window range, Holding function can be activated, Phase error, Phase sequence, Asymmetry, Alarm delay: 0...10 s
• Hysteresis
  • 5 % @ Phase asymmetry
• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 30 V
• Number of digital outputs
  • 2
• Rated switching current
  • 5 A
• Switching thresholds
  • Adjustable, MIN = 50…100 % x URated input voltage (undervoltage alarm), MAX = 70…120 % x URated input voltage (overvoltage alarm)
• Type
  • 2 x 1 - or 1 x 2 changeover contact relay, Relay polarity can be inverted

Product Information

• Product information
  • ACT20P-VMR-3PH-ILP-H is a three-phase voltage setpoint limit monitor relay (3-phase or 3-phase plus zero conductor). The device is powered by the input measuring circuit. The device incorporates two separate relay outputs which trigger an alarm upon phase asymmetry, phase loss, phase sequence errors and phase angle errors and when exceeding or falling below preset voltage limit values. The alarm can also be set to trigger after an adjustable time delay. Features Supply from the input measuring circuit Manual front-sided configuration via DIP switch, potentiometer and rotary switch Various alarm functions: phase asymmetry, phase loss, phase sequence errors, phase angle errors, alarm delay, upper/lower limit value alarm, window alarm Front LEDs indicates operation status and malfunction. 3-way galvanic isolation between input, output 1 and output 2.

Temperatures

• Humidity
  • 5...85 % rel. humidity, no condensation
• Operating temperature
  • -25 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
