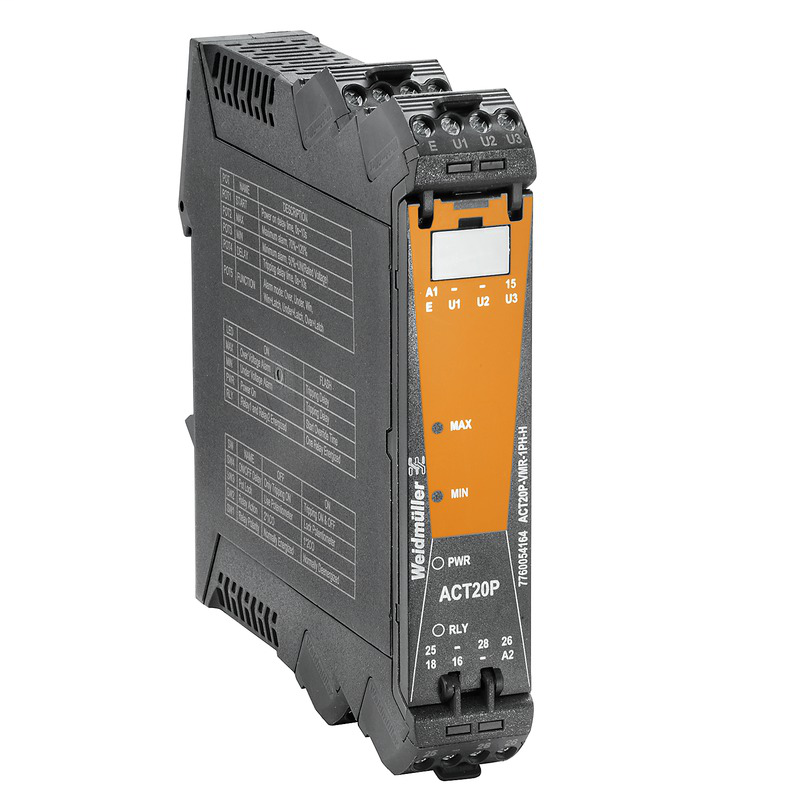

Weidmuller 7760054164

Approvals

• Approvals
  • EAC
• ROHS
  • Conform

Classifications

• eClass 10.0
  • 27-21-01-22
• eClass 9.0
  • 27-21-01-22
• eClass 9.1
  • 27-21-01-22
• ETIM 6.0
  • EC002654
• ETIM 7.0
  • EC002654

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 114.3 mm
• Depth (inches)
  • 4.5 inch
• Height
  • 117 mm
• Height (inches)
  • 4.606 inch
• Net weight
  • 198.7 g
• Width
  • 22.5 mm
• Width (inches)
  • 0.886 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • 3 % *Urated voltage
• Configuration
  • DIP switch and potentiometer
• Galvanic isolation
  • 3-way isolator, between input ⁄ output ⁄ supply
• Measurement calibration
  • max: 70…120% *Urated voltage, min: 50…100% *Urated voltage
• Power consumption
  • ≤ 100 mA @ 24 VDC, ≤ 120mA @ 24V AC
• Rail
  • TS 35
• Repeat accuracy
  • 2 % *Urated voltage
• Step response time
  • < 220 ms (10...90 %)
• Temperature coefficient
  • 350 ppm/K
• Voltage supply
  • 24…240 VUC ±10%

Input

• Input frequency
  • 40…60 Hz, DC
• Input measurement range
  • 50…120% Urated voltage
• Input resistance, voltage
  • 1 MΩ±5%
• Input voltage
  • Channel 1: (U1-E): 110V AC/DC, Channel 2: (U2-E): 240V AC/DC, Channel 3 1: (U3-E): 400V AC/DC
• Number of inputs
  • 1
• Type
  • single-phase

Insulation Coordination

• EMC standards
  • IEC 61326-1
• Galvanic isolation
  • 3-way isolator, between input ⁄ output ⁄ supply
• Impulse withstand voltage
  • Supply⁄output: 4 kV; input/output, input/output: 6 kV, 1.2/50 µs
• Insulation voltage
  • 2.5 kV (input / output), 2 kV input / output/ power supply
• Pollution severity
  • 2
• Rated voltage
  • 300 VAC (output 1 - output 2), 300 VAC (supply-output), 500 VAC (supply-input; input-output)
• Surge voltage category
  • III

Output (Digital)

• Alarm function
  • Top and bottom limit values, window range, Holding function can be activated, Alarm delay: 0...10 s
• Hysteresis
  • 5% of final value
• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 30 V
• Number of digital outputs
  • 2
• Rated switching current
  • 5 A
• Switching thresholds
  • Adjustable, MIN = 50…100 % x URated input voltage (undervoltage alarm), MAX = 70…120 % x URated input voltage (overvoltage alarm)
• Type
  • 2 x 1 - or 1 x 2 changeover contact relay, Relay polarity can be inverted

Product Information

• Product information
  • The ACT20P-VMR-1PH-H is a monitoring relay for DC voltage or single-phase AC voltage. The device has two independent relay outputs which emit an alarm when levels exceed or fall below preset voltage limits. The alarm can also be set to trigger after an adjustable time delay. Features Manual front-sided configuration via DIP switch, potentiometer and rotary switch Various alarm functions: upper/lower limit value alarm, window alarm Adjustable start and alarm delay Front LEDs indicates operation status and malfunction[ 4-way galvanic isolation between input, output 1, output 2 and power supplywitch

Temperatures

• Humidity
  • 5...85 % rel. humidity, no condensation
• Operating temperature
  • -25 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -25 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
