Weidmuller 7760054114

Approvals

• Approvals
  • CE, CULUS, EAC
• ROHS
  • Conform
• UL File Number Search
  • E366074

Classifications

• eClass 10.0
  • 27-21-01-20
• eClass 9.0
  • 27-21-01-20
• eClass 9.1
  • 27-21-01-20
• ETIM 6.0
  • EC002653
• ETIM 7.0
  • EC002653

Connection Data

• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.5 mm²
• Clamping range, rated connection
  • 2.5 mm²
• Tightening torque, max.
  • 0.6 Nm
• Tightening torque, min.
  • 0.4 Nm
• Type of connection
  • Screw connection
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 26

Dimensions And Weights

• Depth
  • 113.7 mm
• Depth (inches)
  • 4.476 inch
• Height
  • 117.2 mm
• Height (inches)
  • 4.614 inch
• Net weight
  • 142 g
• Weight
  • 110 g
• Width
  • 12.5 mm
• Width (inches)
  • 0.492 inch

Environmental Product Compliance

• REACH SVHC
  • Lead 7439-92-1

General Data

• Accuracy
  • < 0.1 % of end value
• Configuration
  • none
• Current consumption
  • ≤60 mA (24V power supply, 20mA output)
• Galvanic isolation
  • 3-way isolator, between input ⁄ output ⁄ supply
• Rail
  • TS 35
• Step response time
  • ≤ 0,5 ms
• Temperature coefficient
  • 80 ppm/K
• Voltage supply
  • 20…30 V DC

Input

• Input current
  • 0...20 mA, 4…20mA
• Input signal
  • 2-/3-wire transmitter, HART signal® bidirectional
• Number of inputs
  • 1
• Sensor supply
  • > 17 V DC at 20 mA, max 30 V @ open circuit, max 50 mA @ short-circuit
• Voltage drop
  • ca. 3.8 V @ RLoad = 0 Ω; ca. 15 V @ RLoad = 600 Ω; (Iinput = 20 mA)

Insulation Coordination

• EMC standards
  • EN 61010-1:2011, UL 61010-1, EN 61326-1
• Galvanic isolation
  • 3-way isolator, between input ⁄ output ⁄ supply
• Impulse withstand voltage
  • 4 kV (1.2/50 µs)
• Insulation voltage
  • 2 kV inputs / outputs / power supply
• Pollution severity
  • 2
• Surge voltage category
  • III

Output

• load impedance current
  • ≤ 550 Ω
• Number of outputs
  • 1
• Output current
  • 0...20 mA, 4...20 mA, HART® digital signal

Product Information

• Product information

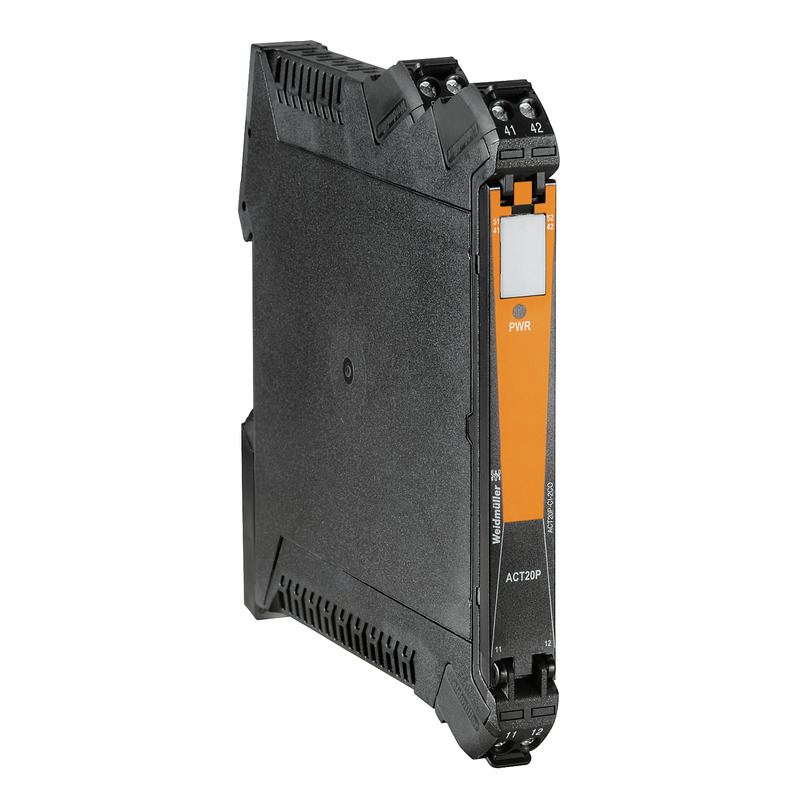

  • The non-adjustable DC isolating amplifier ACT20P-CI-CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is linearly converted into an analogue output current signal and is galvanically isolated. The power supply is galvanically isolated from the input and output (3-way isolation). Properties HART-compatible for 0.5 - 2.5 kHz The active or passive mA signal inputs are fully galvanically isolated. Operating status display on a front panel LED Galvanic 3-way isolation between input, output and supply.

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E366074

Temperatures

• Humidity
  • 5...95 %, no condensation
• Operating temperature
  • -20 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -20 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
