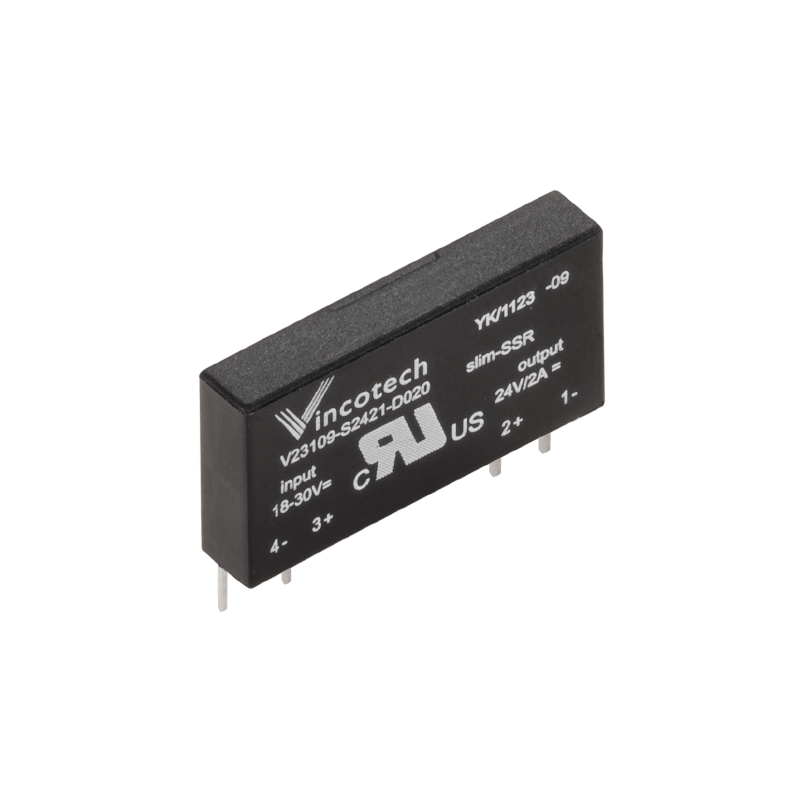

Weidmuller 4061180000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
TERMSERIES, solid-state relais, 1 NO contact (Bipolar transistor), Rated control voltage: 18 V DC...24 V DC...30 V DC , Rated switching voltage: 0…48 V DC, Continuous current: 100 mA, Plug-in connectionSSS RELAIS 24V/24V 0,1ADC
Weidmuller 4061180000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-37-16-04
- eClass 9.0
- 27-37-16-04
- eClass 9.1
- 27-37-16-04
- ETIM 6.0
- EC001504
- ETIM 7.0
- EC001504
- UNSPSC
- 30-21-18-01
Connection Data
- Wire connection method
- Plug-in connection
Contact Data
- Contact type
- 1 NO contact (Bipolar transistor)
Control Side
- Nominal control current
- 7 mA DC (±10 %)
- Power rating
- 170 mW
- Rated control voltage
- 18 V DC...24 V DC...30 V DC
- Status indicator
- No
Dimensions And Weights
- Depth
- 15 mm
- Depth (inches)
- 0.591 inch
- Height
- 28 mm
- Height (inches)
- 1.102 inch
- Net weight
- 3.53 g
- Width
- 5 mm
- Width (inches)
- 0.197 inch
General Data
- Colour
- black
Insulation Coordination
- Clearance and creepage distances for control side - load side
- ≥ 5.5 mm
- Dielectric strength for control side - load side
- 2.5 kVeff
Load Side
- Continuous current
- 100 mA
- Leakage current
- < 10 µA
- Min. switching current
- 500 µA
- Protective circuit, load side
- Free-wheeling diode
- Rated switching current
- 100 mA/ DC
- Rated switching voltage
- 0…48 V DC
- Short-circuit-proof
- No
- Switch-off delay
- < 355 µs
- Switch-on delay
- < 35 µs
- Voltage drop at max. load
- ≤ 1 V
Probability Of Failure
- MTTF
- 4,298 Years
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature
- -20 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -20 °C
- Storage temperature
- -40 °C...70 °C
- Storage temperature, max.
- 70 °C
- Storage temperature, min.
- -40 °C
