Weidmuller 4027750000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

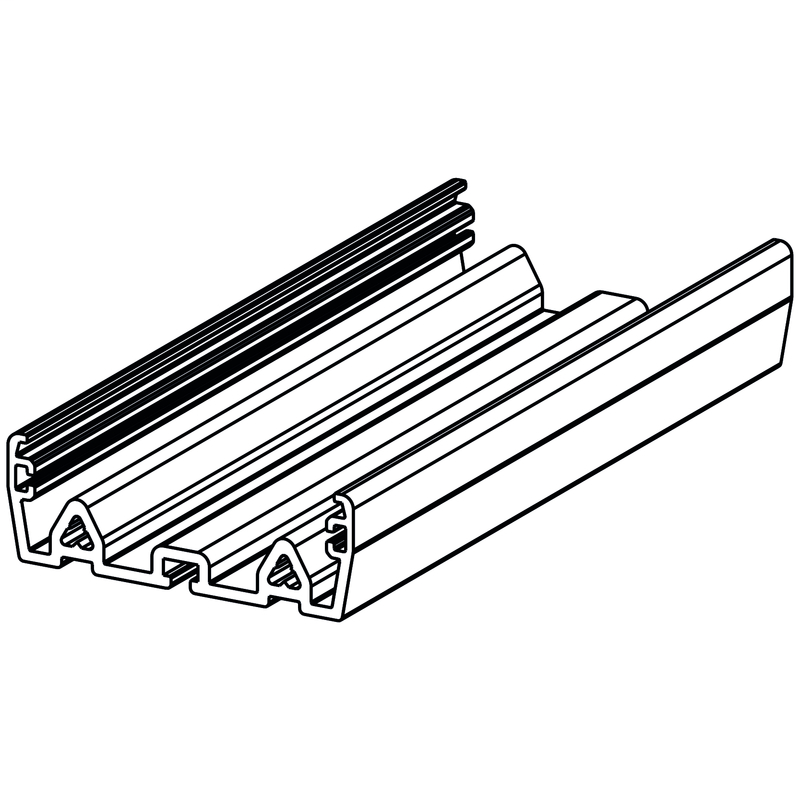

Electronics housings, RS 45 Pebble grey, Extruded profile, Width: 45 mmPF RS 45 GR 2000MM
Weidmuller 4027750000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-18-27-92
- eClass 9.0
- 27-18-27-90
- eClass 9.1
- 27-18-27-90
- ETIM 6.0
- EC002779
- ETIM 7.0
- EC002779
- UNSPSC
- 30-21-18-01
Dimensions And Weights
- Height
- 25 mm
- Height (inches)
- 0.984 inch
- Length
- 2,000 mm
- Length (inches)
- 78.74 inch
- Net weight
- 239.5 g
- Width
- 45 mm
- Width (inches)
- 1.772 inch
Material Data
- Colour
- Pebble grey
- Colour chart (similar)
- RAL 7032
- Comparative Tracking Index (CTI)
- ≥ 600
- Insulating material
- PVC
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -50 °C
- Storage temperature, max.
- 55 °C
- Storage temperature, min.
- -25 °C
- Temperature range, installation, max.
- 60 °C
- Temperature range, installation, min.
- -25 °C
- UL 94 flammability rating
- V-0
Notes
- Descriptive text technical data
- 3 heights are available for the cover profile and the end plates:TS mounting: TS 32 = 45 mm, TS35x7.5 = 40.5 mmDirect mounting: 24 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 42 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 159 mm
System Characteristics
- Contact to terminal rail
- No
- Cross-connection
- No
- Encapsulation option
- No
- Number of PCBs per module
- 1
- PCB thickness
- 1.6 mm
- Protection degree
- IP20
- Tolerance for the PCB shape
- ±0.2
- Version
- Extruded profile
