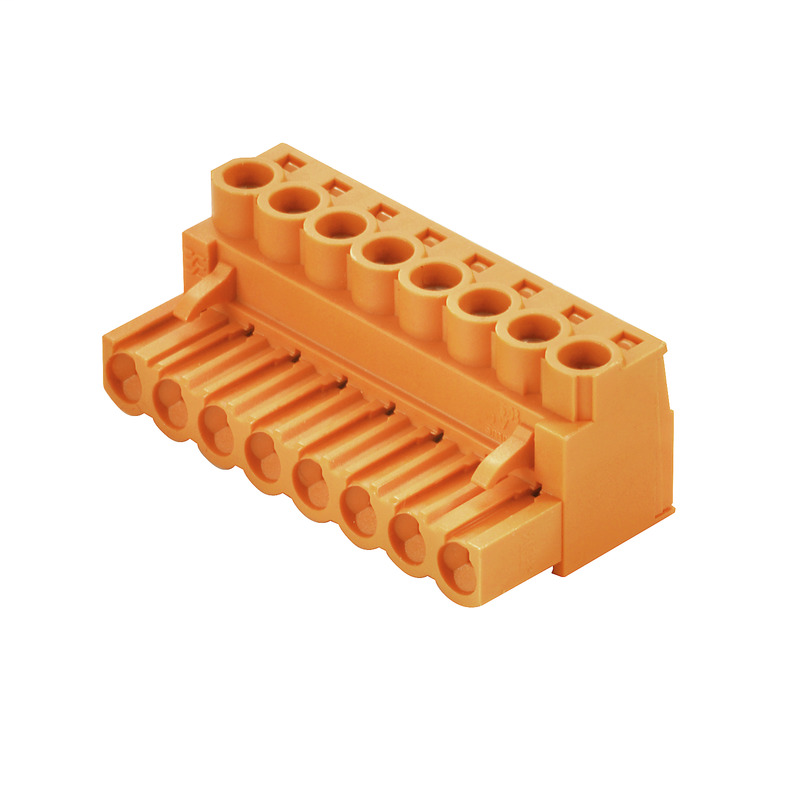

Weidmuller 2699540000

Conductors Suitable For Connection

• Clamping range, max.
  • 4 mm²
• Clamping range, min.
  • 0.13 mm²
• Flexible, max. H05(07) V-K
  • 4 mm²
• Flexible, min. H05(07) V-K
  • 0.2 mm²
• Max. clamping range
  • 4 mm²
• Plug gauge in accordance with EN 60999 a x b; ø
  • 2.8 mm x 2.4 mm
• Reference text
  • The outside diameter of the plastic collar should not be larger than the pitch (P).
• Solid, max. H05(07) V-U
  • 4 mm²
• Solid, min. H05(07) V-U
  • 0.2 mm²
• Wire connection cross section AWG, max.
  • AWG 12
• Wire connection cross section AWG, min.
  • AWG 30
• w. plastic collar ferrule, DIN 46228 pt 4, max.
  • 2.5 mm²
• w. plastic collar ferrule, DIN 46228 pt 4, min.
  • 0.2 mm²
• w. wire end ferrule, DIN 46228 pt 1, max.
  • 4 mm²
• w. wire end ferrule, DIN 46228 pt 1, min.
  • 0.2 mm²

Dimensions And Weights

• Depth
  • 20.1 mm
• Depth (inches)
  • 0.791 inch
• Height
  • 16 mm
• Height (inches)
  • 0.63 inch
• Net weight
  • 22.065 g
• Width
  • 71.12 mm
• Width (inches)
  • 2.8 inch

Material Data

• Colour
  • green
• Colour chart (similar)
  • RAL 6032
• Comparative Tracking Index (CTI)
  • ≥ 200
• Contact material
  • Au (Gold)
• Contact surface
  • Gold-plated
• Insulating material
  • PBT
• Insulating material group
  • IIIa
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 2-3 µm Ni / 1.5- µm Au
• Max. relative humidity during storage
  • 80 %
• Operating temperature, max.
  • 100 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 100 °C
• Temperature range, installation, min.
  • -25 °C

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Additional colours on request Gold-plated contact surfaces on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

Packing

• Packaging
  • Box
• VPE height
  • 0
• VPE length
  • 0
• VPE width
  • 0

Rated Data Acc. To Csa

• Rated current (Use group B / CSA)
  • 20 A
• Rated current (Use group D / CSA)
  • 20 A
• Rated voltage (Use group B / CSA)
  • 300 V
• Rated voltage (Use group C / CSA)
  • 50 V
• Rated voltage (Use group D / CSA)
  • 300 V
• Wire cross-section, AWG, max.
  • AWG 12
• Wire cross-section, AWG, min.
  • AWG 30

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 18 A
• Rated current, max. number of poles (Tu=40°C)
  • 16 A
• Rated current, min. number of poles (Tu=20°C)
  • 23 A
• Rated current, min. number of poles (Tu=40°C)
  • 21 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 4 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 4 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 400 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 320 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 250 V
• Short-time withstand current resistance
  • 3 x 1s with 120 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Rated current (Use group B / UL 1059)
  • 20 A
• Rated current (Use group D / UL 1059)
  • 10 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group D / UL 1059)
  • 300 V
• Wire cross-section, AWG, max.
  • AWG 12
• Wire cross-section, AWG, min.
  • AWG 26

System Parameters

• Can be coded
  • Yes
• Clamping screw
  • M 2.5
• Conductor outlet direction
  • 180°
• L1 in inches
  • 2.6 inch
• L1 in mm
  • 66.04 mm
• Number of poles
  • 14
• Number of rows
  • 1
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.2 inch
• Pitch in mm (P)
  • 5.08 mm
• Plugging cycles
  • 25
• Plugging force/pole, max.
  • 10 N
• Product family
  • OMNIMATE Signal - series BL/SL 5.08
• Pulling force/pole, max.
  • 9 N
• Rated cross-section
  • 4 mm²
• Screwdriver blade
  • 0.6 x 3.5, PH 1, PZ 1
• Screwdriver blade standard
  • DIN 5264, ISO 8764/2-PH, ISO 8764/2-PZ
• Stripping length
  • 7 mm
• Tightening torque, max.
  • 0.5 Nm
• Tightening torque, min.
  • 0.4 Nm
• Touch-safe protection acc. to DIN VDE 57 106
  • Safe from finger touch
• Type of connection
  • Field connection
• Volume resistance
  • 5.00 mΩ
• Wire connection method
  • Clamping yoke connection
