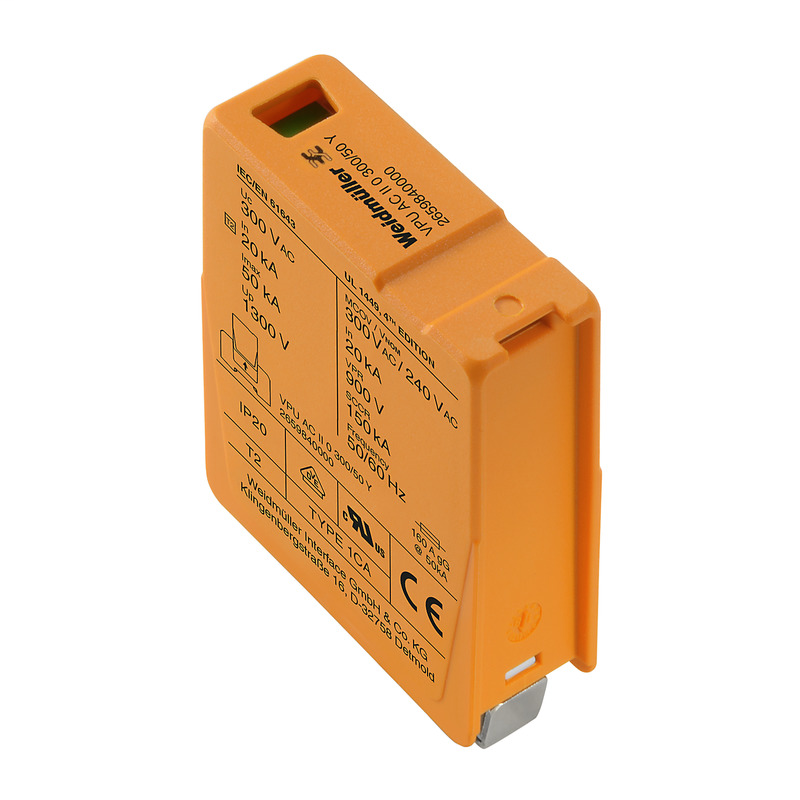

Weidmuller 2659840000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Spare arrester, Surge protection, UP(L/N-PE) ≤ 1.5 kVVPU AC II 0 300/50 Y
Weidmuller 2659840000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE, cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E354261
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
Connection Data
- Type of connection
- Plug-in connection
Dimensions And Weights
- Depth
- 64 mm
- Depth (inches)
- 2.52 inch
- Height
- 45 mm
- Height (inches)
- 1.772 inch
- Net weight
- 54 g
- Width
- 18 mm
- Width (inches)
- 0.709 inch
General Data
- Altitude
- ≤ 4000 m
- Colour
- blue
- Optical function display
- green = ok, yellow = warning, red = arrester is defective - replace.
- Protection degree
- IP20 in installed state
- Segment
- Power distribution
- UL 94 flammability rating
- V-0
- Version
- Surge protection
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Rated Data Iec / En
- Discharge current I
- 25 kA
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Fuse
- 100 A gL
- Leakage current at U
- 0.1 µA
- Max. continuous voltage, Uc (N-PE)
- 300 V
- Protection level U
- ≤ 1.5 kV
- Rated voltage (AC)
- 230 V
- Requirements category acc. to IEC 61643-11
- Type II
- Requirements class, acc. to EN 61643-11
- T2
- Response time
- ≤ 100 ns
- Short-circuit current rating I
- 0.1 kA
- SPD type
- T2
- Standards
- IEC61643-11, EN61643-11
- Temporary surge voltage (over-voltage) - TOV
- 1,200 V
- Voltage type
- AC
Rated Data Ul
- Category
- SPD TYPE 1CA
- Certificate No. (cURus)
- E354261
- I
- 20 kA
- MCOV (N-PE)
- 300 V
- Rated Voltage U
- 240 V
- SCCR
- 150 kA
- Voltage type
- AC
- VPR (L/N-PE)
- 900 V
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
