Weidmuller 2634120000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

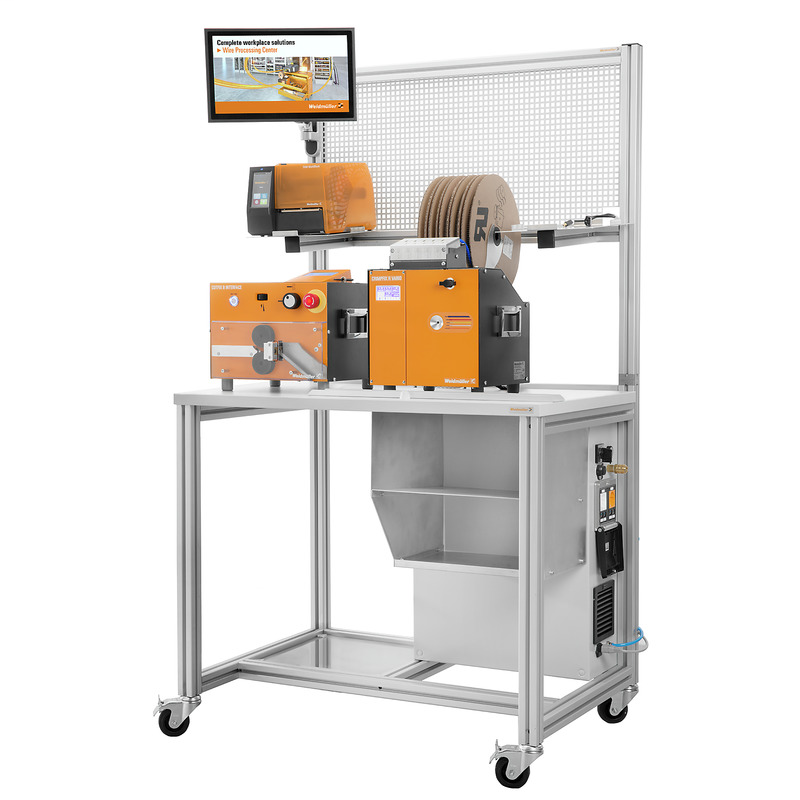

Automatic machines, Cutting machine, Automatic stripper and crimper, Thermotransfer printer, SoftwareWIRE PROCESSING CENTER
Weidmuller 2634120000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Automatic Cutting
- Aperture (max. diameter)
- 8 mm outer diameter
- Compressed-air connection
- 5.5 bar
- Correction for length
- Slip correction in mm can be programmed to suit the part.
- Display
- LCD display
- Drive
- electrical
- Electrical connection
- 100 - 240 V AC / 50/60 Hz
- Feeding speed, max.
- 1.5 m/s
- Interface
- USB 2.0
- Keyboard
- Touch display
- Length pre-selection, max.
- 999,999 mm
- Length pre-selection, min.
- 2 mm
- Storage
- Up to 2,000 cutting jobs
Dimensions And Weights
- Depth
- 750 mm
- Depth (inches)
- 29.528 inch
- Height
- 1,800 mm
- Height (inches)
- 70.866 inch
- Net weight
- 65,000 g
- Width
- 1,100 mm
- Width (inches)
- 43.307 inch
Labelling Systems
- Interface
- USB 2.0
- Operating system
- Windows 7, Windows 8, Windows 8.1, Windows 10
- Operation with rechargeable batteries
- No
- Printing method
- Thermotransfer
- Printing speed
- 150 mm/s
- Print quality
- 300 pdi
- System requirements
- PC with operating system Windows 7, 8 or 10
- Voltage supply
- 100…240 V AC
Pw65 Maintenance - Automatic Stripping/Crimping
- Compressed-air connection
- 5.5 bar
- Consumables
- Linked wire-end ferrules
- Crimping
- Trapezoidal
- Crimping length
- 8/10 mm
- Drive
- electrical
- Electrical connection
- 100 - 240 V AC / 50/60 Hz
- Insertion length, min.
- 27 mm
- Pulse time
- approx. 2 s
- Stripping range
- 0.5 - 2.5 mm² (~AWG 20-14)
- Wire end ferrules cross-section, max.
- 2.5 mm²
- Wire end ferrules cross-section, min.
- 0.5 mm²
Technical Data
- Electrical connection
- 100 - 240 V AC / 50/60 Hz
Wpc
- Compressed-air connection
- 5.5 bar
- Display
- 15-inch touchscreen
- Electrical connection
- 100 - 240 V AC / 50/60 Hz
- Note
- Load capacity max. 180 kg, Mobile use, Panel with completed cabling and additional mains plugs and USB connections, pivoting display holder
