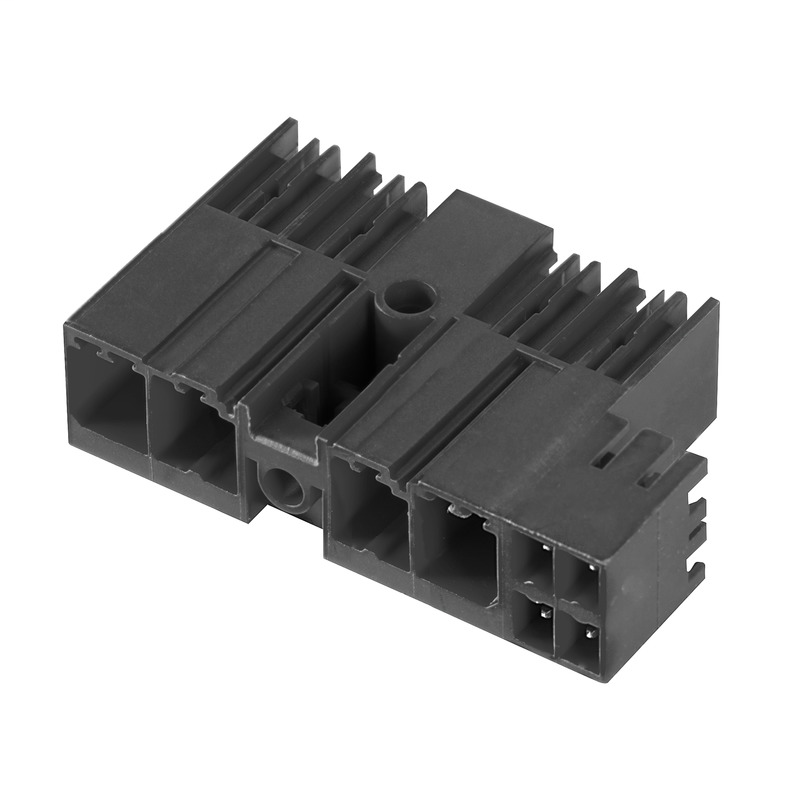

Weidmuller 2626990000

Classifications

• eClass 10.0
  • 27-44-04-02
• eClass 9.0
  • 27-44-04-02
• eClass 9.1
  • 27-44-04-02
• ETIM 6.0
  • EC002637
• ETIM 7.0
  • EC002637

Dimensions And Weights

• Depth
  • 28.3 mm
• Depth (inches)
  • 1.114 inch
• Height of lowest version
  • 11.4 mm
• Net weight
  • 0 g

Material Data

• Colour
  • black
• Colour chart (similar)
  • RAL 9011
• Comparative Tracking Index (CTI)
  • ≥ 500
• Contact material
  • Copper alloy
• Contact surface
  • tinned
• Insulating material
  • PA GF HT [MSL3]
• Insulating material group
  • II
• Insulation strength
  • ≥ 108 Ω
• Layer structure of plug contact
  • 1-3 µm Ni / 4-6 µm Sn matt
• Layer structure of solder connection
  • 1-3 µm Ni / 4-6 µm Sn matt
• Max. relative humidity during storage
  • 80 %
• Moisture Level (MSL)
  • 3
• Operating temperature, max.
  • 130 °C
• Operating temperature, min.
  • -50 °C
• Storage temperature, max.
  • 55 °C
• Storage temperature, min.
  • -25 °C
• Temperature range, installation, max.
  • 130 °C
• Temperature range, installation, min.
  • -25 °C
• UL 94 flammability rating
  • V-0

Notes

• IPC conformity
  • Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
• Notes
  • Technical specifications refer to the power contacts Technical data of signal contacts: 50V / 5A, stripping length 8mm Rated current related to rated cross-section & min. No. of poles. Specifications of diagram: P1=7.62 mm; P2=3.81 mm Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3

Packing

• Packaging
  • Box
• VPE height
  • 0
• VPE length
  • 0
• VPE width
  • 0

Rated Data Acc. To Iec

• Rated current, max. number of poles (Tu=20°C)
  • 41 A
• Rated current, max. number of poles (Tu=40°C)
  • 41 A
• Rated current, min. number of poles (Tu=20°C)
  • 41 A
• Rated current, min. number of poles (Tu=40°C)
  • 41 A
• Rated impulse voltage for surge voltage class/ contamination degree III/3
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree II/2
  • 6 kV
• Rated impulse voltage for surge voltage class/ pollution degree III/2
  • 6 kV
• Rated voltage for surge voltage class / pollution degree II/2
  • 1,000 V
• Rated voltage for surge voltage class / pollution degree III/2
  • 630 V
• Rated voltage for surge voltage class / pollution degree III/3
  • 630 V
• Short-time withstand current resistance
  • 3 x 1s with 420 A
• tested acc. to standard
  • IEC 60664-1, IEC 61984

Rated Data Acc. To Ul 1059

• Clearance distance, min.
  • 6.9 mm
• Creepage distance, min.
  • 9.6 mm
• Rated current (Use group B / UL 1059)
  • 33 A
• Rated current (Use group C / UL 1059)
  • 33 A
• Rated current (Use group D / UL 1059)
  • 5 A
• Rated voltage (Use group B / UL 1059)
  • 300 V
• Rated voltage (Use group C / UL 1059)
  • 300 V
• Rated voltage (Use group D / UL 1059)
  • 600 V

System Specifications

• Can be coded
  • Yes
• L1 in inches
  • 1.2 inch
• L1 in mm
  • 30.48 mm
• Mounting onto the PCB
  • THT/THR solder connection
• Number of poles
  • 4
• Number of solder pins per pole
  • 2
• Pin series quantity
  • 1
• Pitch in inches (P)
  • 0.3 inch
• Pitch in mm (P)
  • 7.62 mm
• Plugging cycles
  • 25
• Plugging force/pole, max.
  • 12 N
• Product family
  • OMNIMATE Power - series BV/SV 7.62HP
• Pulling force/pole, max.
  • 7 N
• Solder eyelet hole diameter (D)
  • 1.4 mm
• Solder eyelet hole diameter tolerance (D)
  • + 0,1 mm
• Solder pin dimensions
  • 0.8 x 1.0 mm
• Solder pin length (l)
  • 2.6 mm
• Solder pin length tolerance
  • +0.1 / -0.3 mm
• Tightening torque for screw flange, max.
  • 0.3 Nm
• Tightening torque for screw flange, min.
  • 0.2 Nm
• Touch-safe protection acc. to DIN VDE 0470
  • IP 20
• Touch-safe protection acc. to DIN VDE 57 106
  • safe to back of hand above the printed circuit board
• Type of connection
  • Board connection
• Volume resistance
  • 2.00 mΩ

Technical Data - Hybrid

• Contact material (Signal)
  • CuMg
• Contact surface (Signal)
  • tinned
• L2 in inch
  • 0.15 inch
• L2 in mm
  • 3.81 mm
• Number of poles (Signal)
  • 4
• Number of rows (Signal)
  • 2
• Number of solder pins per pole (Signal)
  • 1
• PCB hole diameter (Signal)
  • 1.3 mm
• PCB hole diameter tolerance (Signal)
  • ± 0.1 mm
• Pitch in inches (Signal)
  • 0.15 inch
• Pitch in mm (Signal)
  • 3.81 mm
• Rated current (Use group B / CSA) (Signal)
  • 9 A
• Rated current (Use group B / UL 1059) (Signal)
  • 5 A
• Rated current (Use group C / CSA) (Signal)
  • 9 A
• Rated current (Use group C / UL 1059) (Signal)
  • 5 A
• Rated current (Use group D / CSA) (Signal)
  • 9 A
• Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
  • 2.5 kV
• Rated impulse voltage for overvoltage class/pollution severity level III/2 (Signal)
  • 2.5 kV
• Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
  • 2.5 kV
• Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
  • 320 V
• Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
  • 160 V
• Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
  • 160 V
• Rated voltage (Use group B / CSA) (Signal)
  • 300 V
• Rated voltage (Use group B / UL 1059] (Signal)
  • 300 V
• Rated voltage (Use group C / CSA) (Signal)
  • 50 V
• Rated voltage (Use group C / UL 1059] (Signal)
  • 50 V factory wiring
• Rated voltage (Use group D / UL 1059] (Signal)
  • 300 V
• Short-time withstand current resistance (Signal)
  • 3 x 1s with 80 A
• Solder pin dimensions (Signal)
  • 0.8 x 0.8 mm
