Weidmuller 2626660000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

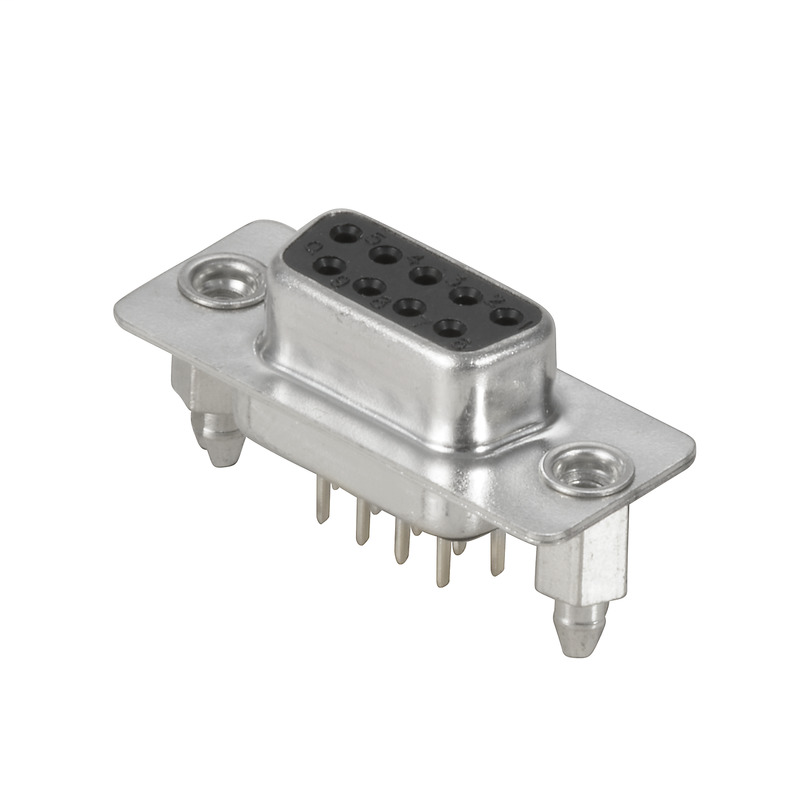

, D-SUB connectors male/fimale, Thread-nut UNC 4-40, Snap-on clip, THT solder connection, 2.77 mm, Number of poles: 9, 180°, Solder pin length (l): 4.6 mm, Gold over nickel, black, Tray (manual assembly)D-SUB F6.1 T09VU 3.2B2 TY BK
Weidmuller 2626660000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-44-04-02
- eClass 9.0
- 27-44-04-02
- eClass 9.1
- 27-44-04-02
- ETIM 6.0
- EC002637
- ETIM 7.0
- EC002637
Dimensions And Weights
- Depth
- 12.55 mm
- Depth (inches)
- 0.494 inch
- Net weight
- 7.344 g
- Width
- 30.81 mm
- Width (inches)
- 1.213 inch
Electrical Properties
- Dielectric strength, contact / contact
- 1000 V AC
- Insulation strength
- 1000 MΩ at 500 V DC
- Rated current
- 3 A
- Rated voltage
- 250 V AC
- Volume resistance
- ≤ 20 mΩ
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Material Data
- Colour
- black
- Colour chart (similar)
- RAL 9011
- Contact base material
- Copper alloy
- Contact surface
- Gold over nickel
- Insulating material
- PBT glass fibre reinforced UL 94 V-0
- Insulation strength
- 1000 MΩ at 500 V DC
- Layer structure of plug contact
- 50- µ" Ni / 3- µ" Au
- Layer structure of solder connection
- 50- µ" Ni / 3- µ" Au
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -55 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -55 °C
- UL 94 flammability rating
- V-0
Packing
- Packaging
- Tray (manual assembly)
- VPE height
- 0 m
- VPE length
- 0 m
- VPE width
- 0 m
System Specifications
- Mounting onto the PCB
- THT solder connection
- Number of poles
- 9
- Outgoing elbow
- 180°
- Pitch in inches (P)
- 0.109 inch
- Pitch in mm (P)
- 2.77 mm
- Plugging cycles
- ≥ 50
- Product family
- OMNIMATE Data - D-SUB connectors
- Shielding material
- Steel
- Shield surface
- tinned
- Side termination, characteristic
- Thread-nut UNC 4-40, Snap-on clip
- Solder eyelet hole diameter (D)
- 1.1 mm
- Solder pin length (l)
- 4.6 mm
- Solder pin length tolerance
- +0,25 / -0,25 mm
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -55 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -55 °C
