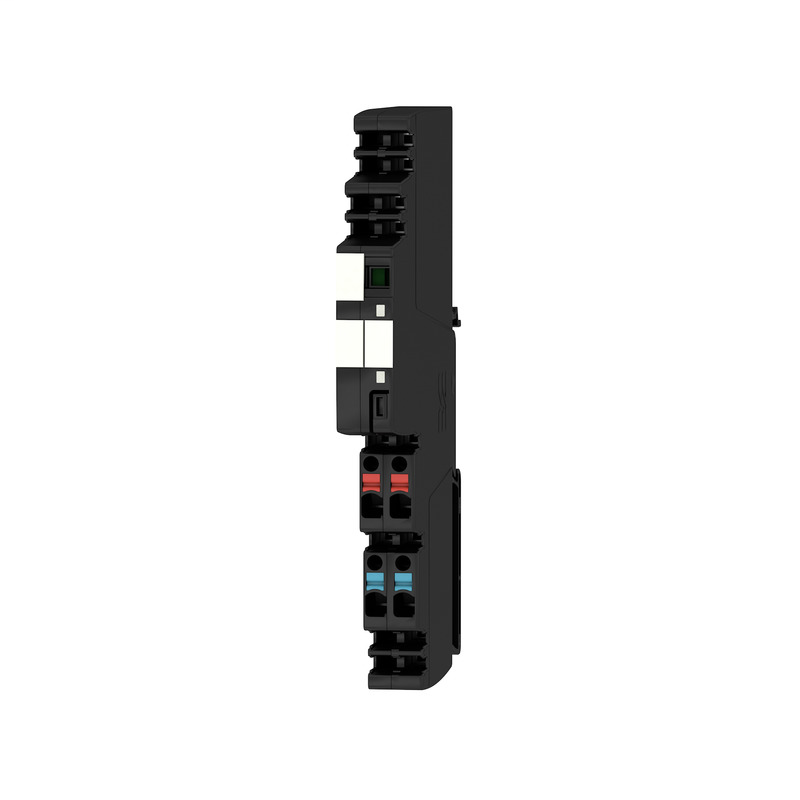

Weidmuller 2624990000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Electronic load monitoringTGD ELM-12
Weidmuller 2624990000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Connection Data (Output)
- Conductor cross-section, flexible , max.
- 2.5 mm²
- Conductor cross-section, flexible , min.
- 0.14 mm²
- Conductor cross-section, rigid , max.
- 2.5 mm²
- Conductor cross-section, rigid , min.
- 0.14 mm²
- Connection system
- PUSH IN
- Number of terminals
- 4 (++ / --)
- Screwdriver blade
- 0.6 x 3.5
Dimensions And Weights
- Depth
- 96.5 mm
- Depth (inches)
- 3.799 inch
- Height
- 125 mm
- Height (inches)
- 4.921 inch
- Net weight
- 60 g
- Width
- 12.2 mm
- Width (inches)
- 0.48 inch
General Data
- Adjustable range
- 4-12 A
- Conformal coating
- No
- Function key
- Activation time < 3s, Reset, ON
- Operating temperature
- -25 °C...70 °C
- Protection degree
- IP20
- Relay to activate the output
- No
- Surge protection input, output, bus
- Suppressor diode
- Surge voltage category
- III
Input
- DC input voltage range
- 18…30 V DC
- Input fuse (internal)
- Yes
- max. admissible residual ripple at the input
- 100 mVpp
- Rated input voltage
- 24 V DC
Insulation Coordination
- Surge voltage category
- III
Output
- adjustable rated current
- Yes
- Capacitive load
- 20,000 µF
- Connection system
- PUSH IN
- Rated current
- 12 A
- Triggering characteristic
- see characteristic curve
Signalling
- LED green
- Operation (failure-free), Early warning: I Out > 90% I Rated (flashing)
- Red LED
- Load monitoring has disconnected, Load monitoring has triggered (flashing), Internal error (rapid flashing)
- Yellow LED
- Address is assigned, Address is being assigned (flashing)
Temperatures
- Operating temperature
- -25 °C...70 °C
- Operating temperature, max.
- 70 °C
- Operating temperature, min.
- -25 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
