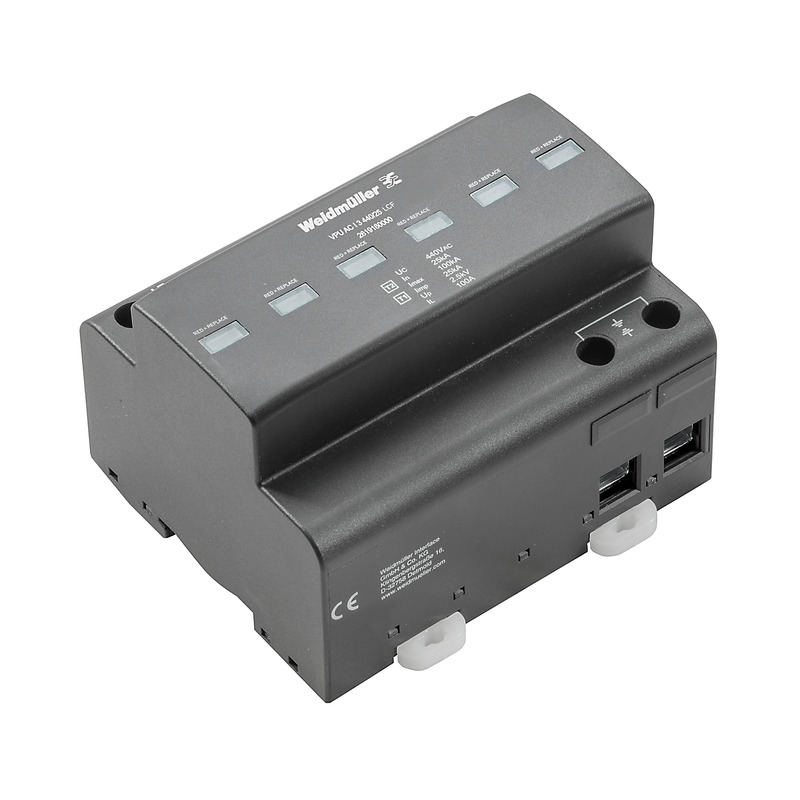

Weidmuller 2619160000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Surge voltage arrester, Low voltage, Surge protection, TN-C, UP(L/N-PE) ≤ 2.5 kVVPU AC I 3 440/25 LCF
Weidmuller 2619160000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CE
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-13-08-05
- eClass 9.0
- 27-13-08-05
- eClass 9.1
- 27-13-08-05
- ETIM 6.0
- EC000941
- ETIM 7.0
- EC000941
- UNSPSC
- 30-21-19-22
Connection Data
- Clamping range, max.
- 35 mm²
- Clamping range, min.
- 6 mm²
- Clamping range, rated connection
- 16 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 35 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 6 mm²
- Connection cross-section, stranded, max.
- 35 mm²
- Connection cross-section, stranded, min.
- 6 mm²
- Stripping length, rated connection
- 13 mm
- Tightening torque, max.
- 3 Nm
- Tightening torque, min.
- 2 Nm
- Type of connection
- Screw connection
- Wire connection cross section, finely stranded, max.
- 35 mm²
- Wire connection cross-section, finely stranded, min.
- 6 mm²
- Wire connection method
- Screw connection
- Wire cross-section, solid, max.
- 35 mm²
- Wire cross-section, solid, min.
- 6 mm²
Dimensions And Weights
- Depth
- 93 mm
- Depth (inches)
- 3.661 inch
- Height
- 99 mm
- Height (inches)
- 3.898 inch
- Net weight
- 25 g
- Width
- 108 mm
- Width (inches)
- 4.252 inch
General Data
- Altitude
- ≤ 2000 m
- Colour
- black
- Design
- Installation housing; 6 TE, Insta IP 20
- Optical function display
- green = OK; red = arrester is defective - replace
- Protection degree
- IP20 in installed state
- Rail
- TS 35
- Segment
- Power distribution
- Suitable for
- Count-in installation (leakage current free)
- UL 94 flammability rating
- V-0
- Version
- Surge protection
Insulation Coordination Acc. To En 50178
- Pollution severity
- 2
- Surge voltage category
- III
Rated Data Iec / En
- Discharge current I
- 25 kA
- Energy coordination (≤10 m)
- Type I, Type II, Type III
- Follow-on current extinguishing capability I
- Not available due for technical reasons
- Frequency range, max.
- 60 Hz
- Frequency range, min.
- 50 Hz
- Fuse
- 250 A gL (if back up fuse > 250 A)
- Leakage current at U
- 5 µA
- Lightning test current I
- 25 kA
- Low voltage network
- TN-C
- Max. continuous voltage, Uc (AC)
- 440 V
- Number of poles
- 3
- Protection level U
- ≤ 2.5 kV
- Rated load current I
- 100 A
- Rated voltage (AC)
- 400 V
- Requirements category acc. to IEC 61643-11
- Type I, Type II
- Requirements class, acc. to EN 61643-11
- T1, T2
- Response time
- ≤ 25 ns
- Short-circuit current rating I
- 50 kA
- Signalling contact
- No
- Standards
- IEC61643-11, EN61643-11, EN 60068-2-27:2009, EN 60068-2-64:2008, EN 60068-2-6:2008
- Suitable for
- Count-in installation (leakage current free)
- Temporary surge voltage (over-voltage) - TOV
- 762 V
- Voltage type
- AC
Temperatures
- Humidity
- 5 - 95% rel. humidity
- Operating temperature
- -40 °C...85 °C
- Operating temperature, max.
- 85 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
