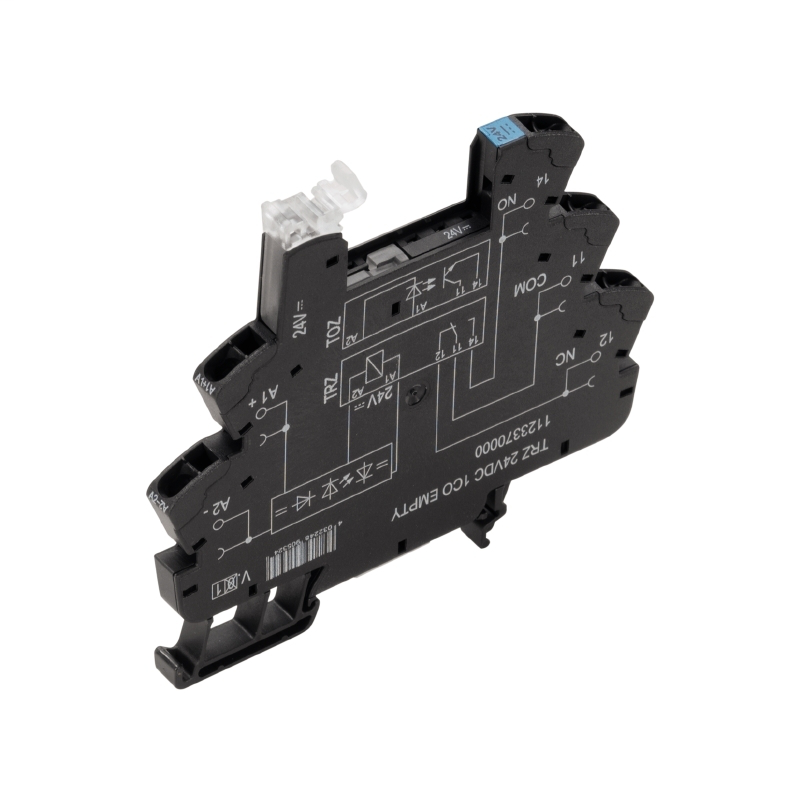

Weidmuller 2618870000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
TERMSERIES, Relay bases, Number of contacts: 1 CO contact, Rated control voltage: 24 V DC ±20 %, Continuous current: 10 A, PUSH IN with actuatorTRP 24VDC 1CO EMPTY
Weidmuller 2618870000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E223759
Classifications
- eClass 10.0
- 27-37-16-03
- eClass 9.0
- 27-37-16-03
- eClass 9.1
- 27-37-16-03
- ETIM 6.0
- EC001456
- ETIM 7.0
- EC001456
Connection Data
- Blade size
- 0.4 x 2.0 mm
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.14 mm²
- Clamping range, rated connection
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.15 mm²
- Stripping length, rated connection
- 8 mm
- Twin wire-end ferrules, max.
- 1 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.15 mm²
- Wire connection method
- PUSH IN with actuator
- Wire cross-section, finely stranded, max. (AWG)
- AWG 14
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire cross-section, solid, min.
- 0.14 mm²
Contact Data
- Contact type
- 1 CO contact
Control Side
- Power rating
- 280 mW
- Rated control voltage
- 24 V DC ±20 %
- Status indicator
- Green LED
Dimensions And Weights
- Depth
- 87.8 mm
- Depth (inches)
- 3.457 inch
- Height
- 89.6 mm
- Height (inches)
- 3.528 inch
- Net weight
- 0 g
- Width
- 6.4 mm
- Width (inches)
- 0.252 inch
Further Details Of Approvals / Standards
- Certificate No. (cURus)
- E223759
General Data
- Colour
- black
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Insulation Coordination
- Dielectric strength to mounting rail
- 4 kVeff / 1 Min.
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 300 V
- Surge voltage category
- III
Load Side
- Continuous current
- 10 A
- Rated switching voltage
- 250 V AC
Rated Data Ul
- Certificate No. (cURus)
- E223759
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature
- -40 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
