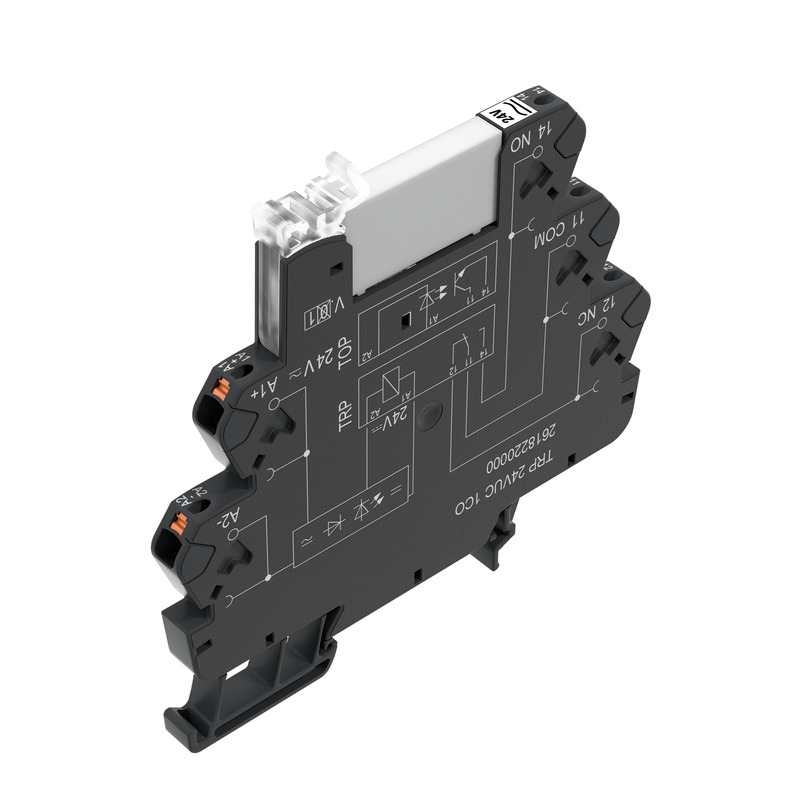

Weidmuller 2618050000

Approvals

• Approvals
  • CULUS, EAC
• UL File Number Search
  • E141197

Classifications

• eClass 10.0
  • 27-37-16-01
• eClass 9.0
  • 27-37-16-01
• eClass 9.1
  • 27-37-16-01
• ETIM 6.0
  • EC001437
• ETIM 7.0
  • EC001437

Connection Data

• Blade size
  • 0.4 x 2.0 mm
• Clamping range, max.
  • 2.5 mm²
• Clamping range, min.
  • 0.14 mm²
• Clamping range, rated connection
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), max.
  • 1.5 mm²
• Conductor cross-section, flexible, AEH (DIN 46228-1), min.
  • 0.15 mm²
• Stripping length, rated connection
  • 8 mm
• Twin wire-end ferrules, max.
  • 1 mm²
• Twin wire-end ferrules, min.
  • 0.5 mm²
• Wire connection cross section AWG, max.
  • AWG 14
• Wire connection cross section AWG, min.
  • AWG 26
• Wire connection cross section, finely stranded, max.
  • 2.5 mm²
• Wire connection cross-section, finely stranded, min.
  • 0.14 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
  • 1.5 mm²
• Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
  • 0.15 mm²
• Wire connection method
  • PUSH IN with actuator
• Wire cross-section, finely stranded, max. (AWG)
  • AWG 14
• Wire cross-section, finely stranded, min. (AWG)
  • AWG 26
• Wire cross-section, solid, max.
  • 2.5 mm²
• Wire cross-section, solid, min.
  • 0.14 mm²

Contact Data

• Contact type
  • 1 CO contact (AgNi)
• Mechanical service life
  • 5 x 106 switching cycles

Dimensions And Weights

• Depth
  • 87.8 mm
• Depth (inches)
  • 3.457 inch
• Height
  • 89.4 mm
• Height (inches)
  • 3.52 inch
• Net weight
  • 29.5 g
• Width
  • 6.4 mm
• Width (inches)
  • 0.252 inch

Further Details Of Approvals / Standards

• Certificate no. (cULus)
  • E141197
• Standards
  • EN 50178, EN 55011, EN 61000-6-1, 2, 4

General Data

• Colour
  • black
• Mechanical switch position indicator
  • No
• Rail
  • TS 35
• Test button
  • No
• UL 94 flammability rating
  • V-0

Input

• Coil voltage of the replacement relay
  • 60 V DC
• Coil voltage of the replacement relay deviating from the rated control voltage
  • Yes
• Power rating
  • 670 mW, 805 mVA
• Protective circuit
  • Rectifier
• Pull-in/drop-out current, typ.
  • 2.4 mA / 0.9 mA AC 1.8 mA / 0.4 mA DC
• Pull-in/drop-out voltage, typ.
  • 164 V / 87 V AC 166 V / 89 V DC
• Rated control voltage
  • 230 V UC ± 10 %
• Rated current AC
  • 3.5 mA
• Rated current DC
  • 2.9 mA
• Status indicator
  • Green LED

Insulation Coordination

• Creepage and clearance distance input – output
  • ≥ 5.5 mm
• Dielectric strength, Input/Output
  • 4 kVeff / 1 Min.
• Dielectric strength of open contact
  • 1 kVeff / 1 min
• Dielectric strength to mounting rail
  • 4 kVeff / 1 Min.
• Impulse withstand voltage
  • 6 kV (1.2/50 µs)
• Pollution severity
  • 2
• Protection degree
  • IP20
• Rated voltage
  • 300 V
• Surge voltage category
  • III

Output

• AC switching capacity (resistive), max.
  • 1500 VA
• Continuous current
  • 6 A
• DC switching capacity (resistive), max.
  • 144 W @ 24 V
• Inrush current
  • 20 A / 20 ms
• Max. switching frequency at rated load
  • 0.1 Hz
• Max. switching voltage, AC
  • 250 V
• Max. switching voltage, DC
  • 250 V
• Min. switching power
  • 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
• Rated switching voltage
  • 250 V AC
• Switch-off delay
  • ≤ 50 ms
• Switch-on delay
  • ≤ 15 ms

Rated Data Ul

• Ambient temperature (operational), max.
  • 60 °C

Ratings Iecex/Atex/Cul

• Certificate no. (cULus)
  • E141197

Temperatures

• Humidity
  • 5-95% relative humidity, Tu = 40°C, without condensation
• Operating temperature
  • -40 °C...60 °C
• Operating temperature, max.
  • 60 °C
• Operating temperature, min.
  • -40 °C
• Storage temperature
  • -40 °C...85 °C
• Storage temperature, max.
  • 85 °C
• Storage temperature, min.
  • -40 °C
