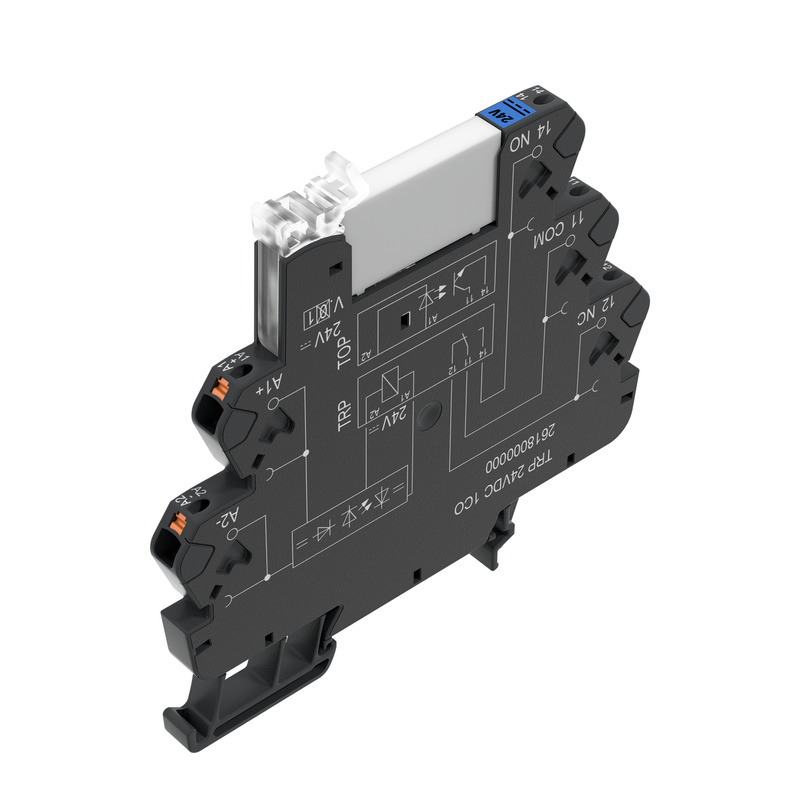

Weidmuller 2618000000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
TERMSERIES, Relay module, Number of contacts: 1 CO contact AgNi, Rated control voltage: 24 V DC ±20 %, Continuous current: 6 A, PUSH IN with actuatorTRP 24VDC 1CO
Weidmuller 2618000000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- CULUS, EAC
- UL File Number Search
- E141197
Classifications
- eClass 10.0
- 27-37-16-01
- eClass 9.0
- 27-37-16-01
- eClass 9.1
- 27-37-16-01
- ETIM 6.0
- EC001437
- ETIM 7.0
- EC001437
Connection Data
- Blade size
- 0.4 x 2.0 mm
- Clamping range, max.
- 2.5 mm²
- Clamping range, min.
- 0.14 mm²
- Clamping range, rated connection
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.15 mm²
- Stripping length, rated connection
- 8 mm
- Twin wire-end ferrules, max.
- 1 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section AWG, min.
- AWG 26
- Wire connection cross section, finely stranded, max.
- 2.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.15 mm²
- Wire connection method
- PUSH IN with actuator
- Wire cross-section, finely stranded, max. (AWG)
- AWG 14
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire cross-section, solid, max.
- 2.5 mm²
- Wire cross-section, solid, min.
- 0.14 mm²
Contact Data
- Contact type
- 1 CO contact (AgNi)
- Mechanical service life
- 5 x 106 switching cycles
Dimensions And Weights
- Depth
- 87.8 mm
- Depth (inches)
- 3.457 inch
- Height
- 89.4 mm
- Height (inches)
- 3.52 inch
- Net weight
- 28.2 g
- Width
- 6.4 mm
- Width (inches)
- 0.252 inch
Further Details Of Approvals / Standards
- Certificate no. (cULus)
- E141197
- Standards
- EN 50178, EN 55011, EN 61000-6-1, 2, 4
General Data
- Colour
- black
- Mechanical switch position indicator
- No
- Rail
- TS 35
- Test button
- No
- UL 94 flammability rating
- V-0
Input
- Coil voltage of the replacement relay
- 24 V DC
- Coil voltage of the replacement relay deviating from the rated control voltage
- No
- Power rating
- 280 mW
- Protective circuit
- Free-wheeling diode, Reverse polarity protection
- Pull-in/drop-out current, typ.
- 7.5 mA / 1 mA DC
- Pull-in/drop-out voltage, typ.
- 16 V / 3 V DC
- Rated control voltage
- 24 V DC ± 20 %
- Rated current DC
- 11.5 mA
- Status indicator
- Green LED
Insulation Coordination
- Creepage and clearance distance input – output
- ≥ 5.5 mm
- Dielectric strength, Input/Output
- 4 kVeff / 1 Min.
- Dielectric strength of open contact
- 1 kVeff / 1 min
- Dielectric strength to mounting rail
- 4 kVeff / 1 Min.
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
- Pollution severity
- 2
- Protection degree
- IP20
- Rated voltage
- 300 V
- Surge voltage category
- III
Output
- AC switching capacity (resistive), max.
- 1500 VA
- Continuous current
- 6 A
- DC switching capacity (resistive), max.
- 144 W @ 24 V
- Inrush current
- 20 A / 20 ms
- Max. switching frequency at rated load
- 0.1 Hz
- Max. switching voltage, AC
- 250 V
- Max. switching voltage, DC
- 250 V
- Min. switching power
- 1 mA @ 24 V, 10 mA @ 12 V, 100 mA @ 5 V
- Rated switching voltage
- 250 V AC
- Switch-off delay
- ≤ 16 ms
- Switch-on delay
- ≤ 6 ms
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature
- -40 °C...60 °C
- Operating temperature, max.
- 60 °C
- Operating temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
- Storage temperature, max.
- 85 °C
- Storage temperature, min.
- -40 °C
