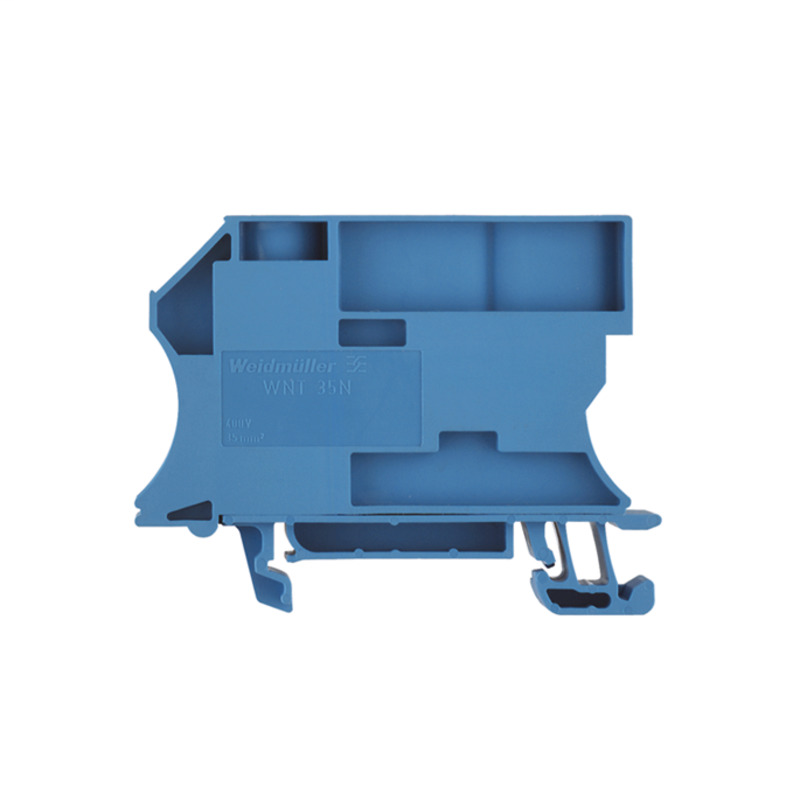

Weidmuller 1718550000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Neutral conductor disconnect terminal, Busbar connection, 35 mm², 400 V, 125 A, sliding, blueWNT 35N 10X3
Weidmuller 1718550000 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Explosion-tested version
- No
- Installation advice
- Busbar
- Number of similar terminals
- 1
- Open sides
- closed
- Type of mounting
- Snap-on
Approvals
- Approvals
- BBJ, CE, EAC
- ROHS
- Conform
Classifications
- eClass 10.0
- 27-14-11-26
- eClass 9.0
- 27-14-11-26
- eClass 9.1
- 27-14-11-26
- ETIM 6.0
- EC000902
- ETIM 7.0
- EC000902
- UNSPSC
- 30-21-18-11
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 35 mm²
Conductors For Clamping (Rated Connection)
- Blade size
- 6.5 x 1.2 mm
- Clamping range, max.
- 50 mm²
- Clamping range, min.
- 2.5 mm²
- Clamping screw
- M 6
- Connection cross-section, stranded, max.
- 50 mm²
- Connection cross-section, stranded, min.
- 2.5 mm²
- Connection direction
- on side
- Gauge to IEC 60947-1
- B8
- Number of connections
- 1
- Stripping length
- 18 mm
- Tightening torque, max.
- 5 Nm
- Tightening torque, min.
- 4 Nm
- Type of connection
- Busbar connection
- Wire connection cross section, finely stranded, max.
- 35 mm²
- Wire connection cross-section, finely stranded, min.
- 2.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
- 35 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 2.5 mm²
- Wire connection cross-section, solid core, max.
- 16 mm²
- Wire connection cross-section, solid core, min.
- 2.5 mm²
Dimensions And Weights
- Depth
- 50.5 mm
- Depth (inches)
- 1.988 inch
- Depth including DIN rail
- 51 mm
- Height
- 66 mm
- Height (inches)
- 2.598 inch
- Net weight
- 63.9 g
- Width
- 16 mm
- Width (inches)
- 0.63 inch
Disconnect Terminals
- Cross-disconnect
- without
- For N-busbar
- 10 x 3 mm
- Slitting
- sliding
Material Data
- Colour
- blue
- Material
- Wemid
- UL 94 flammability rating
- V-0
Pe Rating Data
- PEN function
- No
Rating Data
- Current at maximum wires
- 140 A
- Pollution severity
- 3
- Power loss in accordance with IEC 60947-7-x
- 4 W
- Rated cross-section
- 35 mm²
- Rated current
- 125 A
- Rated impulse withstand voltage
- 6 kV
- Rated voltage
- 400 V
- Standards
- In accordance with IEC 60947-7-1
- Volume resistance according to IEC 60947-7-x
- 0.26 mΩ
Safety Note
- Safety notice
- Safety Information
System Specifications
- End cover plate required
- No
- Levels cross-connected internally
- No
- N-function
- Yes
- Number of clamping points per level
- 1
- Number of levels
- 1
- Number of potentials
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- PE function
- No
- PEN function
- No
- Rail
- TS 35
- Version
- Screw connection, with busbar connection 10x3, in closed state
Temperatures
- Continuous operating temp., max.
- 120 °C
- Continuous operating temp., min.
- -50 °C
- Storage temperature
- 10 °C...40 °C
- Storage temperature, max.
- 40 °C
- Storage temperature, min.
- 10 °C
