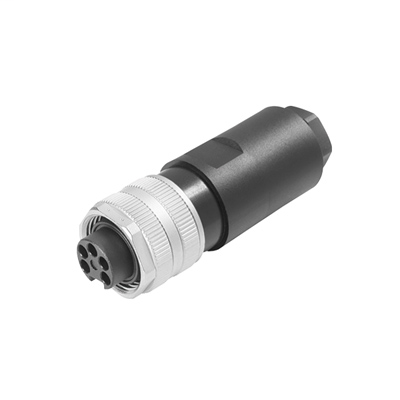

Weidmuller 1292010000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Weidmuller 1292010000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- Approvals
- cURus, EAC
- ROHS
- Conform
- UL File Number Search
- E307231
Classifications
- eClass 10.0
- 27-44-01-02
- eClass 9.0
- 27-44-01-02
- eClass 9.1
- 27-44-01-03
- ETIM 6.0
- EC002062
- ETIM 7.0
- EC002635
Dimensions And Weights
- Net weight
- 54 g
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Standards
- Certificate No. (cURus)
- E307231
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 10 mm
- Cable diameter, min.
- 8 mm
- Cable glands
- PG 11
- Coding
- none
- Connection cross-section, max.
- 1.5 mm²
- Connection cross-section, min.
- 0.14 mm²
- Contact surface
- Gold-plated
- Housing main material
- PBT
- Insulation strength
- 108 Ω
- Number of poles
- 5
- Plugging cycles
- ≥ 50
- Pollution severity
- 3
- Protection degree
- IP67
- Rated current
- 9 A
- Rated voltage
- 250 V
- Shield connection
- No
- Temperature range of housing
- -40 … +85 ° C
- Threaded ring material
- Diecast zinc
- Type of connection
- Screw connection
Temperatures
- Operating temperature, max.
- 85 C°
- Operating temperature, min.
- -20 °C
