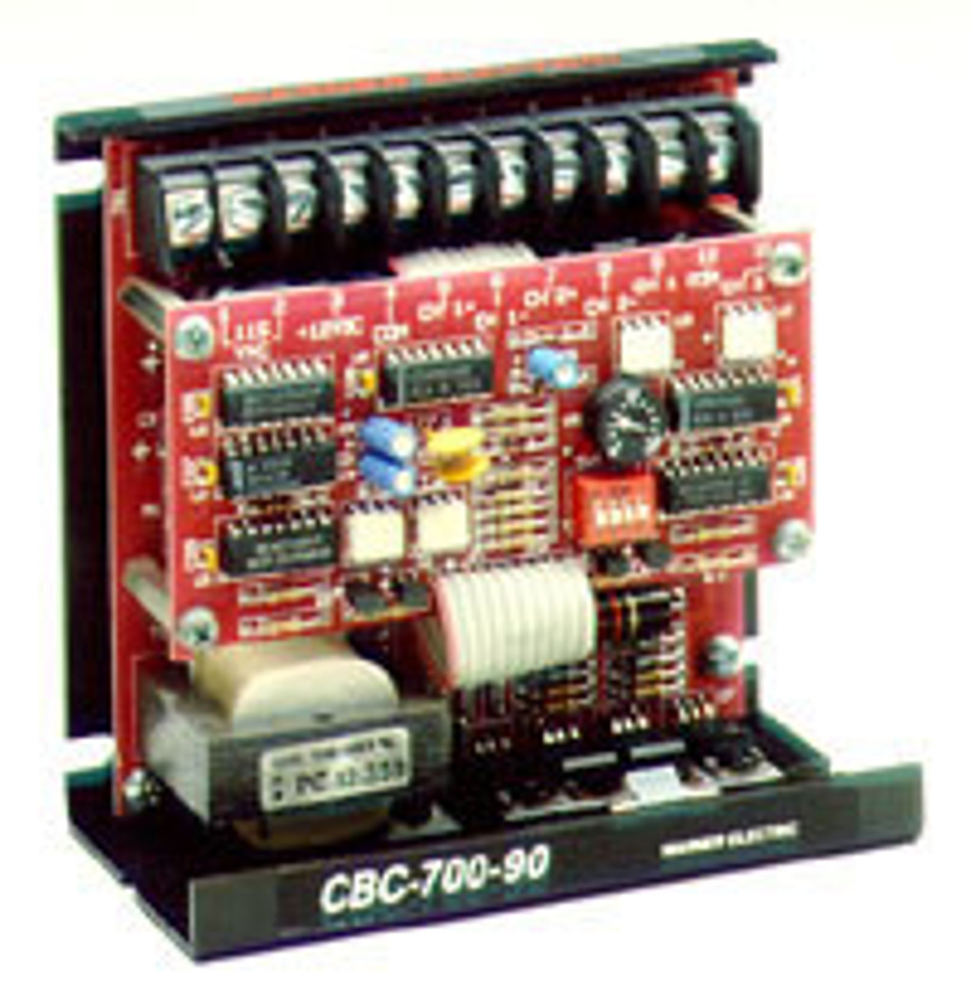

Warner Electric 6042-448-002
Description
Warner Electric 6042-448-002 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient Operating Temperature Range [Imperial]
- 0° to 104°F (-18° to +60°C)
- Auxilliary Supply
- 12 VDC, 250 mA max.
- Circuit Protection
- 5A Slo-Blo (5 x 20 mm)
- Customer Supplied Switching Options
- Transistor or Relay D.C.
- Input
- 24-28 VAC, 50/60 Hz
- Inputs
- Two-optically isolated (10-30 VDC)
- Model
- CBC-700-24
- Mounts
- Compact, flexible mounting
- Number of Channels
- 2
- OEX Pulse Duration
- Adjustable through logic board dip switches (see service manual)
- Output
- Overexcitation = 105 VDC
- Output Channel
- Dual
- Output Current (per channel alternately)
- 3.5 Amps
- Output Voltage Steady State
- 24 VDC
- Overexcitation
- Yes
- Product Series
- CBC
- Rectification Circuits
- No
- Suppression Circuits
- No
- UL Listed
- No
