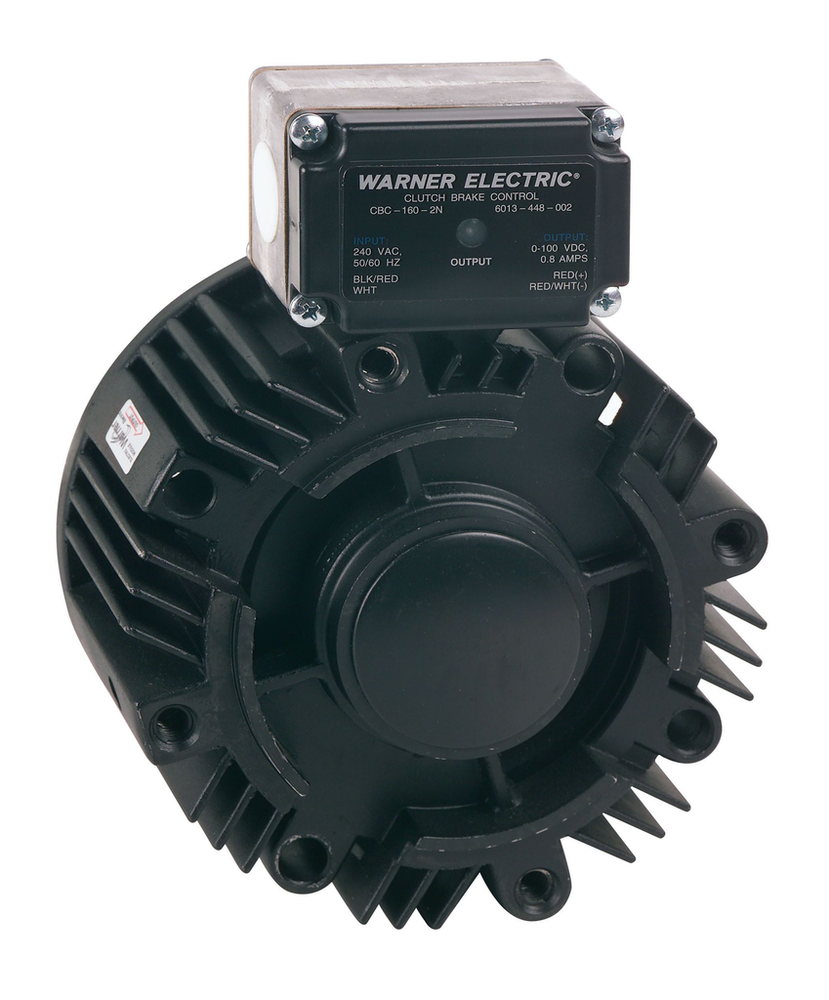

Warner Electric 6013-448-002
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The CBC-160 series clutch/brake controls provide a single 90 VDC adjustable output for use with any clutch/brake unit. The adjustable output will provide consistent and repeatable release for Warner Electric’s 90 VDC permanent magnet electrically released brakes. These On - Off Controls (6013-448-002) Product Series Feature 1 channels, and an input of 220/240 VAC, 60 Hz, 1 Phase, 100 VA max.CBC-160-2, 1 Channels, 220/240 VAC, 60 Hz, 1 Phase, 100 VA max
Warner Electric 6013-448-002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient Operating Temperature Range [Imperial]
- 0° to 122°F (-18° to 50°C)
- Auxilliary Supply
- null
- Customer Supplied Switching Options
- Relay A.C.
- Input
- 220/240 VAC, 60 Hz, 1 Phase, 100 VA max
- Inputs
- 220 VAC
- Max Cycle Rate
- Limited by the clutch or brake, variable with application
- Model
- CBC-160-2
- Mounts
- Replaces the cover of the module conduit box
- Number of Channels
- 1
- Output
- Single Channel, 30 - 100 VDC half-wave rectified nominal, .8 Amps max
- Output Channel
- Single
- Overexcitation
- No
- Product Series
- CBC
- Rectification Circuits
- Yes
- Solid State Switching (max leakage current <2mA)
- Not Applicable
- Status Indicator
- No
- Suppression Circuits
- Yes
- Switching
- Accomplished through motor starter or on A.C. line using relay or triac
- UL Listed
- Yes
