Description

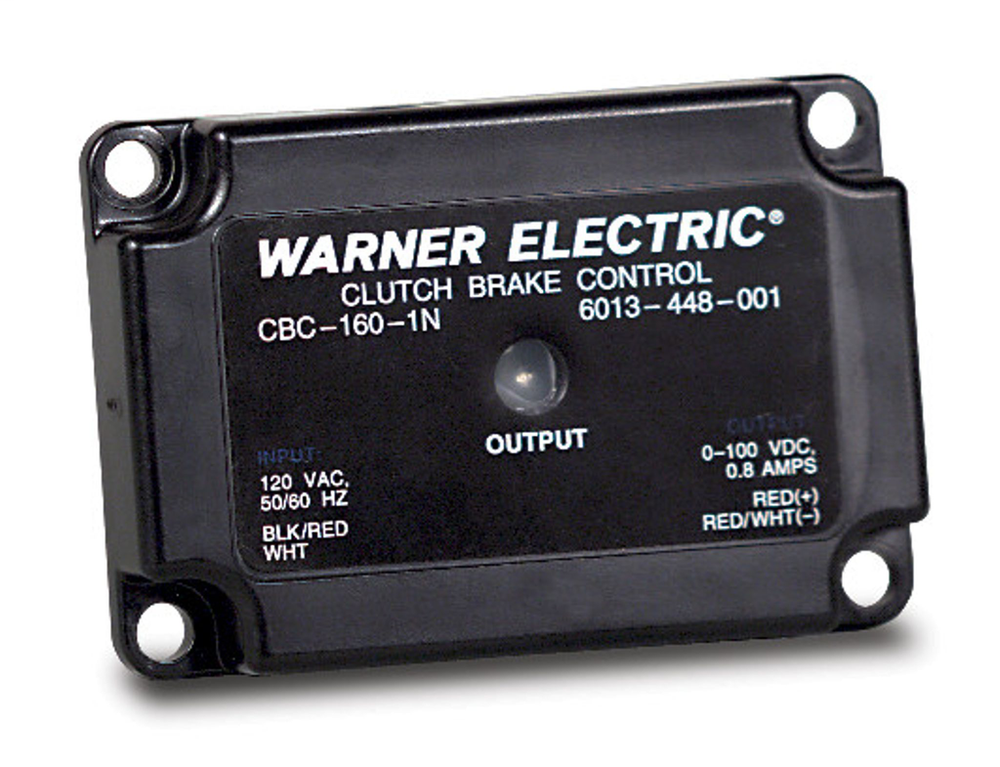

Warner Electric 6013-448-001 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient Operating Temperature Range [Imperial]
- 0° to 122°F (-18° to 50°C)
- Auxilliary Supply
- null
- Customer Supplied Switching Options
- Relay A.C.
- Input
- 120 VAC, 50/60 Hz
- Inputs
- 120 VAC
- Max Cycle Rate
- Limited by the clutch or brake, variable with application
- Model
- CBC-160-1
- Mounts
- Replaces the cover of the module conduit box
- Number of Channels
- 1
- Output
- Single Channel, 30 - 100 VDC half-wave rectified nominal, .8 Amps max
- Output Channel
- Single
- Overexcitation
- No
- Product Series
- CBC
- Rectification Circuits
- Yes
- Solid State Switching (max leakage current <2mA)
- Not Applicable
- Status Indicator
- Yes, Red LED indicates power to the brake.
- Suppression Circuits
- Yes
- Switching
- Accomplished through motor starter or on A.C. line using relay or triac
- UL Listed
- Yes
