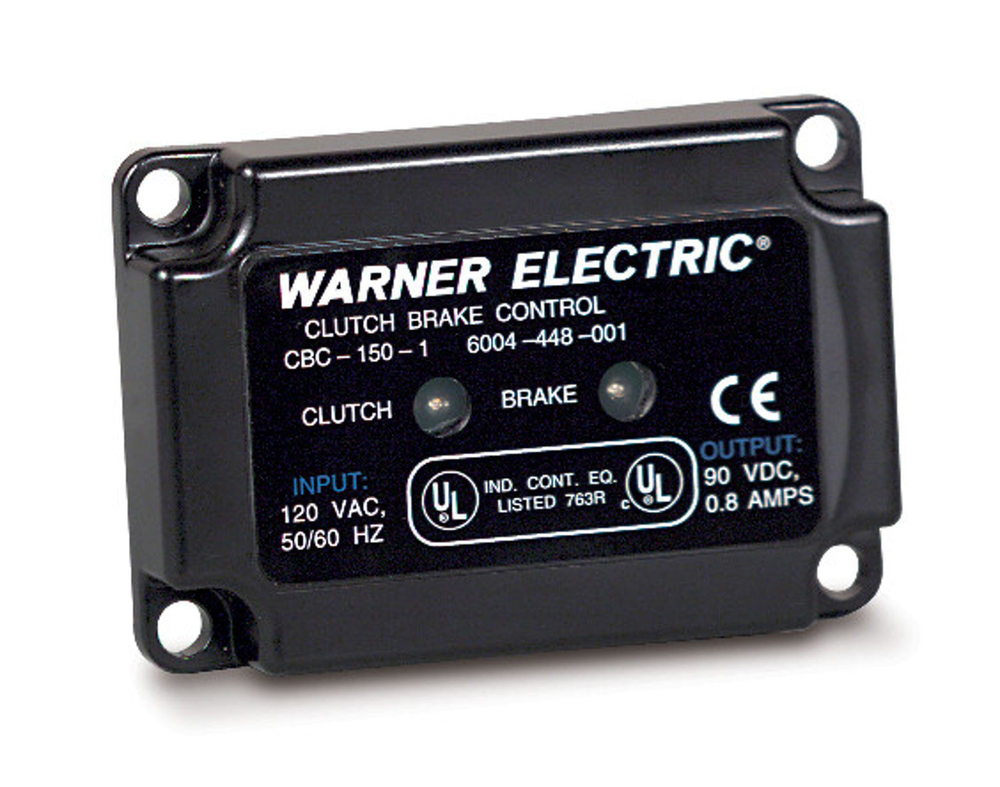

Warner Electric 6004-448-002
Description
Warner Electric 6004-448-002 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient Operating Temperature Range [Imperial]
- -20° to 113°F (-20° to 45°C)
- Auxilliary Supply
- null
- Customer Supplied Switching Options
- Relay A.C.
- Electromechanical Switching
- 240 VAC, 1 Amp min.
- Input
- 220/240 VAC, 50/60 Hz
- Inputs
- 220 VAC Only
- Max Cycle Rate
- Limited by the clutch or brake, variable with application
- Model
- CBC-150-2
- Mounts
- Replaces the cover of the module conduit box
- Number of Channels
- 2
- Output
- 90 VDC half waveDual .8 Amp
- Output Channel
- Dual
- Overexcitation
- No
- Product Series
- CBC
- Rectification Circuits
- Yes Dual
- Solid State Switching (max leakage current <2mA)
- 280 VAC,2 Amp min.
- Status Indicator
- No
- Suppression Circuits
- Yes Dual
- Switching
- SPDT
- UL Listed
- Yes
