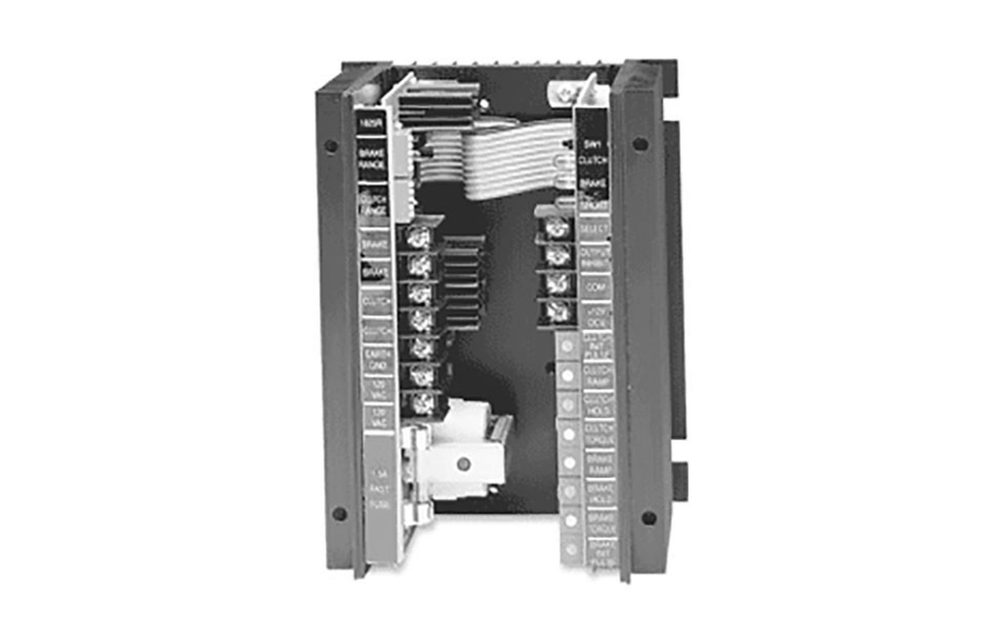

Warner Electric 1825-448-001
Description
Warner Electric 1825-448-001 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient Operating Temperature Range [Imperial]
- 0° to 122°F (-18° to 50°C)
- Auxilliary Supply
- 12 VDC 250 mA
- Circuit Protection
- Input Fused 1.5 Amp, 250 V Fast-Blo clutch and brake outputs are short circuit protected
- Customer Supplied Switching Options
- Transistor or Relay D.C.
- Input
- 120 VAC, 50/60 Hz, 100 VA max.
- Model
- CBC-1825R
- Mounts
- Panel Mounted
- Number of Channels
- 2
- Output
- Current driven PWM, compatible with 90 VDC clutch/brake (switch selectable current output)
- Output Channel
- Dual
- Overexcitation
- No
- Product Series
- CBC
- Rectification Circuits
- null
- Status Indicator
- Clutch and brake LEDs indicate output is energized. Short circuit LED indicates a fault
- Suppression Circuits
- No
- Switching
- Contact rating: 15 mA @ 15 V, open collector NPN 2mA maximum allowable leakage current and 2 V maximum saturation voltage
- UL Listed
- No
