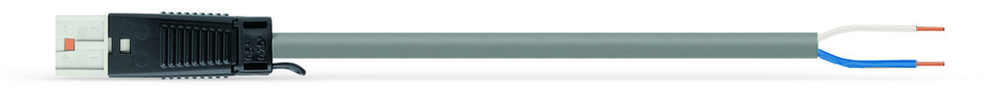

WAGO 894-8992/223-307
Description
WAGO 894-8992/223-307 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Commercial Data
- Country of origin
- PL
- Customs tariff number
- 85444290900
- GTIN
- 4055143803113
- Packaging type
- Unpacked
Connection 1
- Conductor diameter
- 0.8 mm
- Connection type
- Plug - free end
- Pole number
- 2
- Sheathed cable diameter
- 5 … 7 mm
- Strip length
- 9 mm / 0.35 inches
- Strip length (outer insulation)
- 23 mm
Environmental Requirements
- Continuous operating temperature
- -35 … +85 °C
- Note on continuous operating temperature
- Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C
- Processing temperature
- -5 … +40 °C
General
- Note on contact resistance
- Approx. 3 mΩ contact resistance
Material Data
- Color
- Gray
- Connector color
- Light gray
- Contact material
- Copper alloy; surface-treated
- Contact plating
- Tin
- Copper weight of the pipe
- 0.01 kg/m
- Fire class per EN 50575
- Dca
- Fire load
- 3.317 MJ
- Halogen-free
- Yes
- Insulation material
- Polyamide (PA66)
- Note (material data)
- Printing color of sheathed cable
- Black
- Rubber cable
- No
- Sheathed cable color
- Gray
- Sheath material
- Halogen-free
- Silicon-free
- Yes
- Strain relief color
- Black
- Weight
- 110.350 g
Mechanical Data
- Cable type
- J-Y(ST)Y…LG 1x2x0.8
- Coding
- F
- Connection type
- Plug - free end
- Marking
- 1+ 2-
- Mating force of a plug-in connection
- Approx. 10 … 15 N
- Number of mating cycles
- 200
- Potential marking
- 1+ 2-
- Protection type
- IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)
- Retention force of a plug-in connection
- When locked: > 80N
- Technology
- KNX
- Type of pre-assembled cable
- Connecting cable
- Unmating force of a plug-in connection
- Unlocked: approx. 15 … 20 N
- Variable coding
- No
Notes
- Note
- Cables with a different fire class can be found in the eShop.
Physical Data
- Height
- 11.1 mm / 0.437 inches
- Total length
- 3 m
- Width
- 14.1 mm / 0.555 inches
Plug-In Connection
- Locking of plug-in connection
- null
- Mismating protection
- Yes
- Note on mismating protection
- All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
Ratings Per Iec/En
- Legend (ratings)
- (III / 3) ≙ Overvoltage category III / Pollution degree 3
- Nominal voltage (III/3)
- 50 V
- Rated current
- 3 A
- Rated impulse voltage (III/3)
- 0.8 kV
- Ratings per
- IEC/EN 60664-1
Specifications
- Product Group Code
- 0020
