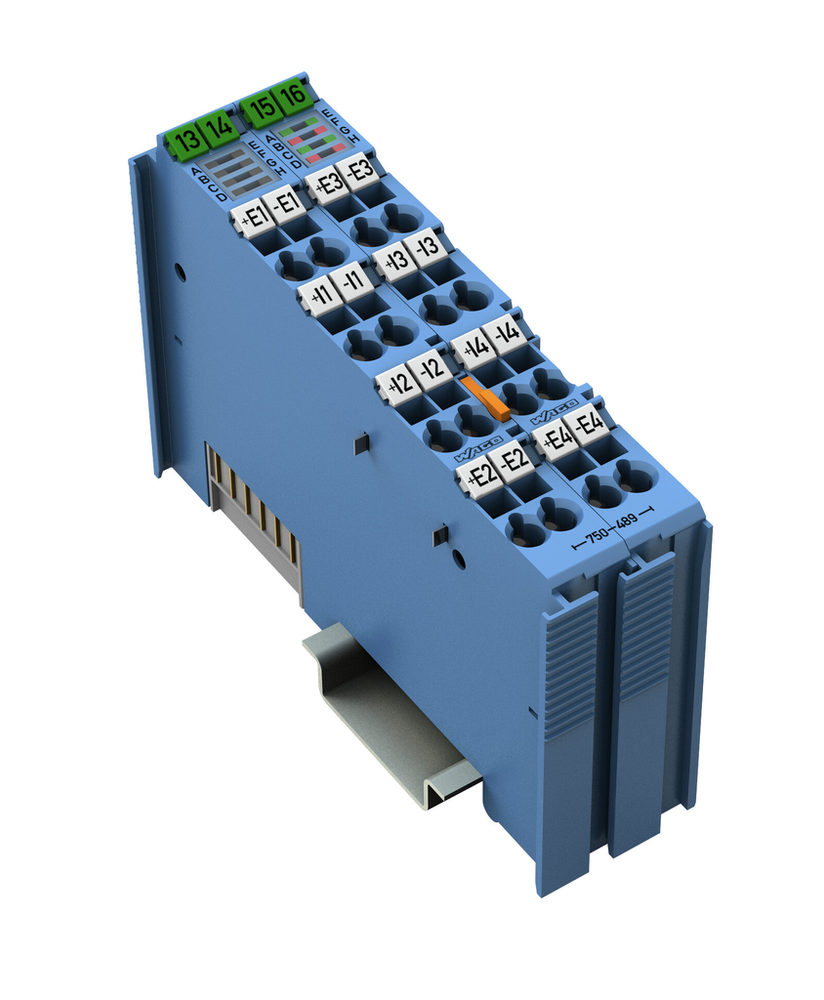

WAGO 750-489

Commercial Data

• Country of origin
  • DE
• Customs tariff number
  • 85389099990
• GTIN
  • 4055143948029
• Packaging type
  • Box

Connection Data

• Connection technology: inputs/outputs
  • 16 x CAGE CLAMP®
• Connection type 1
  • Inputs/outputs
• Fine-stranded conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor
  • 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length
  • 8 … 9 mm / 0.31 … 0.35 inches

Environmental Requirements

• Ambient temperature (operation)
  • 0 … +55 °C
• Ambient temperature (storage)
  • -25 … +85 °C
• EMC emission of interference
  • Per EN 61000-6-3, marine applications
• EMC immunity to interference
  • Per EN 61000-6-2, marine applications
• Exposure to pollutants
  • Per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position
  • Horizontal (standing/lying); vertical
• Operating altitude
  • 0 … 2000 m / 0 … 6562 ft
• Pollution degree
  • 2 per IEC 61131-2
• Protection type
  • IP20
• Relative humidity (without condensation)
  • 95 %
• Shock resistance
  • 15g per IEC 60068-2-27
• Vibration resistance
  • 4g per IEC 60068-2-6

Explosion Protection

• Ex standard
  • EN IEC 60079-0, -7, -11
• Reactances Ex ia I
  • Lo = 2.57 H; Co = 1000 µF
• Reactances Ex ia IIA
  • Lo = 1.57 H; Co = 1000 μF
• Reactances Ex ia IIB
  • Lo = 0.78 H; Co = 1000 µF
• Reactances Ex ia IIC
  • Lo = 0.19 H; Co = 100 µF
• Reactances (note)
  • Reactances, if the internal inductance Li or capacitance Ci (without cable) of the connected device is ≤1 % of the specified values.
• Safety-relevant data (circuit)
  • Uo = 4 V; Io = 13.46 mA; Po = 13.46 mW; linear characteristic curve

Material Data

• Conformity marking
  • CE
• Fire load
  • 2.036 MJ
• Housing material
  • Polycarbonate; polyamide 6.6
• Weight
  • 99.300 g

Mechanical Data

• Mounting type
  • DIN-35 rail

Notes

• Note
  • The analog input module must only be operated via 24 VDC Ex i!General information (e.g., installation regulations) on explosion protection is available in the WAGO I/O System 750 manuals!

Physical Data

• Depth
  • 67.8 mm / 2.669 inches
• Depth from upper-edge of DIN-rail
  • 60.6 mm / 2.386 inches
• Height
  • 100 mm / 3.937 inches
• Width
  • 24 mm / 0.945 inches

Specifications

• Product Group Code
  • 0015

Technical Data

• Cold junction compensation
  • Integrated
• Configuration options
  • WAGO-I/O-CHECK || CODESYS Library || e!COCKPIT
• Conversion time
  • ≥10 ms/2 wires (per channel)*; ≥20 ms/3 wires, 4 wires (per channel)*; *for RTD/R; TC/U conversion time depends on module setting
• Current consumption (5 V system supply)
  • 60 mA
• Current consumption, field supply (module with no external load)
  • 120 mA
• Data width
  • 4 x 16-bit data; 4 x 8-bit control/status (optional)
• Indicators
  • LED (A, C, E, G) green: Function AI 1 … AI 4; LED (B, D, F, H) red: Error AI 1 … AI 4
• Intrinsic safety Ex i
  • Yes
• Isolation
  • Per EN/IEC 60079-11: 300 VAC system/supply; per EN/UL 61010-2-201: 1200 VDC system/supply/channel
• Marking
  • ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
• Measurement error (25 °C)
  • In delivery state: ±0.2 % of the upper-range value (value achieved during calibration in operating environment 0 ≤ TA ≤ 55 °C); After user calibration: ±0.05 % of the upper-range value (only valid in the thermally stable operating state)
• Measurement range
  • Resistive temperature devices: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Ni1000-TK5000; Resistors: 250 Ω, 500 Ω, 1 kΩ, 2 kΩ, 4 kΩ, PTC; Potentiometer setting: 0 … 100 %; Thermocouples: Type B (+250 … +1,820 °C); Type C (0 … +2,315 °C); Type E (-200 … +1,000 °C); Type J (-210 … +1,200 °C); Type K (-200 … +1,372 °C); Type N (-200 … +1,300 °C); Type R, S (-50 … +1,768 °C); Type T (-200 … +400 °C); mV sensors: ±30 mV; ±60 mV; ±120 mV; ±250 mV; ±500 mV; ±1,000 mV; ±2,000 mV; Thermistor: PTC; Resistor bridges (strain gauges): Uref: 2.4 V; Ud: ±15 mV, ±30 mV, ±60 mV
• Number of analog inputs
  • 4
• Number of incoming power jumper contacts
  • 2
• Number of outgoing power jumper contacts
  • 2
• Power loss Pl
  • 1.6 W
• Resolution (over entire range)
  • 0.1 K of full scale value; 0.01 K of full scale value (restricted to -50 °C … +150 °C)
• Sensor connection
  • 4 x (2-wire); RTD/R: 3-wire; 4-wire
• Signal type
  • Potentiometer positions || Thermocouple || Resistive temperature device || Resistors || MV encoder
• Signal type (configurable)
  • Yes
• Supply voltage (field)
  • 24 VDC; (Ex i power supply: UO = max. 27.3 V); via power jumper contacts (power supply via blade contact; transmission via spring contact)
• Supply voltage (system)
  • 5 VDC; via data contacts
• Temperature coefficient
  • ±0.001 %/K of the upper-range value
• Total number of channels (module)
  • 4
