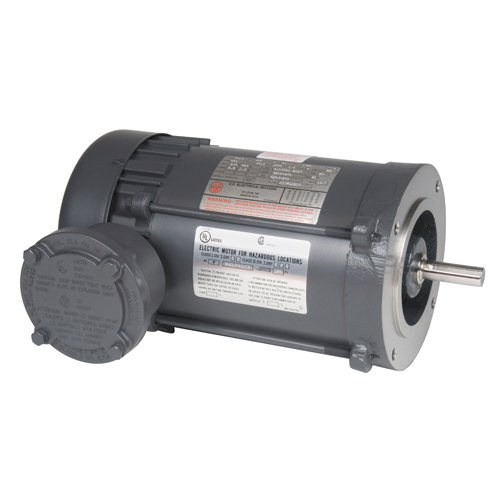

US Motors XS12CA2JCR
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Nidec Motor Corporation can be counted on to deliver top-performing fractional HP motors, which have a continuous rating of less than one horsepower. Whether you need a fractional horsepower motor for a commercial, industrial or HVACR application, we offer a U.S. MOTORS® brand motor suited to your needs. From specially designed and off-the-shelf fractional HP motors through large motors that exceed NEMA Premium®† efficiency standards, our products drive your business. Time is money...and you can't afford to waste it. As a trusted name in the motor industry, Nidec Motor Corporation can help you save both time and money with its efficient and reliable fractional HP motors. Odds are that we have the right fractional horsepower motor to suit your purpose. If not, our engineering teams can custom-design the perfect motor for your specifications. Keep your plant running or your products moving with our innovative and reliable U.S. MOTORS brand motors.1/2 HP,1725 RPM,XS12CA2JCR,115/208-230 V,60,56C
US Motors XS12CA2JCR is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amps @ Voltage
- 9.8/4.9-4.9
- Base RPM
- 1725 RPM
- Bearing Type
- 6203,6205
- Capacitor
- 473,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Size
- 56C
- Frequency Rating
- 60 Hz
- Full Load Amps
- 9.8/4.9-4.9
- Full Load Current
- 9.8/4.9-4.9 A
- Full Load Efficiency
- 62.9 %
- Full Load Torque
- 24.38
- Harmonization Code
- 8501.40.3040
- HP
- 1/2 HP
- Insulation Class
- B
- kW
- 0.373 kW
- Model
- CH63ABK1031015B
- Model Number
- CH63ABK1031015B
- Motor Phase
- 1 ph
- Motor Poles
- 4 P
- Mounting Type
- C-FACE
- NEMA / IEC Frame Size
- 56C
- Overall Length (C-Dimension)
- 13.7
- Service Factor
- 1
- Supply Voltage
- 115/208-230 V
- Synchronous RPM
- 1800 rpm
- Thermal Protection
- AUTOMATIC RESET
- Volts @ Frequency
- 115/208-230 V & 60
- Weight
- 32 LB
