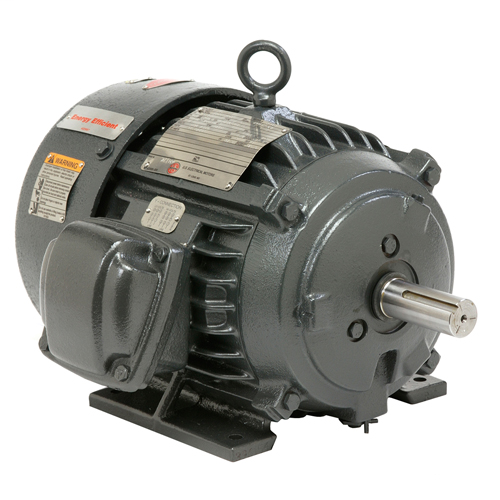

US Motors X60P2B
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
Nidec Motor Corporation’s U.S. MOTORS® brand hazardous location motors are designed for use on pumps, compressors, fans, conveyors and tools for hazardous location applications. These motors are built to contain explosions inside the motor casing and prevent ignition outside the motor by containing sparks, flashing and explosions. Our hazardous location motors are ideal for applications typically found in oil and gas, industrial paint and coating and grain processing operations. U.S. MOTORS brand hazardous location motors meet industry expectations for service standards and quality. Our three-phase motors include NEMA Premium®† efficiency, a 1.0 or 1.15 service factor (as applicable) and meet other NEMA standard requirements. We know your company takes health and safety seriously, and our hazardous location motors conform to industry regulations to help keep working conditions safe. Our engineering teams design innovative and efficient hazardous location motors and can also specifically customize solutions to fit your hazardous location needs in the event one of our stock motors doesn’t quite meet your unique specifications.60 HP,1785 RPM,X60P2B,230/460 V,60,364T
US Motors X60P2B is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amps @ Voltage
- 136/68
- Base RPM
- 1785 RPM
- Bearing Type
- 6212-J/C3,6313-J/C3
- Capacitor
- N\A,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Material
- Cast Iron
- Frame Size
- 364T
- Frequency Rating
- 60 Hz
- Full Load Amps
- 136/68
- Full Load Current
- 136/68 A
- Full Load Efficiency
- 95.0 %
- Full Load Torque
- 176.6
- Harmonization Code
- 8501.52.8000
- HP
- 60 HP
- Insulation Class
- F
- kW
- 44.76 kW
- Model
- CV13
- Model Number
- CV13
- Motor Phase
- 3 ph
- Motor Poles
- 4 P
- Mounting Type
- HORZ-FOOTED
- NEMA Design Class
- B
- NEMA / IEC Frame Size
- 364T
- Overall Length (C-Dimension)
- 32.2
- Service Factor
- 1
- Standards Met
- EE,NEMA PREMIUM
- Supply Voltage
- 230/460 V
- Synchronous RPM
- 1800 rpm
- Temperature Code
- T3B
- Volts @ Frequency
- 230/460 V & 60
- Weight
- 810 LB
