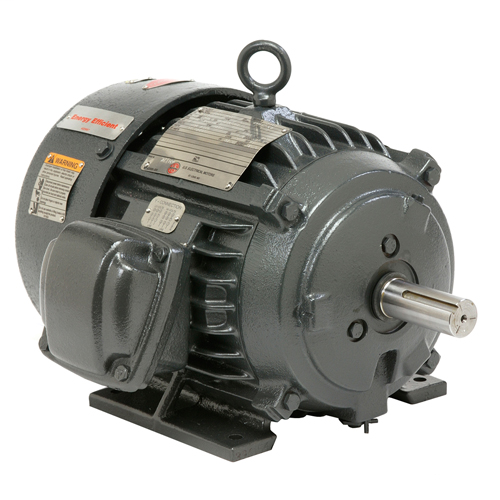

US Motors X60P1BS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
US Motors X60P1BS is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amps @ Voltage
- 136/68
- Base RPM
- 3570 RPM
- Bearing Type
- 6212-J/C3,6212-J/C3
- Capacitor
- N\A,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Material
- Cast Iron
- Frame Size
- 364TS
- Frequency Rating
- 60 Hz
- Full Load Amps
- 136/68
- Full Load Current
- 136/68 A
- Full Load Efficiency
- 93.6 %
- Full Load Torque
- 88.3
- Harmonization Code
- 8501.52.8000
- HP
- 60 HP
- Insulation Class
- F
- kW
- 44.76 kW
- Model
- CV09
- Model Number
- CV09
- Motor Phase
- 3 ph
- Motor Poles
- 2 P
- Mounting Type
- HORZ-FOOTED
- NEMA Design Class
- B
- NEMA / IEC Frame Size
- 364TS
- Overall Length (C-Dimension)
- 30.1
- Service Factor
- 1
- Standards Met
- EE,NEMA PREMIUM
- Supply Voltage
- 230/460 V
- Synchronous RPM
- 3600 rpm
- Temperature Code
- T3C
- Volts @ Frequency
- 230/460 V & 60
- Weight
- 750 LB
Williams Automation sells US Motors parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
