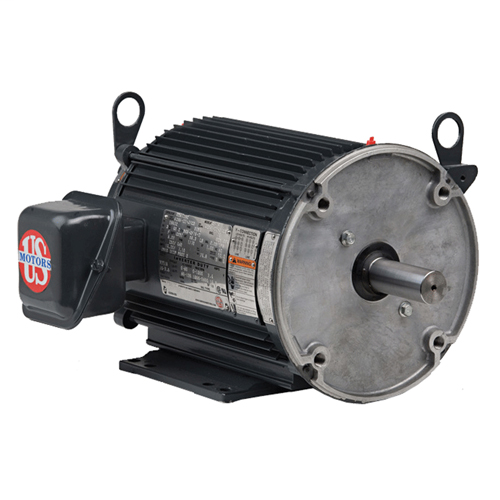

US Motors UN5T2GC
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
When it comes to motors for use in your farm applications, there is only one name you need to know. Our U.S. MOTORS® brand motors are built to meet your performance, efficiency and longevity needs. We create innovative products that provide solutions for those who work in farms and agriculture. Nidec Motor Corporation also manufactures one of the broadest selections of farm duty motors in the agriculture industry within the U.S. MOTORS line, for use in virtually any agricultural application. It is our dedication to the industry that keeps our motors at the top of product quality and performance that will continue to keep your farm running for years to come.5 HP,1770 RPM,UN5T2GC,575 V,60,184TC
US Motors UN5T2GC is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Amps @ Voltage
- 5.6
- Base RPM
- 1770 RPM
- Bearing Type
- 6206-2Z-J/C3,6206-2Z-J/C3
- Capacitor
- N\A,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TENV
- Frame Size
- 184TC
- Frequency Rating
- 60 Hz
- Full Load Amps
- 5.6
- Full Load Current
- 5.6 A
- Full Load Efficiency
- 90.2 %
- Full Load Torque
- 14.8
- Harmonization Code
- 8501.52.4000
- HP
- 5 HP
- Insulation Class
- F
- kW
- 3.73 kW
- Model
- CF76
- Model Number
- CF76
- Motor Phase
- 3 ph
- Motor Poles
- 4 P
- Mounting Type
- HORZ-FOOTED
- NEMA Design Class
- A
- NEMA / IEC Frame Size
- 184TC
- Overall Length (C-Dimension)
- 16.7
- Service Factor
- 1
- Standards Met
- EE,NEMA PREMIUM
- Supply Voltage
- 575 V
- Synchronous RPM
- 1800 rpm
- Volts @ Frequency
- 575 V & 60
- Weight
- 83 LB
