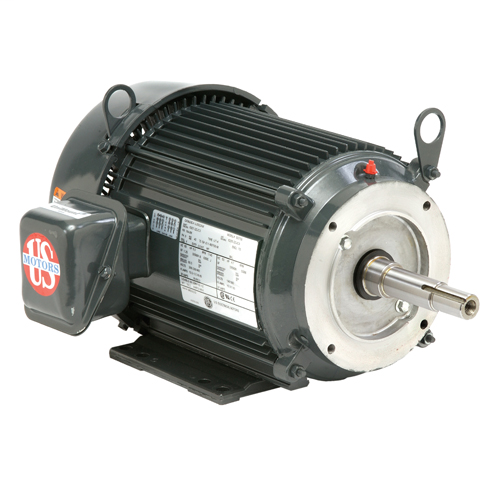

US Motors UJ20P1DM
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
For the specific requirements of centrifugal pumps where the pump impeller is mounted directly on the motor shaft, U.S. MOTORS ® close coulpled pump motors are available with JM, JP, or Westcoast shaft extensions.20 HP,3550 & 2930 RPM,UJ20P1DM,208-230/460 & 190/380 V,60 & 50,256JM
US Motors UJ20P1DM is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- 2nd voltage
- 190/380 V
- Amps @ Voltage
- 51-46/23 & 56/28.2
- Base RPM
- 3550 & 2930 RPM
- Bearing Type
- 6207-2Z-J/C3,6310-2Z-J/C3
- Capacitor
- N\A,0
- Country of Origin
- Mexico
- Duty / Condition Type
- CONT
- Enclosure Type
- TEFC
- Frame Size
- 256JM
- Frequency Rating
- 60 & 50 Hz
- Full Load Amps
- 51-46/23
- Full Load Current
- 51-46/23 A
- Full Load Efficiency
- 91.7 %
- Full Load Torque
- 29.6
- Harmonization Code
- 8501.52.4000
- HP
- 20 HP
- Insulation Class
- F
- kW
- 14.92 kW
- Model
- FK50
- Model Number
- FK50
- Motor Phase
- 3 ph
- Motor Poles
- 2 P
- Mounting Type
- HORZ-FOOTED
- NEMA Design Class
- A
- NEMA / IEC Frame Size
- 256JM
- Overall Length (C-Dimension)
- 27.1
- Service Factor
- 1.25
- Standards Met
- EE,NEMA PREMIUM
- Supply Voltage
- 208-230/460 & 190/380 V
- Synchronous RPM
- 3600 rpm
- Type
- Close Coupled Pump Motor
- Volts @ Frequency
- 208-230/460 & 190/380 V & 60 & 50
- Weight
- 230 LB
