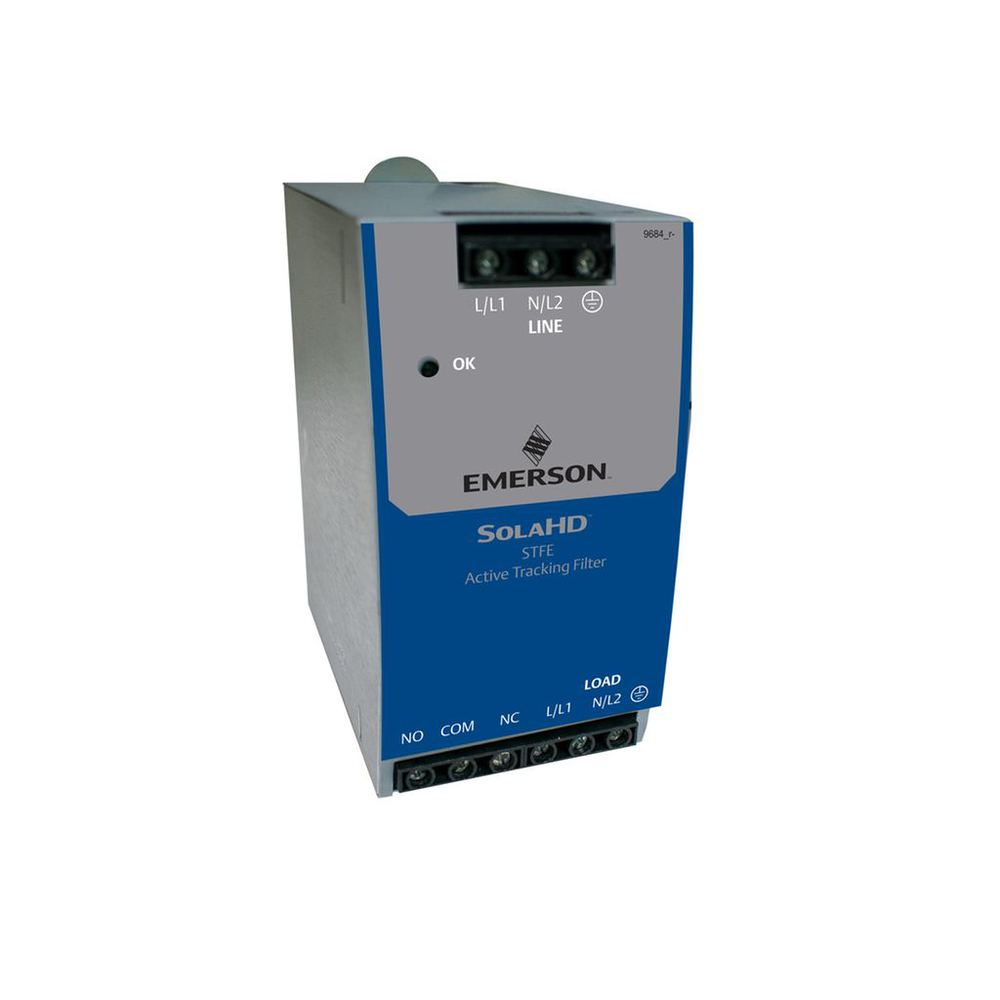

SolaHD STFE03024L
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
STFE Elite Series combines sinewave tracking technology with surge protection to protect against the full spectrum of voltage transients and surges. These DIN rail mounted devices protect your equipment by continuously tracking AC power input and responding to high voltage transients and high frequency noise. They are available as hardwired, single phase units in a wide range of amperage ratings and designed for years of trouble free operation.SolaHD™ STFE Elite Series Tracking Filter with Surge Protection - PN STFE03024L
SolaHD STFE03024L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Frequency Response: Common (F-R) 5 MHz to 50 MHz
- 60 dB Max
- Frequency Response: Normal (F-R) 100 kHz to 50 MHz
- 90 dB Max
- Hertz
- 47-63 Hz
- Load Surge Current Rating: 10 msec
- 5 x Nominal
- Load Surge Current Rating: 10 sec
- 2 x Nominal
- Load Surge Current Rating: 1 sec
- 3 x Nominal
- Operating Temperature
- -40°C to +50°C
- Peak Surge Current Capability: Line to Ground
- 6,500 Amps
- Peak Surge Current Capability: Line to Neutral
- 13,000 Amps
- Peak Surge Current Capability: Neutral to Ground
- 6,500 Amps
- Peak Surge Current Capability: Per Phase
- 19,500 Amps
- Single-Phase 120 and 240 Vac Model Amperage
- 3.0, 5.0, 10.0, 20.0
- Transient Reduction Typical Category A Ringwave
- < 60 V Peak
- Transient Reduction Typical Category B Ringwave
- < 100 V Peak UL 1449
